Microstrip coupler
Short Description:
A passive device that divides one input signal into two outputs with unequal energy; It can be used to monitor and control the output power and output spectrum of transmitters, and can also be used as a power meter in conjunction with detectors and level indicators.
Product Detail
Product Tags
| Product Type | Operating Frequency Band |
VSVR | Coupling degree | Main line loss | Isolation | Impedance | Connector |

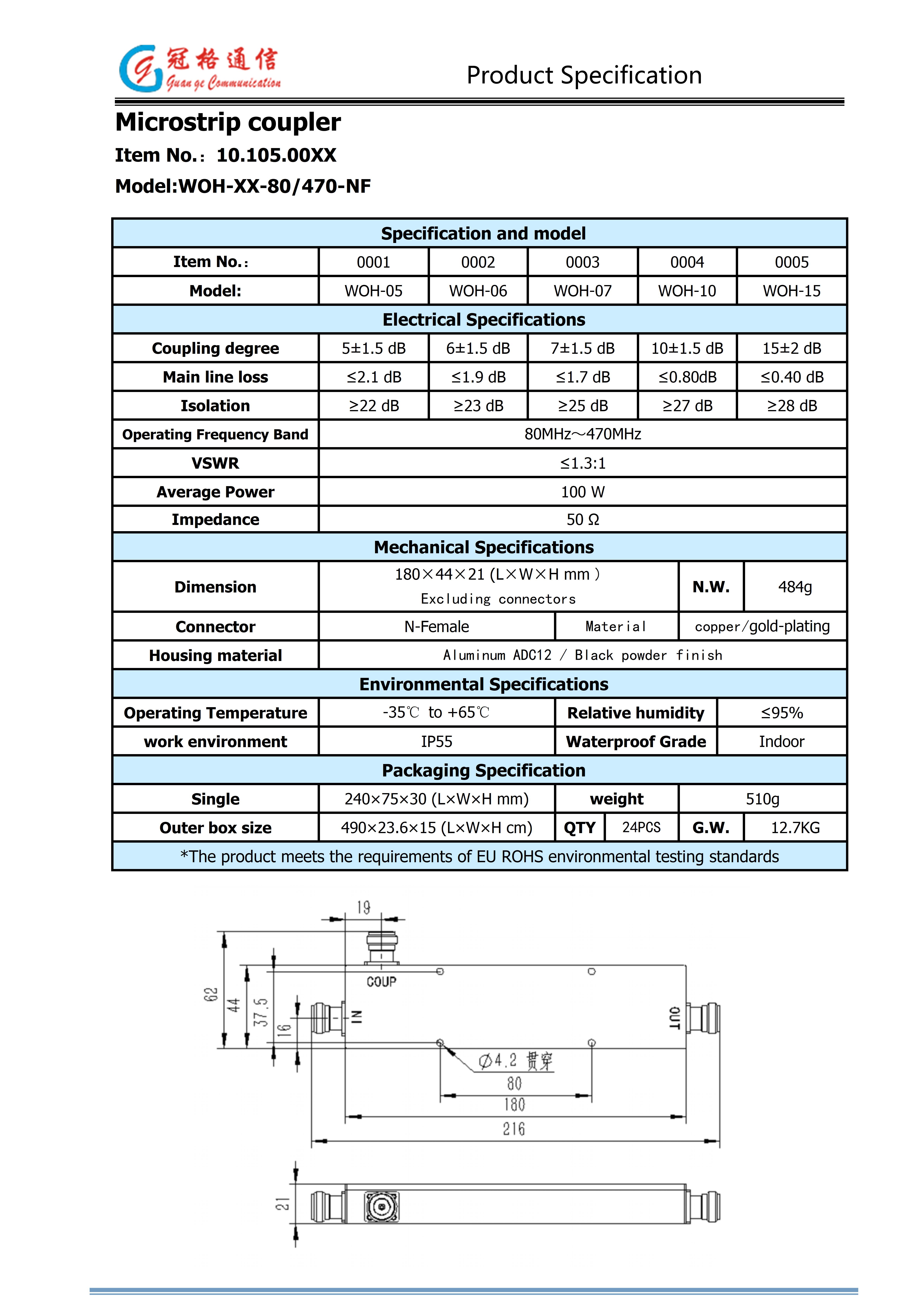

| WOH-XX-80/470-NF | 80MHz～470MHz | ≤1.3:1 | 5±1.5dB/6±1.5 dB 7±1.5dB/10±1.5 dB 15±2 dB |
≤2.1dB ≤1.9dB ≤1.7dB ≤0.80dB ≤0.40dB |
≥22dB ≥23dB ≥25dB ≥27dB ≥28dB | 50Ω | N-Female |

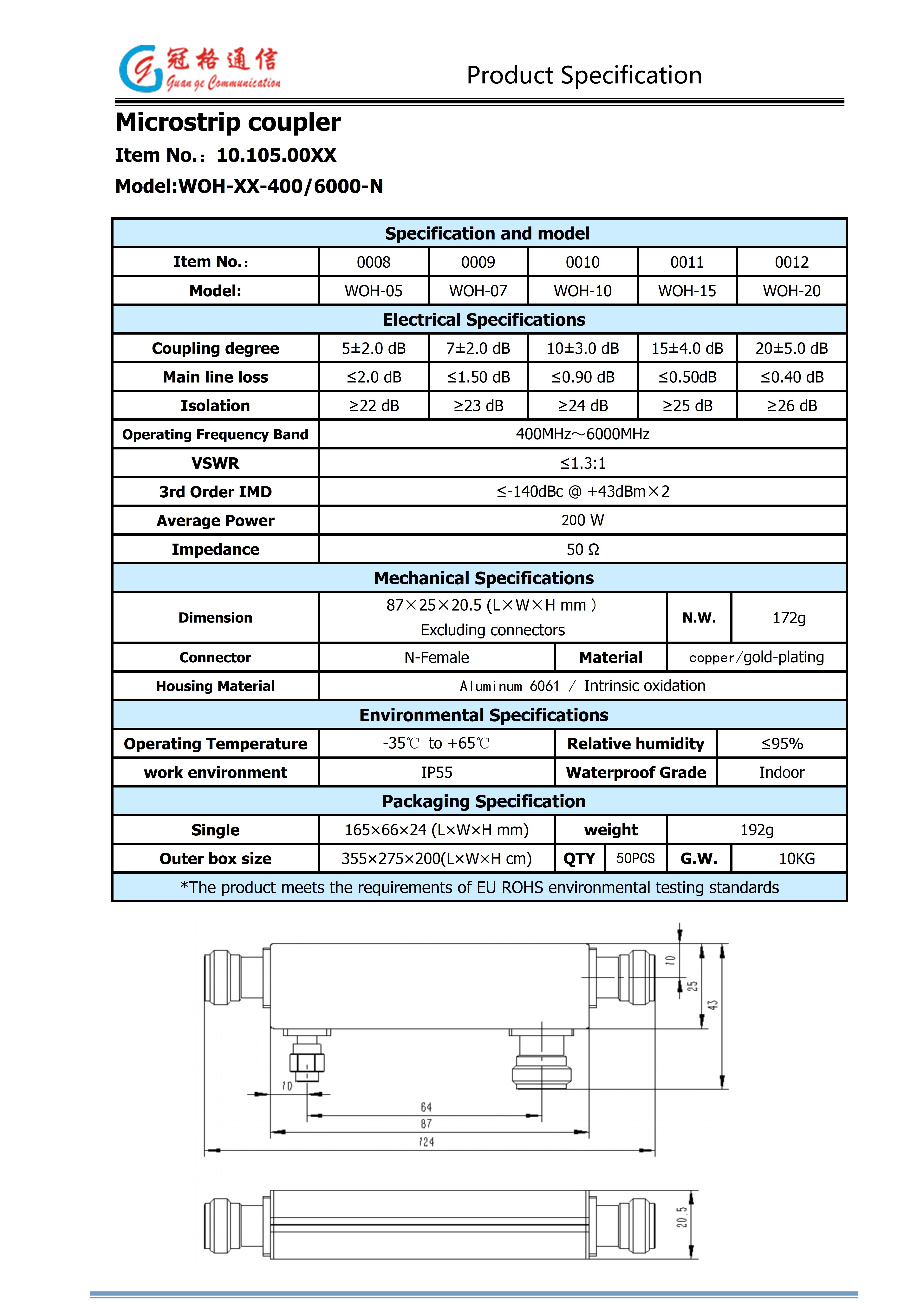

| WOH-XX-400/6000-N | 400MHz～6000MHz | ≤1.3:1 | 5±2 dB/7±2 dB 10±2 dB/15±2 dB 20±2 dB |
≤2.0dB ≤1.5dB ≤0.9dB ≤0.5dB ≤0.40dB |
≥22dB ≥23dB ≥24dB ≥25dB ≥26dB | 50Ω | N-Female |
