Lightning Arrester
Short Description:
An electrical appliance used to protect electrical equipment from high transient overvoltage hazards and to limit the duration and amplitude of the continuous current. This term includes any external clearances necessary for the normal functioning of the electrical appliance during operation and installation, regardless of whether it is an integral component or not.Lightning arresters are sometimes referred to as overvoltage protectors or surge dividers
Product Detail
Product Tags
| Product Type | Operating Frequency Band |
VSVR | Insertion Loss | Average Power |
Impedance | Connector |

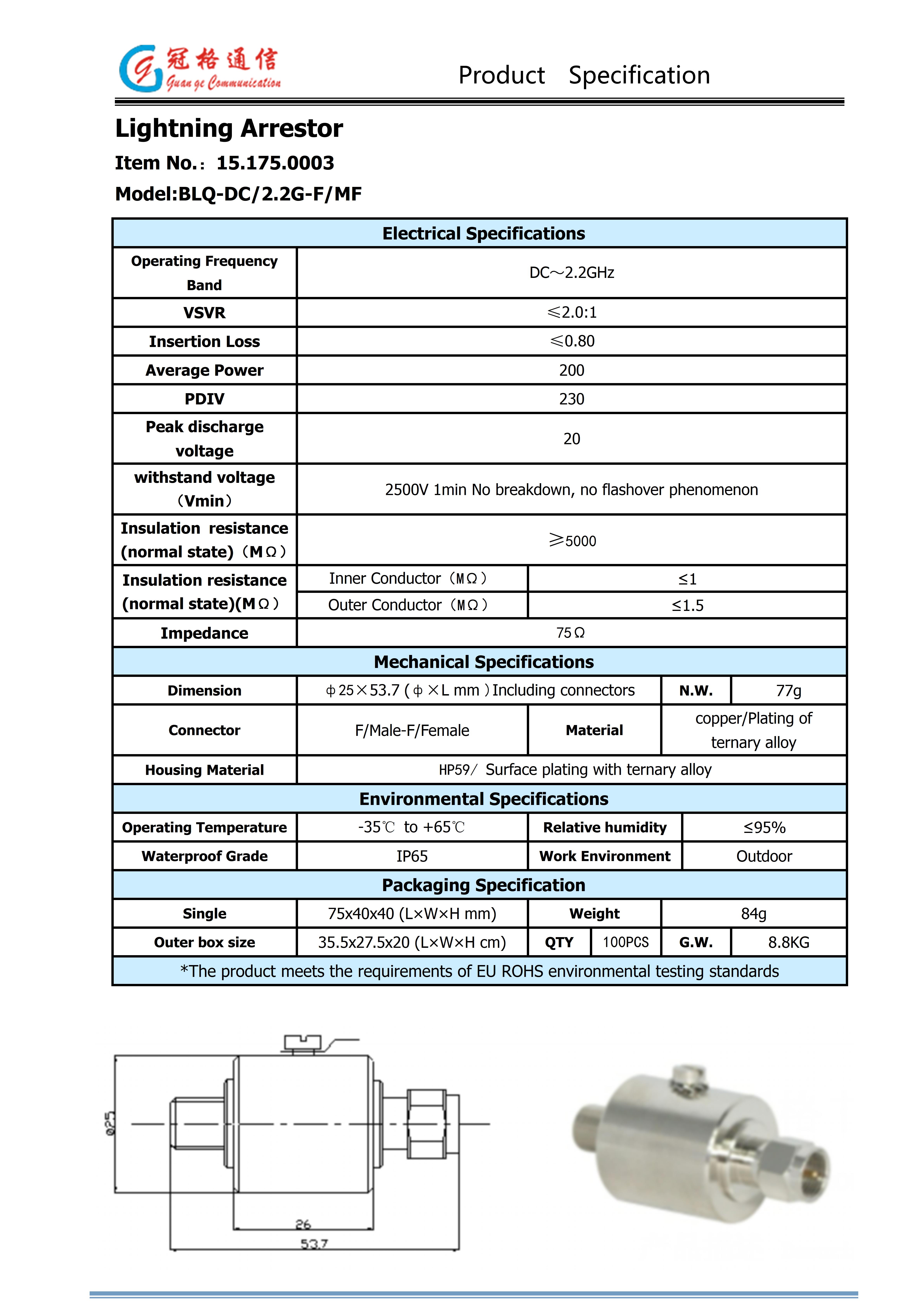

| BLQ-DC/2.2G-F/MF | DC～2.2GHz | ≤2.0:1 | ≤0.80 | 200W | 75 Ω | F/Male-F/Female |

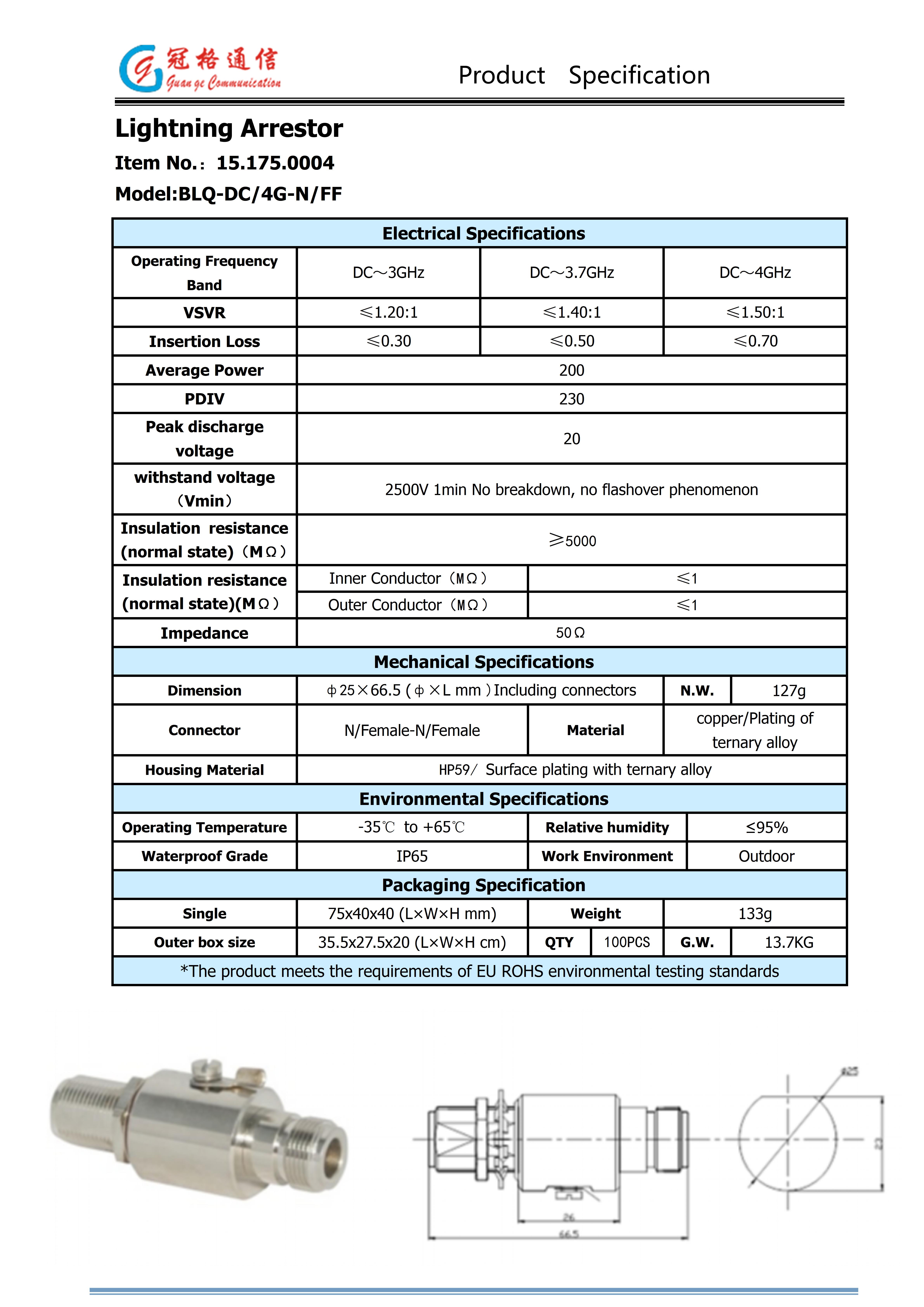

| BLQ-DC/4G-N/FF | DC～3GHz DC～3.7GHz DC～4GHz |
≤1.20:1 ≤1.40:1 ≤1.50:1 | ≤0.30 ≤0.50 ≤0.70 |
200W | 50 Ω | N/Female-N/Female |

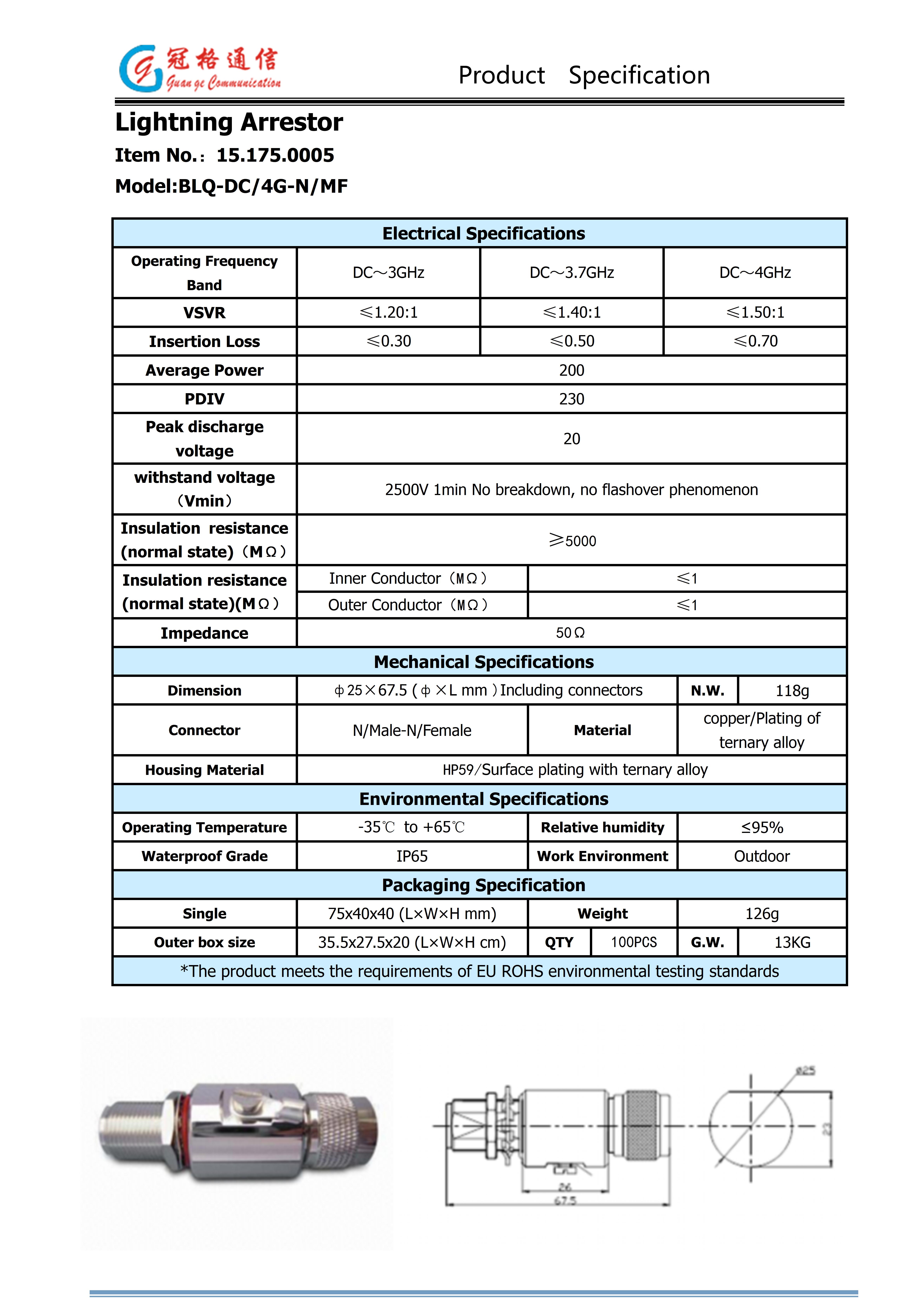

| BLQ-DC/4G-N/MF | DC～3GHz DC～3.7GHz DC～4GHz |
≤1.20:1 ≤1.40:1 ≤1.50:1 | ≤0.30 ≤0.50 ≤0.70 |
200W | 50 Ω | N/Male-N/Female |
