Termination Load
Short Description:
Provide matching impedance within the specified frequency range, which can be divided into resistive load, capacitive load, and inductive load. Used for terminating branch nodes or detection points in distributed system extension links.
Product Detail
Product Tags
| Product Type | Operating Frequency Band |
VSVR | Average Power | Impedance | Connector |

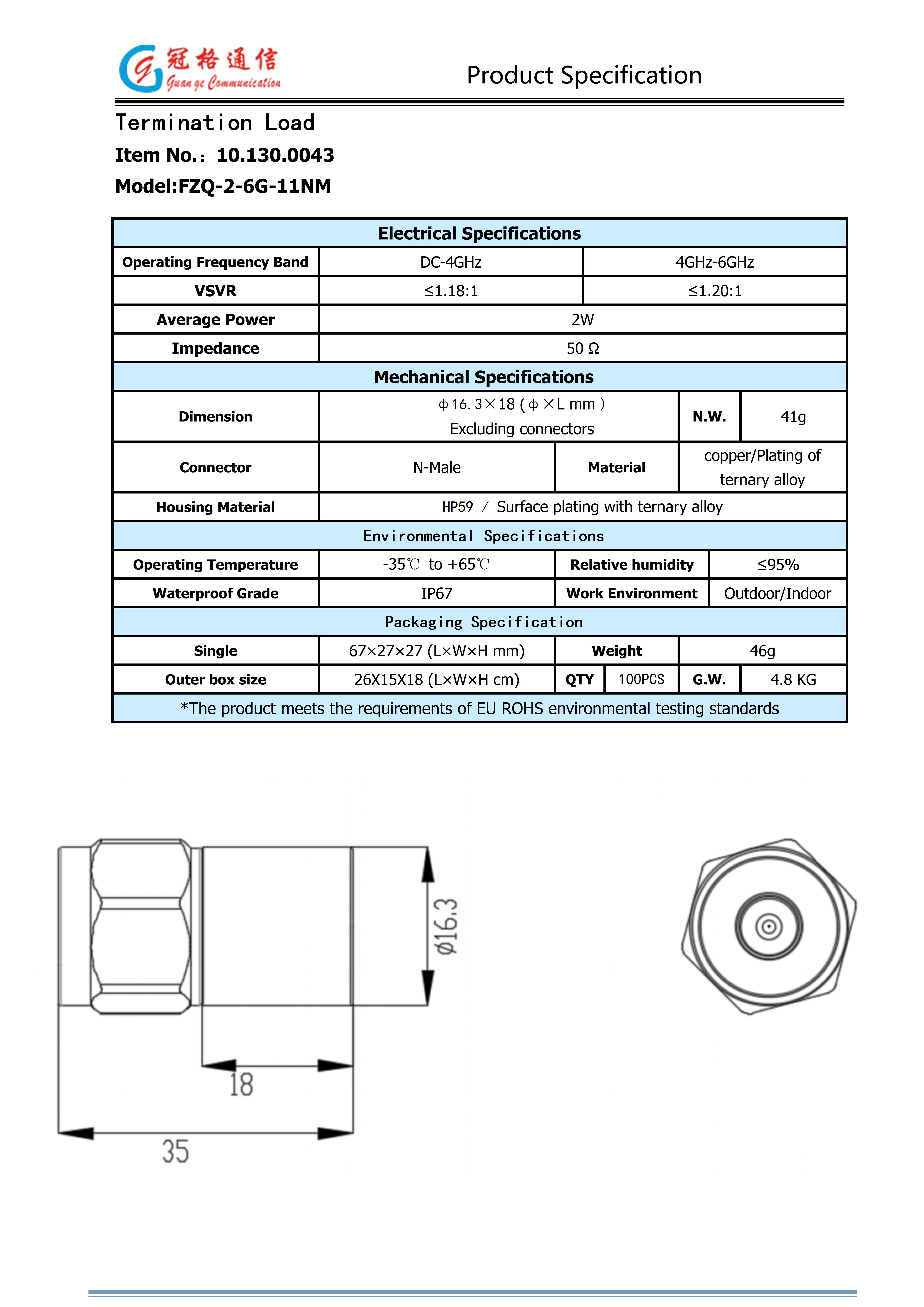

| FZQ-2-6G-11NM | DC-4GHz/DC-4GHz~6GHz | ≤1.18:1/≤1.20:1 | 2W | 50Ω | N-Male |

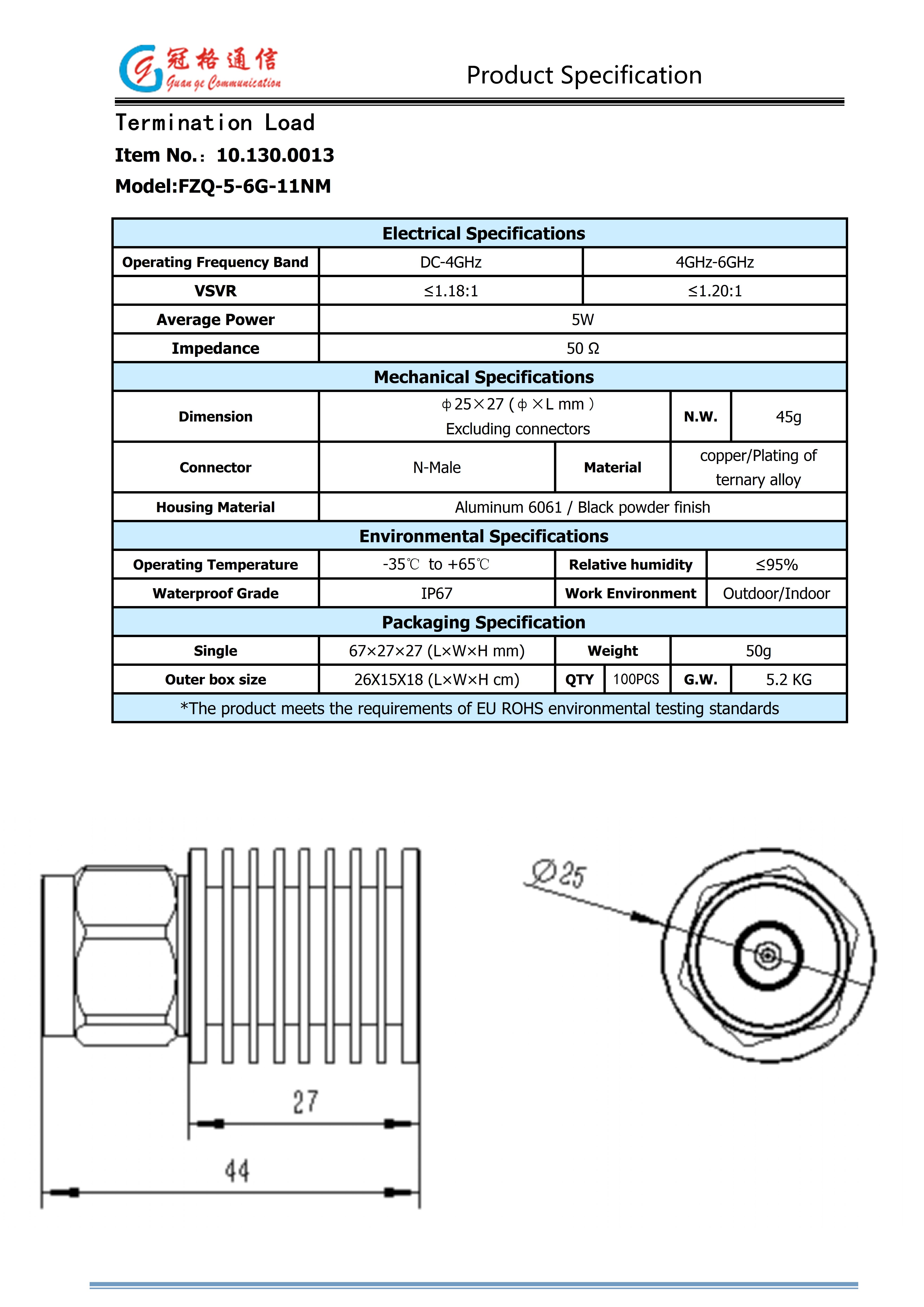

| FZQ-5-6G-11NM | DC-4GHz/DC-4GHz~6GHz | ≤1.18:1/≤1.20:1 | 5W | 50Ω | N-Male |

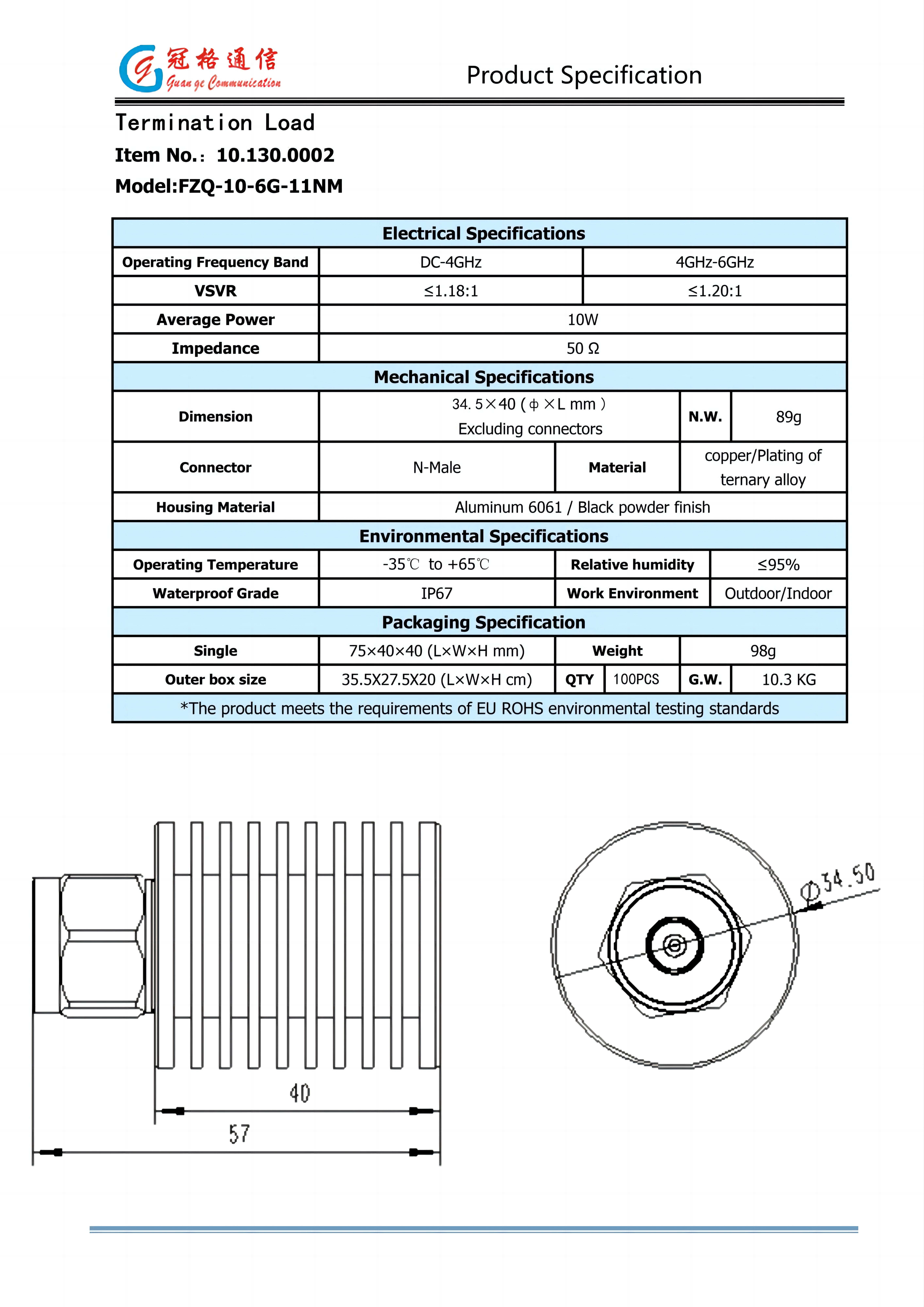

| FZQ-10-6G-11NM | DC-4GHz/DC-4GHz~6GHz | ≤1.18:1/≤1.20:1 | 10W | 50Ω | N-Male |

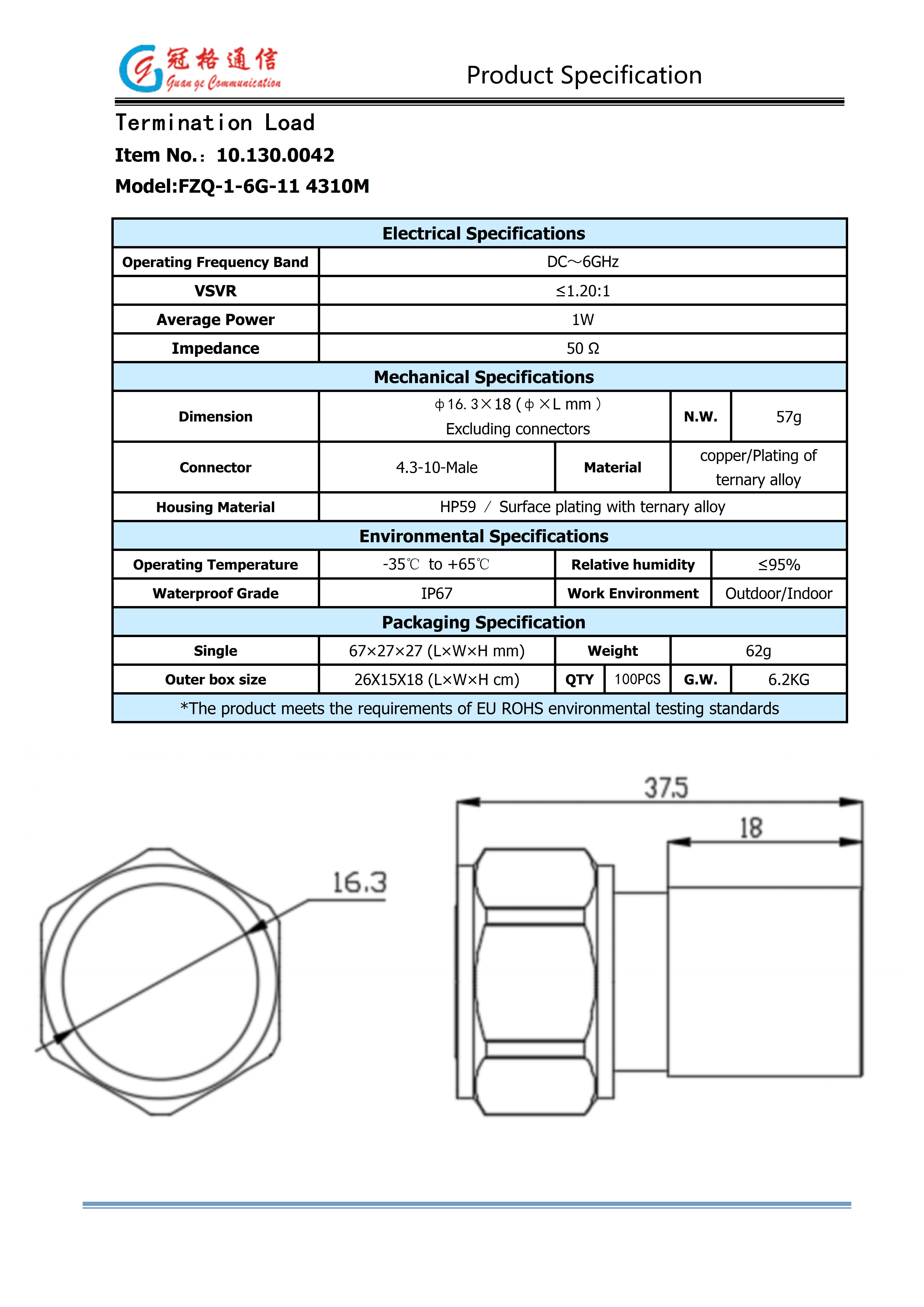

| FZQ-1-6G-11 4310M | DC-6GHz | ≤1.20:1 | 1W | 50Ω | 4.3-10-Male |

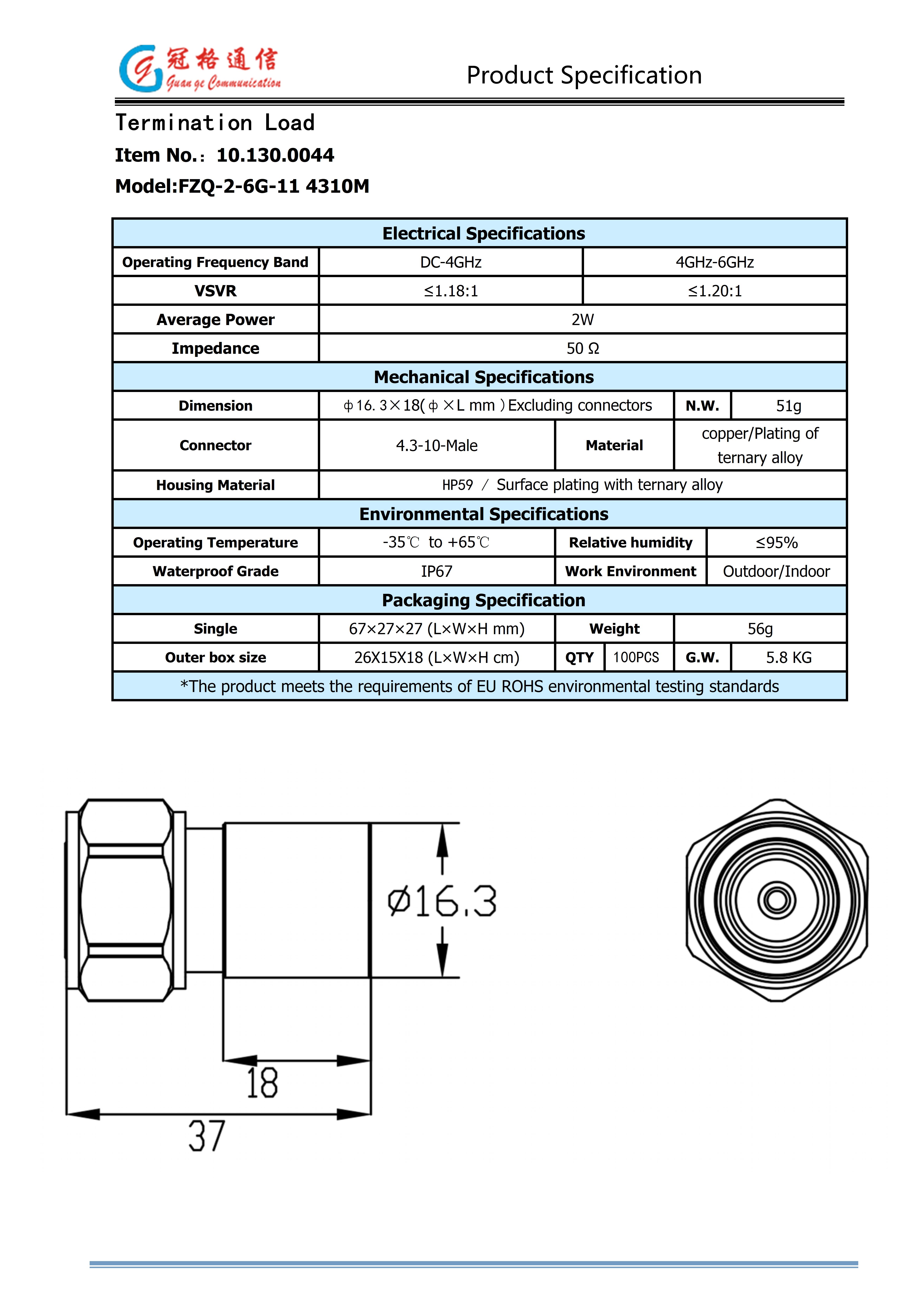

| FZQ-2-6G-11 4310M | DC-4GHz/DC-4GHz~6GHz | ≤1.18:1/≤1.20:1 | 2W | 50Ω | 4.3-10-Male |

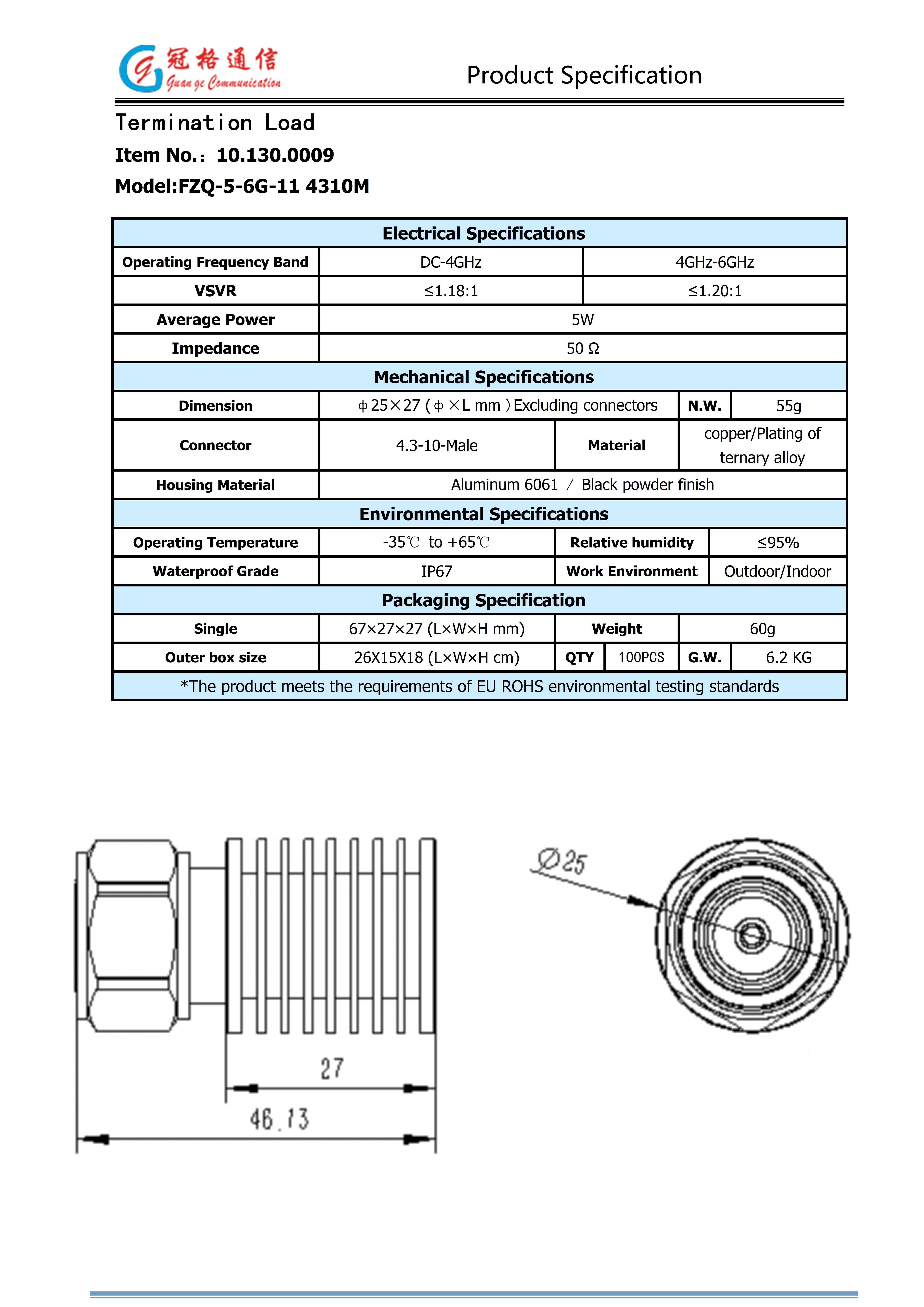

| FZQ-5-6G-11 4310M | DC-4GHz/DC-4GHz~6GHz | ≤1.18:1/≤1.20:1 | 5W | 50Ω | 4.3-10-Male |

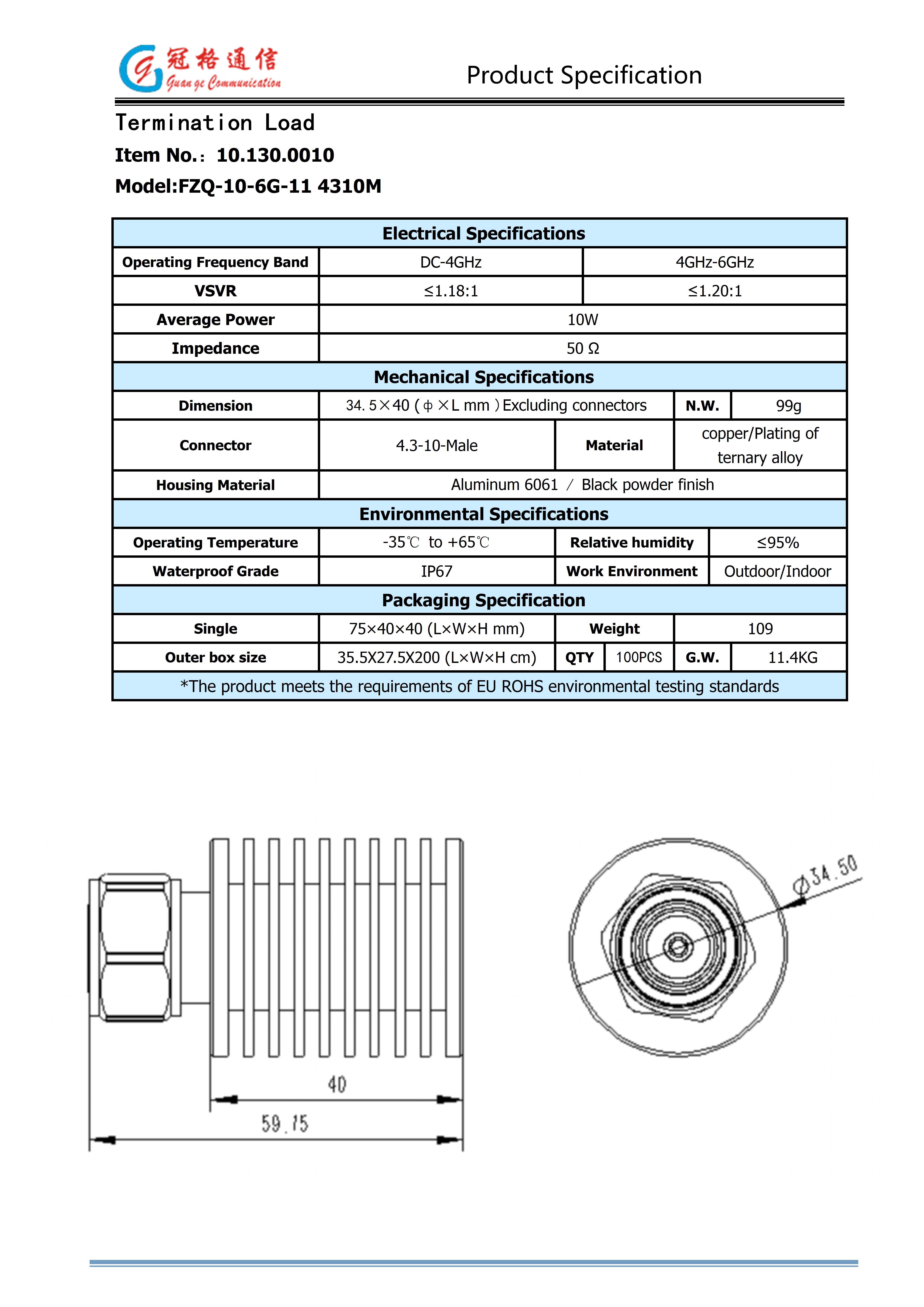

| FZQ-10-6G-11 4310M | DC-4GHz/DC-4GHz~6GHz | ≤1.18:1/≤1.20:1 | 10W | 50Ω | 4.3-10-Male |

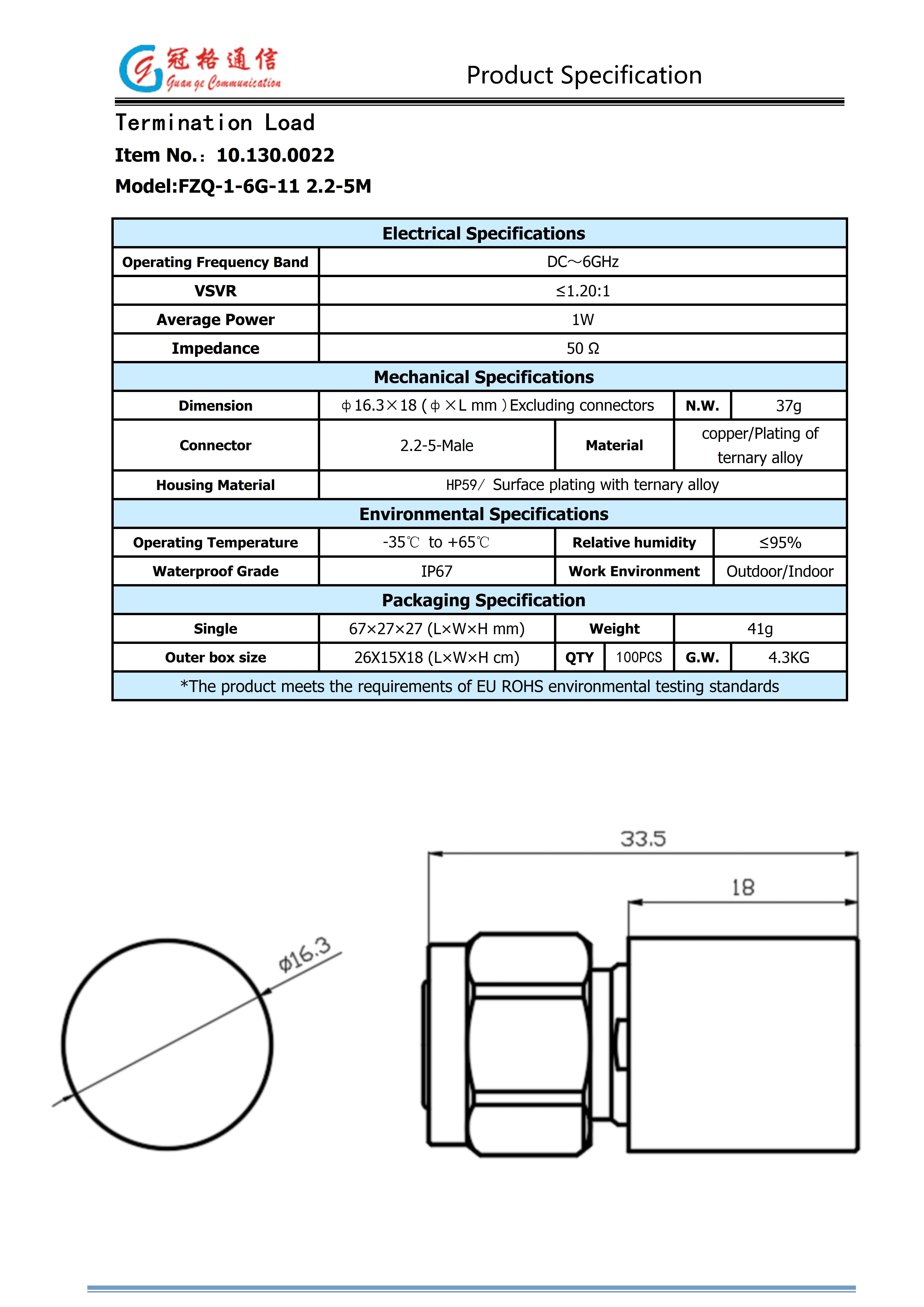

| FZQ-1-6G-11 2.2-5M | DC-6GHz | ≤1.20:1 | 1W | 50Ω | 2.2-5-Male |
| FZQ-2-6G-11 2.2-5M | DC-6GHz | ≤1.20:1 | 2W | 50Ω | 2.2-5-Male |
| FZQ-50-4G-11 N/F | DC-4GHz | ≤1.20:1 | 50W | 50Ω | N-Female |

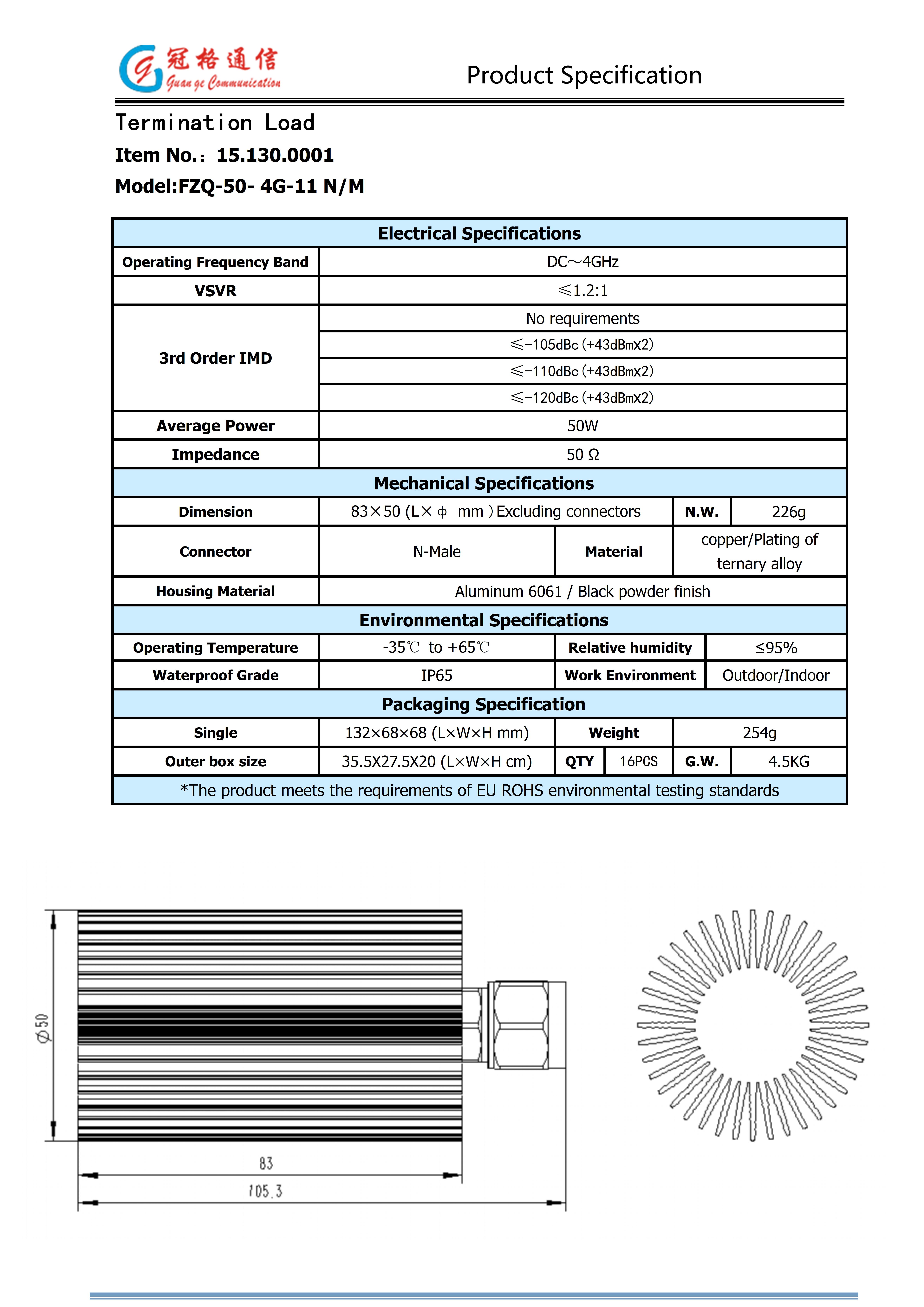

| FZQ-50-4G-11 N/M | DC-4GHz | ≤1.20:1 | 50W | 50Ω | N-Male |

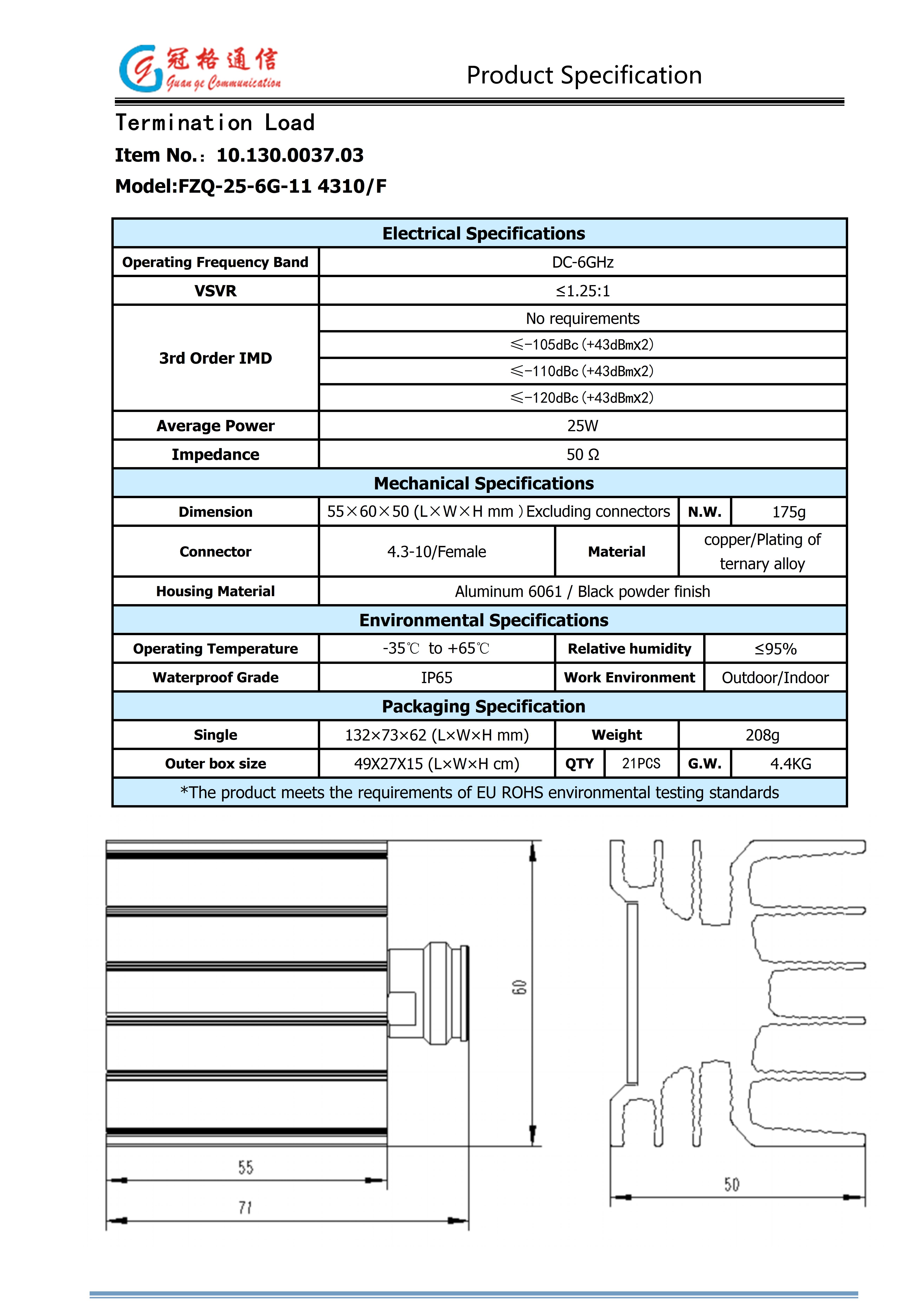

| FZQ-25-6G-11 4310/F | DC-6GHz | ≤1.25:1 | 25W | 50Ω | 4.3-10/Female |

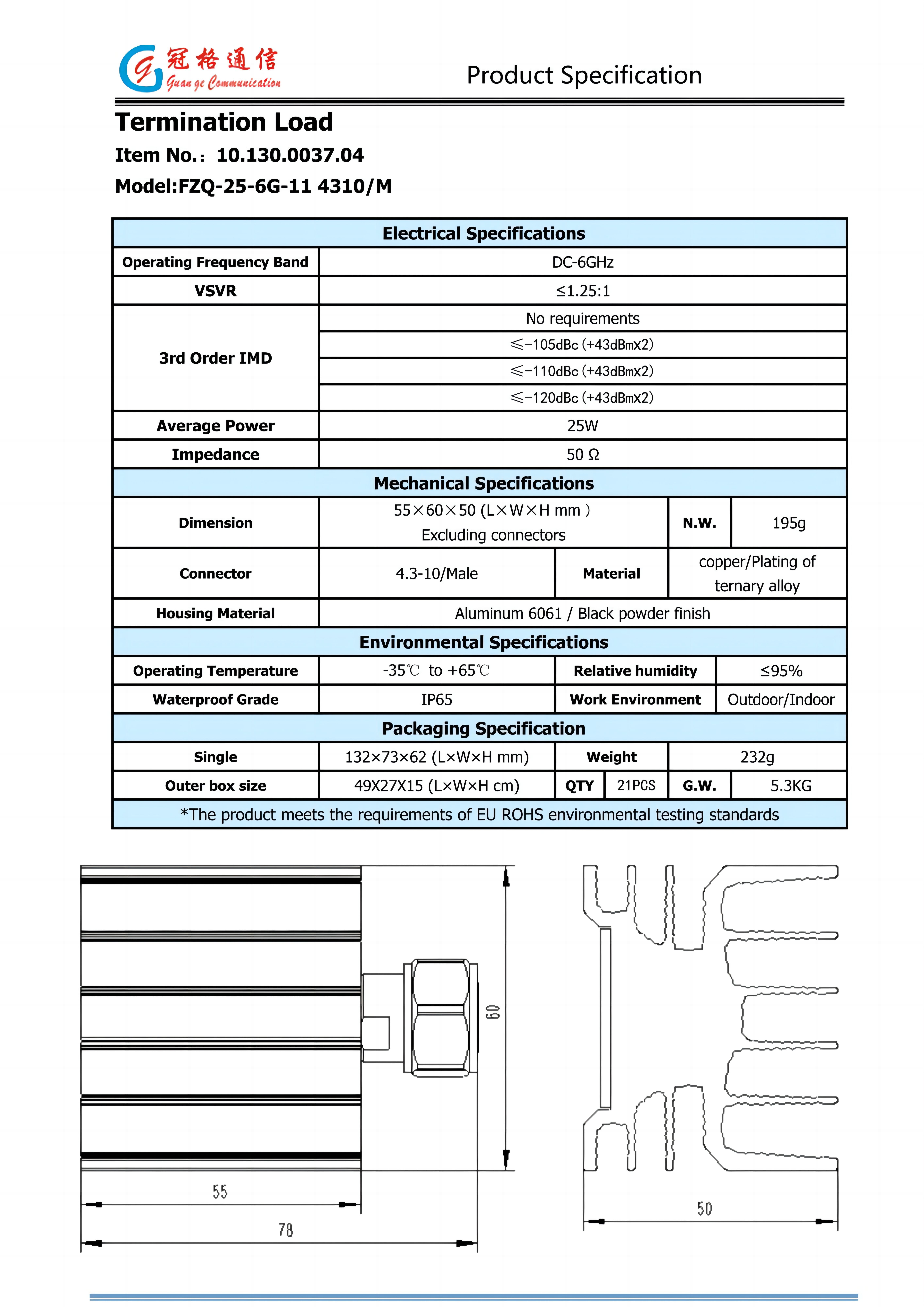

| FZQ-25-6G-11 4310/M | DC-6GHz | ≤1.25:1 | 25W | 50Ω | 4.3-10/Male |

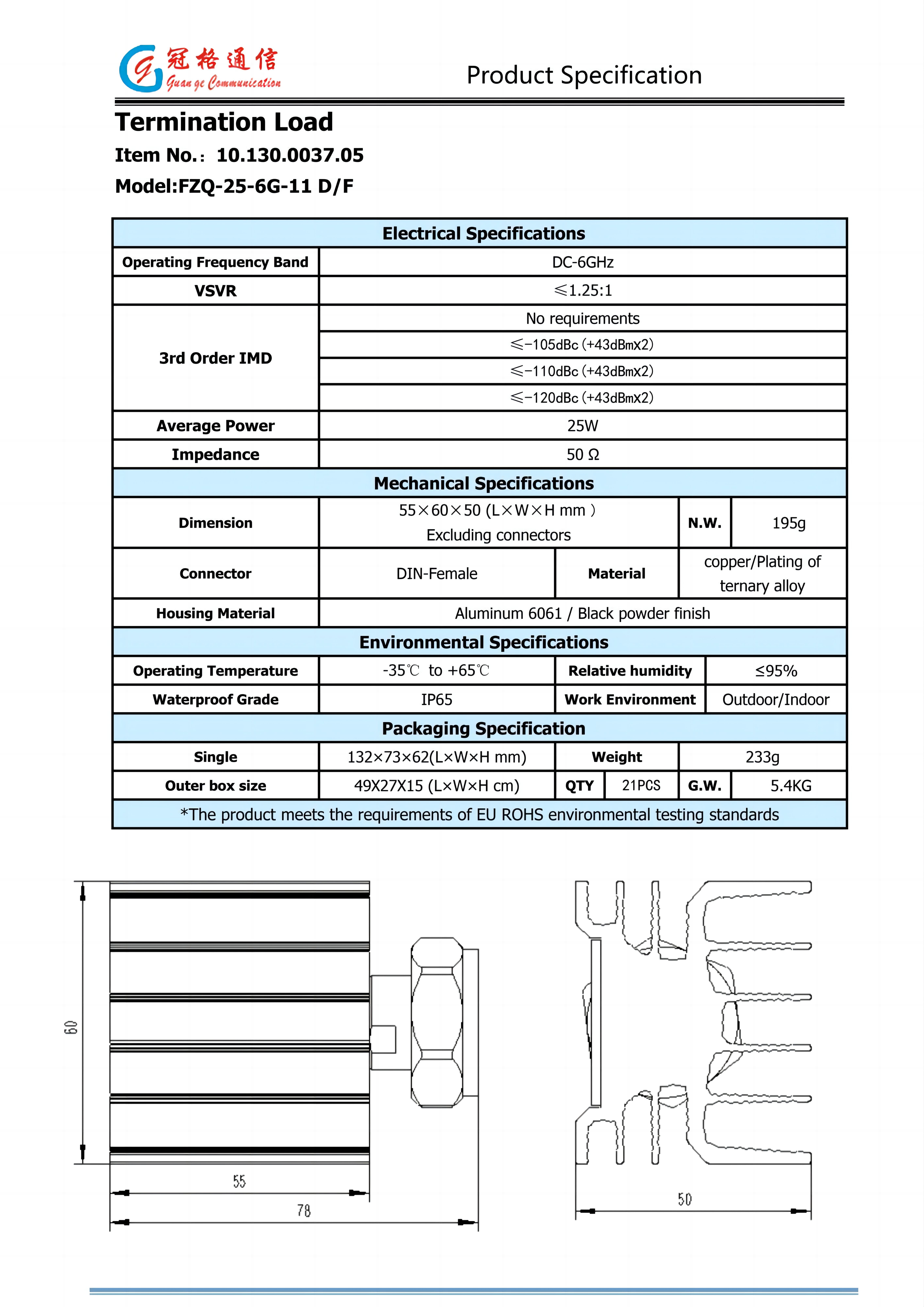

| FZQ-25-6G-11 D/F | DC-6GHz | ≤1.25:1 | 25W | 50Ω | DIN-Female |

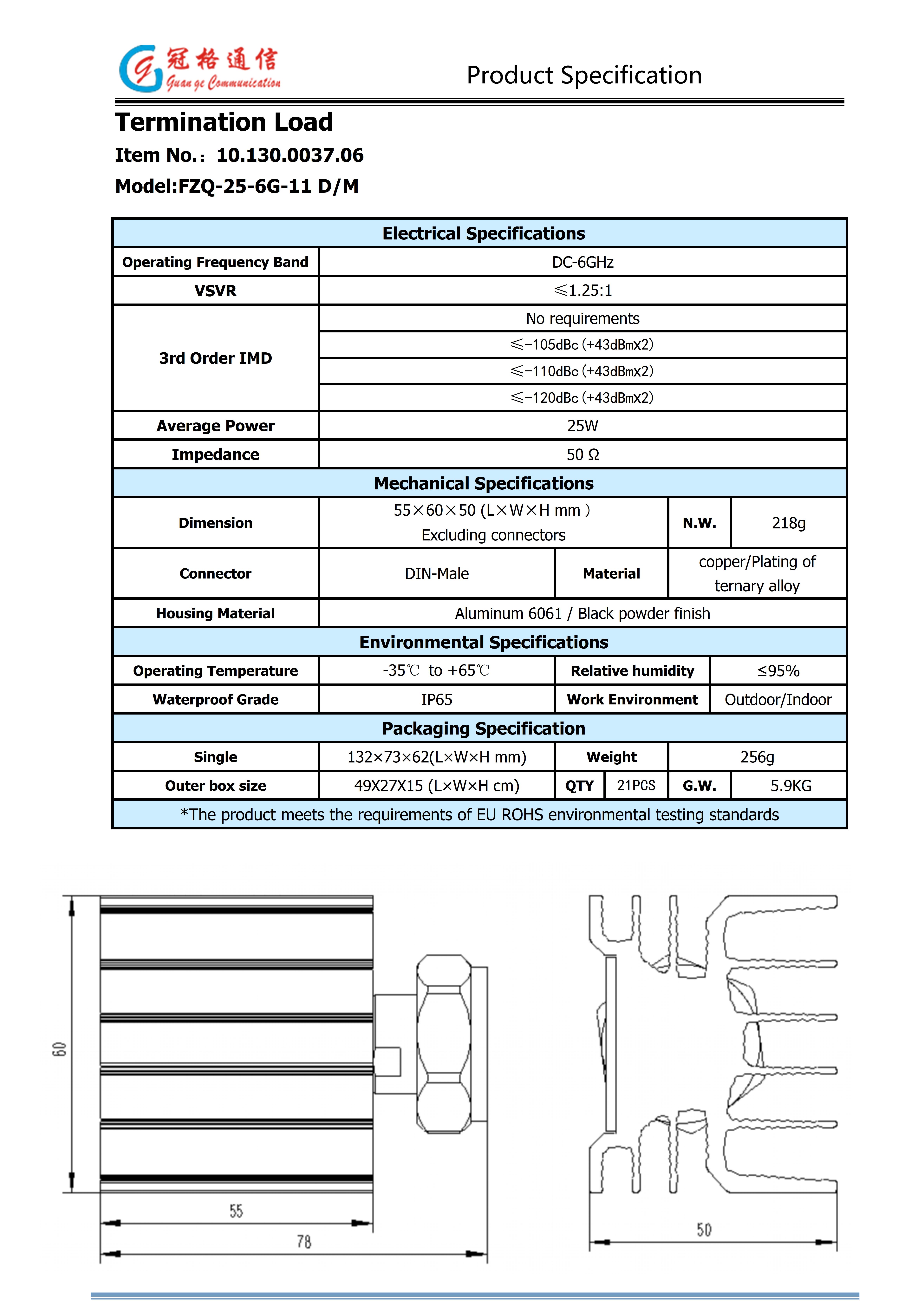

| FZQ-25-6G-11 D/M | DC-6GHz | ≤1.25:1 | 25W | 50Ω | DIN-Male |

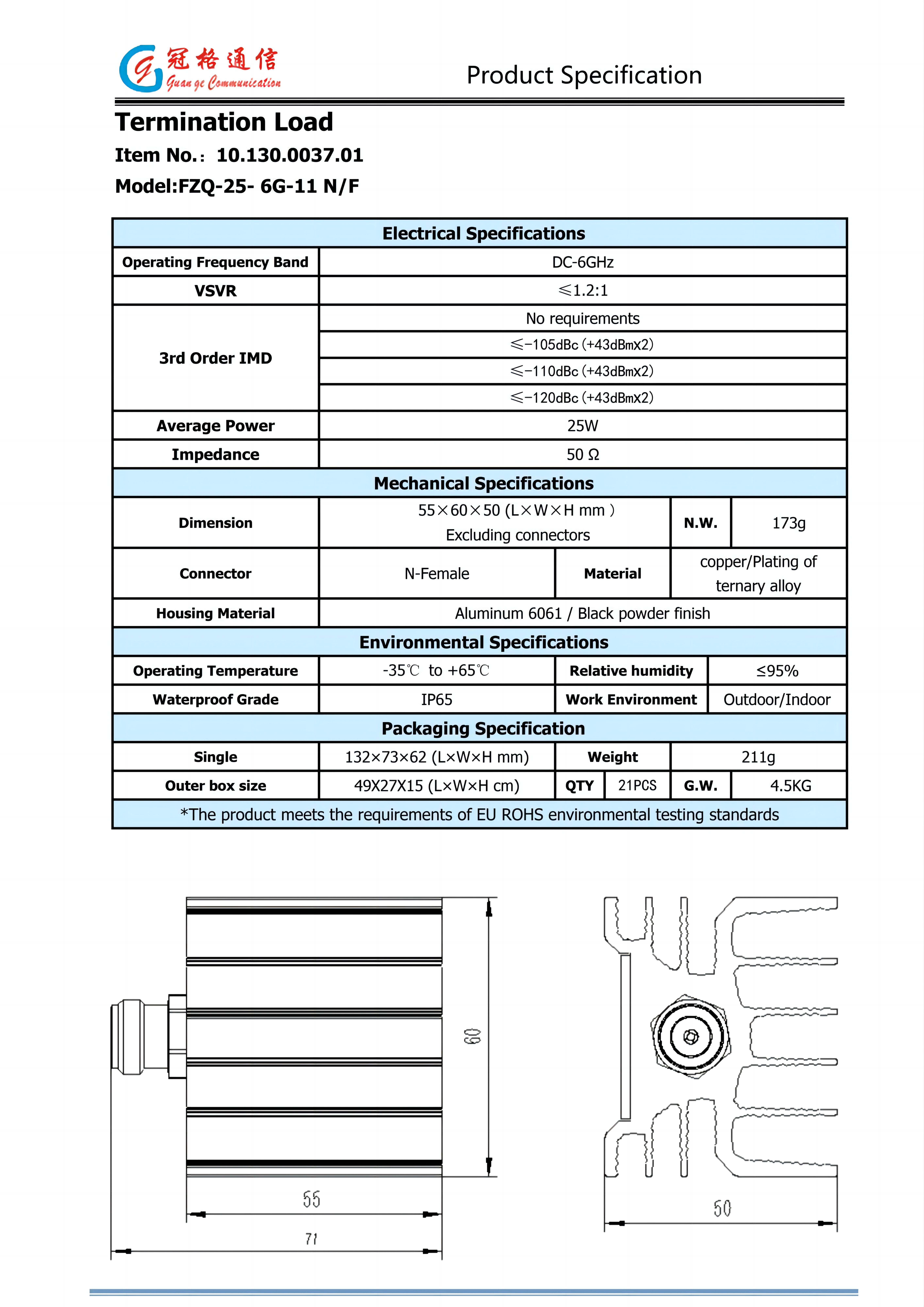

| FZQ-25-6G-11 N/F | DC-6GHz | ≤1.25:1 | 25W | 50Ω | N-Female |

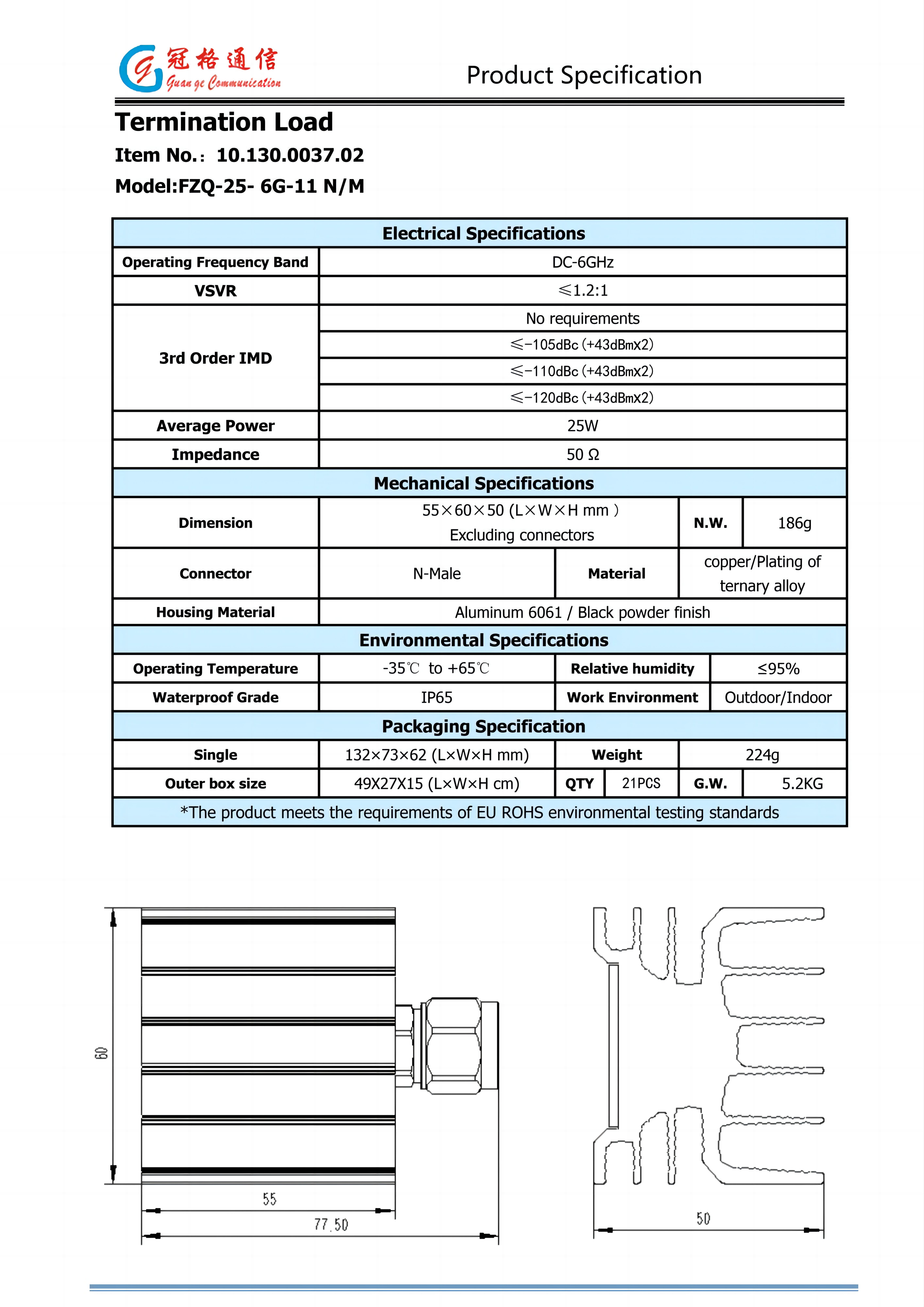

| FZQ-25-6G-11 N/M | DC-6GHz | ≤1.25:1 | 25W | 50Ω | N-Male |
