Hybrid Coupler
Short Description:
The 3dB bridge can continuously sample the transmission power in a certain direction along the transmission line, and can divide an input signal into two signals with equal amplitude and 90 ° phase difference. Mainly used for multi signal combining to improve the utilization of output signals, widely used for combining base station signals in indoor coverage systems.
Product Detail
Product Tags
| Product Type | Operating Frequency Band | Way | VSVR | Insertion Loss | Isolation | Average Power | Impedance | Connector |
| THL-2-50W-350/430-N | 350-430MHz | 2in/1out | ≤1.30:1 | ≤6.5dB | ≥-22dB | 50W | 50 Ω | N-F |
| THL-4-50W-350/430-N | 350-430MHz | 4in/1out | ≤1.30:1 | ≤6.5dB | ≥-20dB | 50W | 50 Ω | N-F |

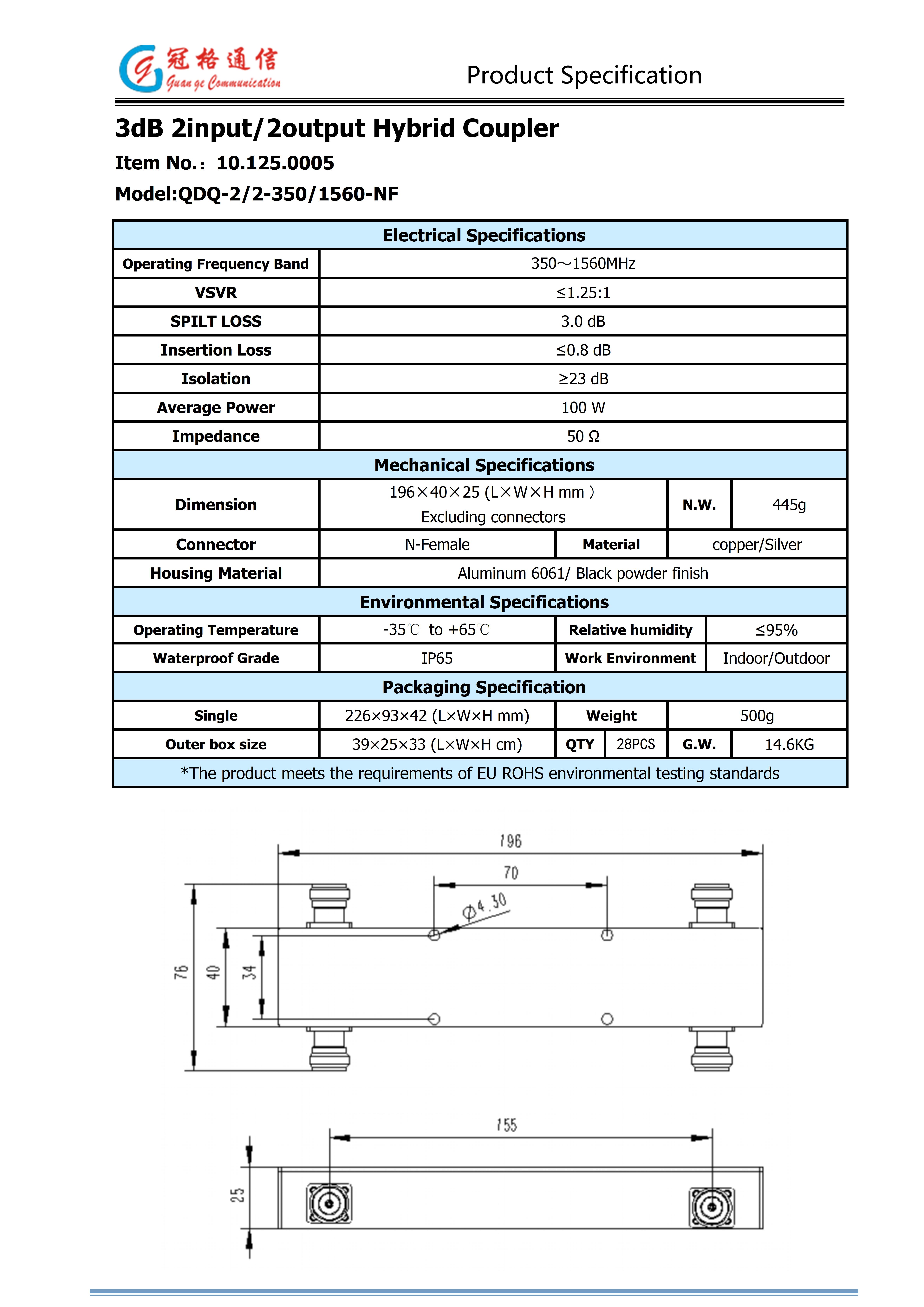

| QDQ-2/2-350/1560-NF | 350～1560MHz | 2in/2out | ≤1.25:1 | ≤0.8 dB | ≥23 dB | 100W | 50 Ω | N-F |
| QDQ-2/2-400/470-NF | 400-470MHz | 2in/2out | ≤1.2:1 | ≤0.4 dB | ≥30 dB | 200W | 50 Ω | N-F |

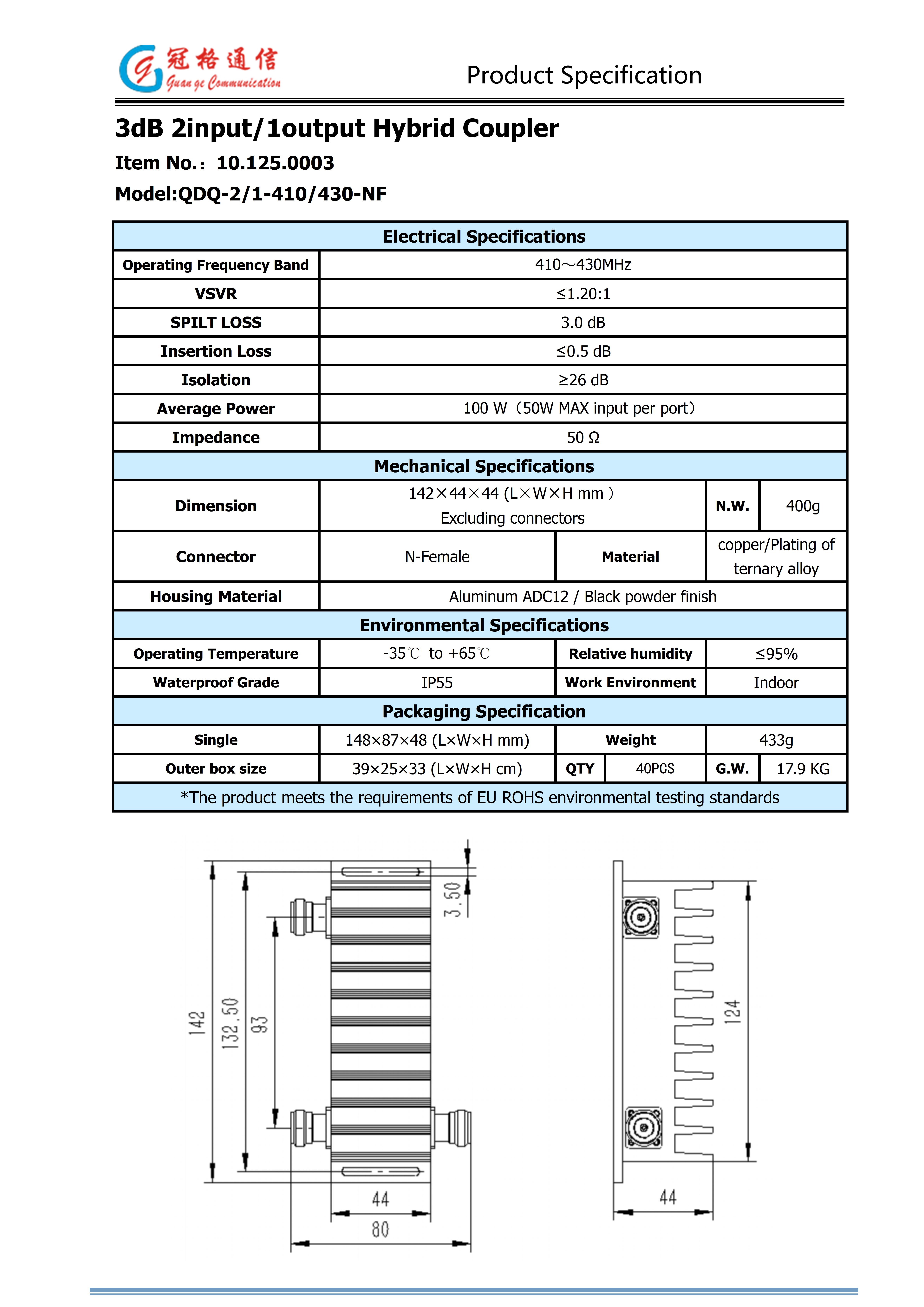

| QDQ-2/1-410/430-NF | 410-430MHz | 2in/1out | ≤1.20:1 | ≤0.5dB | ≥26 dB | 100 W | 50 Ω | N-F |

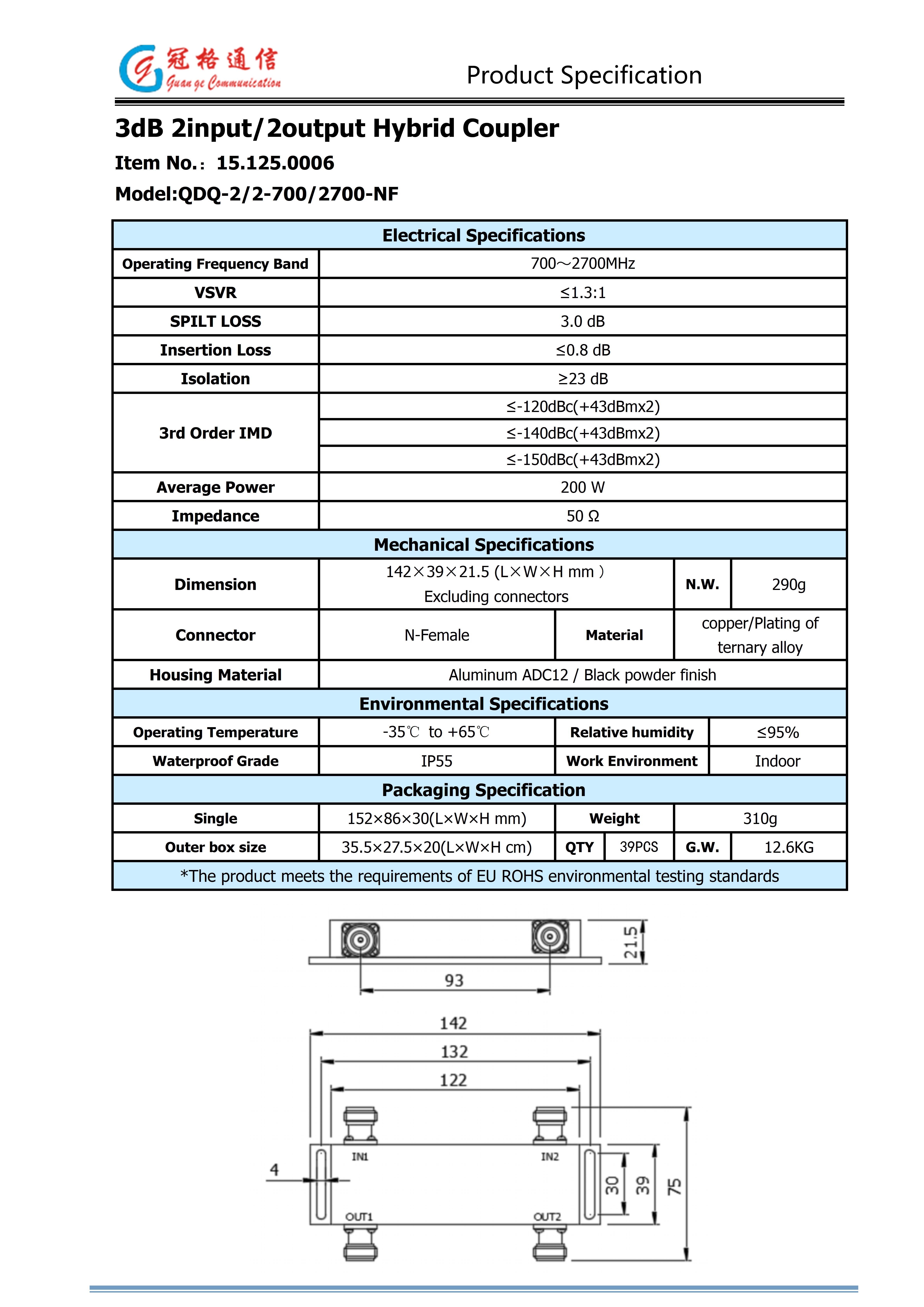

| QDQ-2/2-700/2700-NF | 700～2700MHz | 2in/2out | ≤1.3:1 | ≤0.8 dB | ≥23 dB | 200W | 50 Ω | N-F |

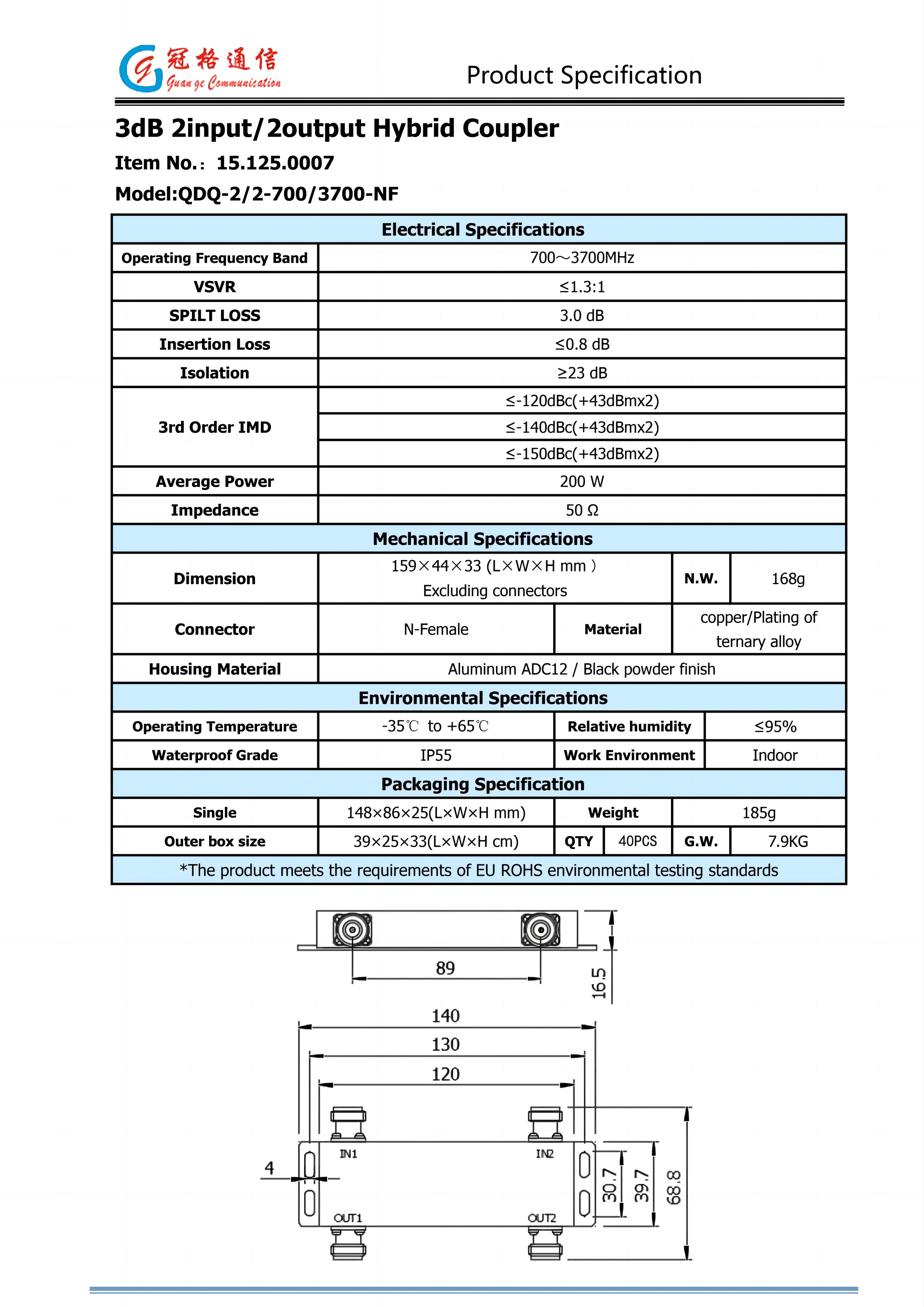

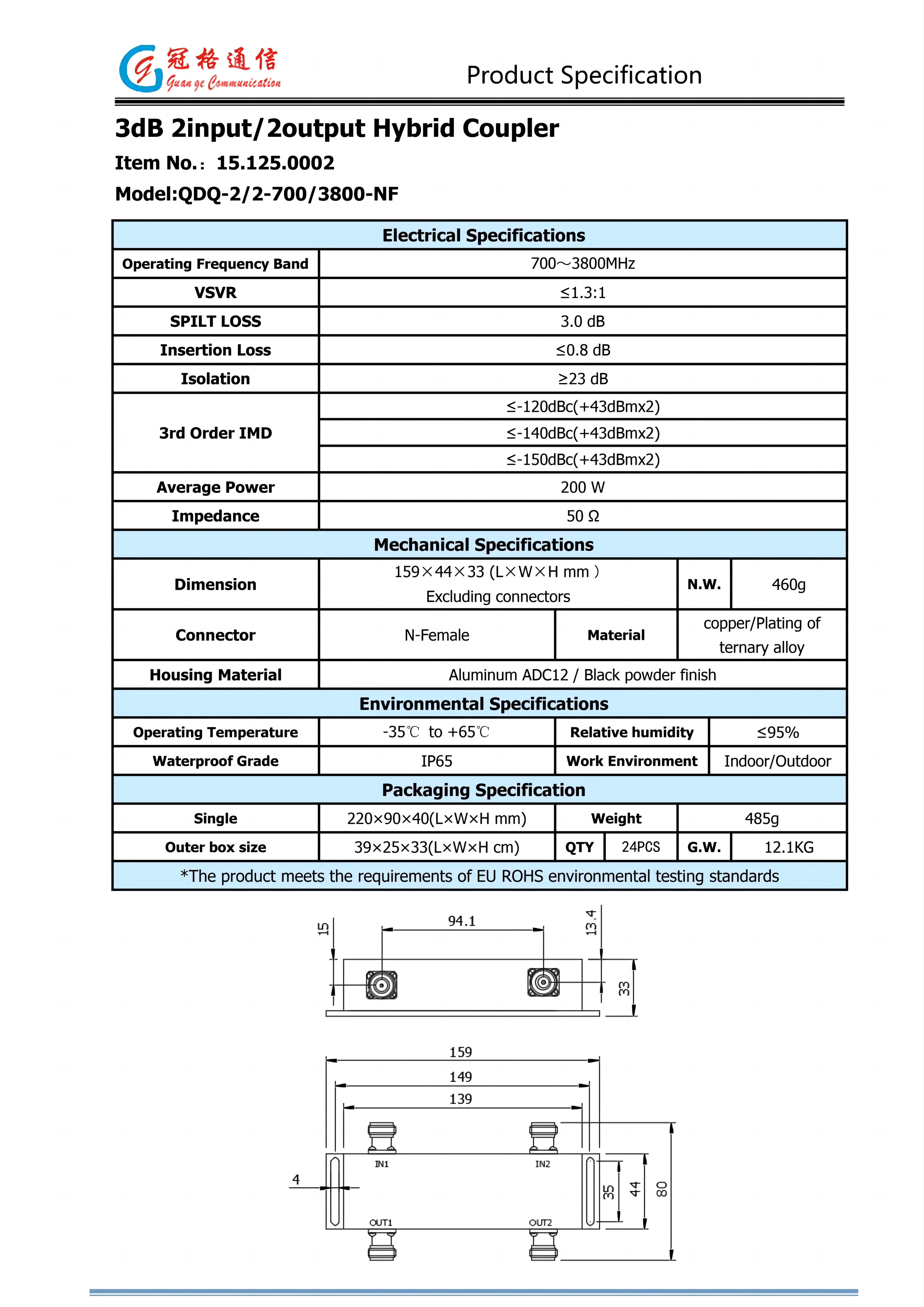

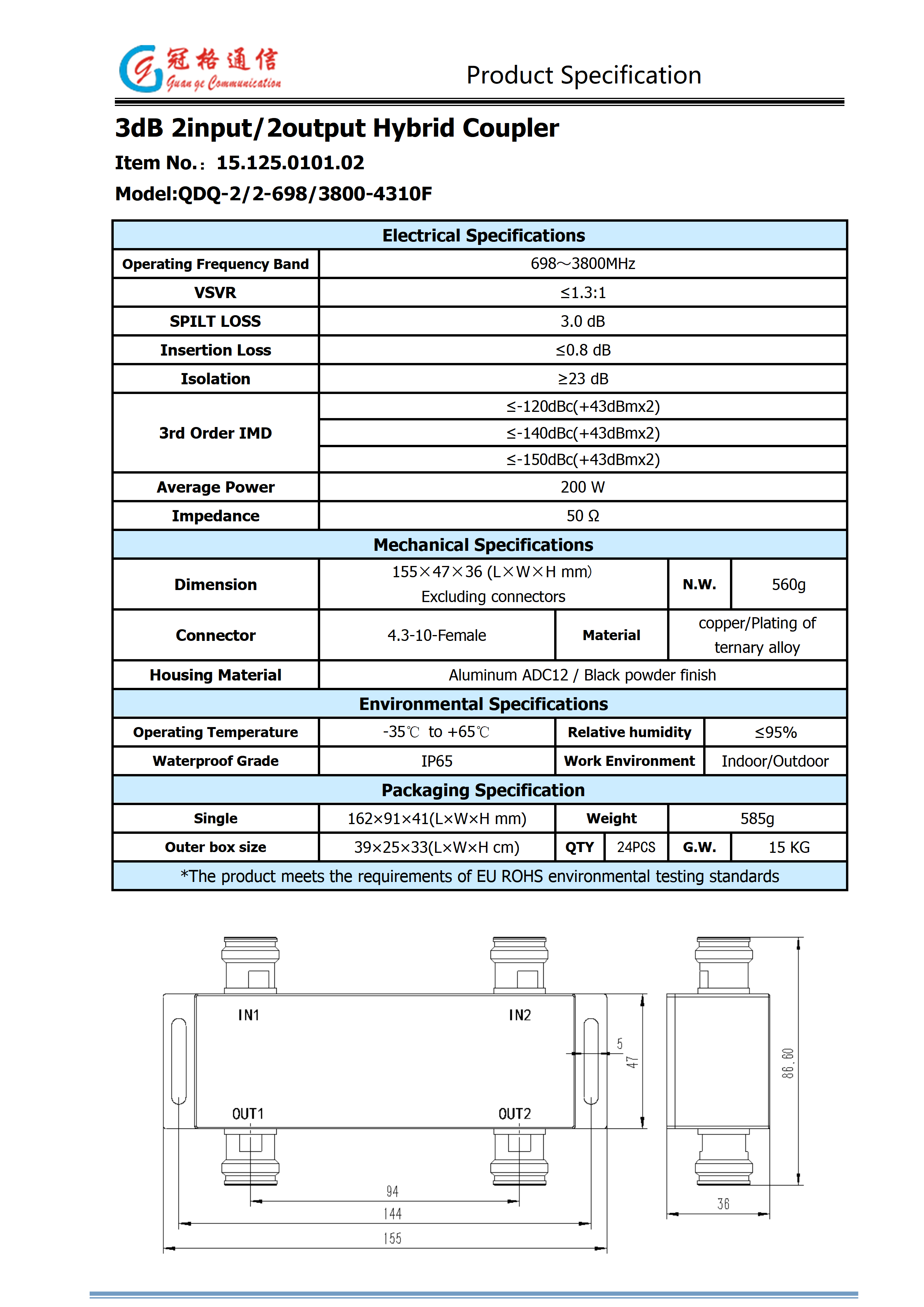

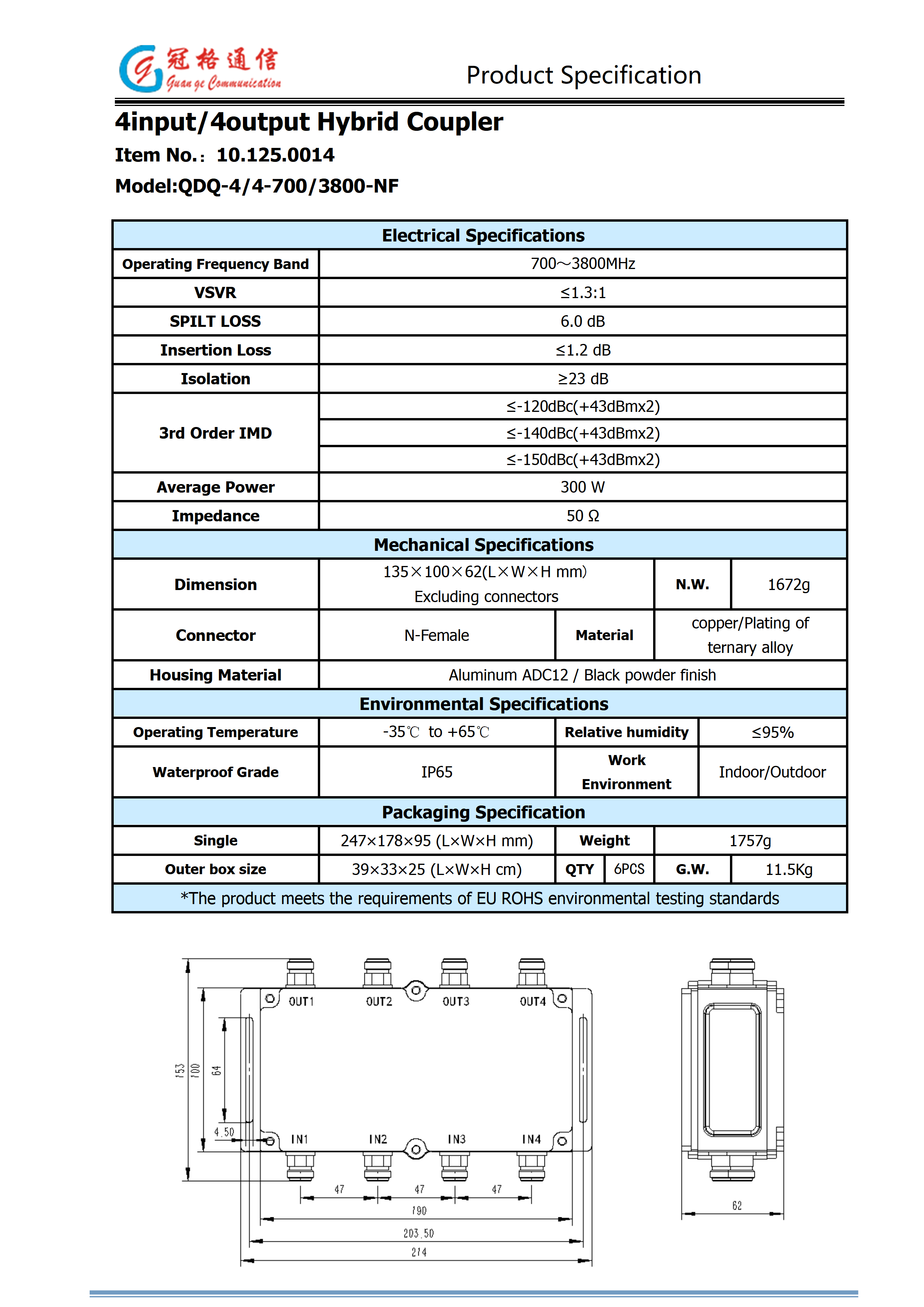

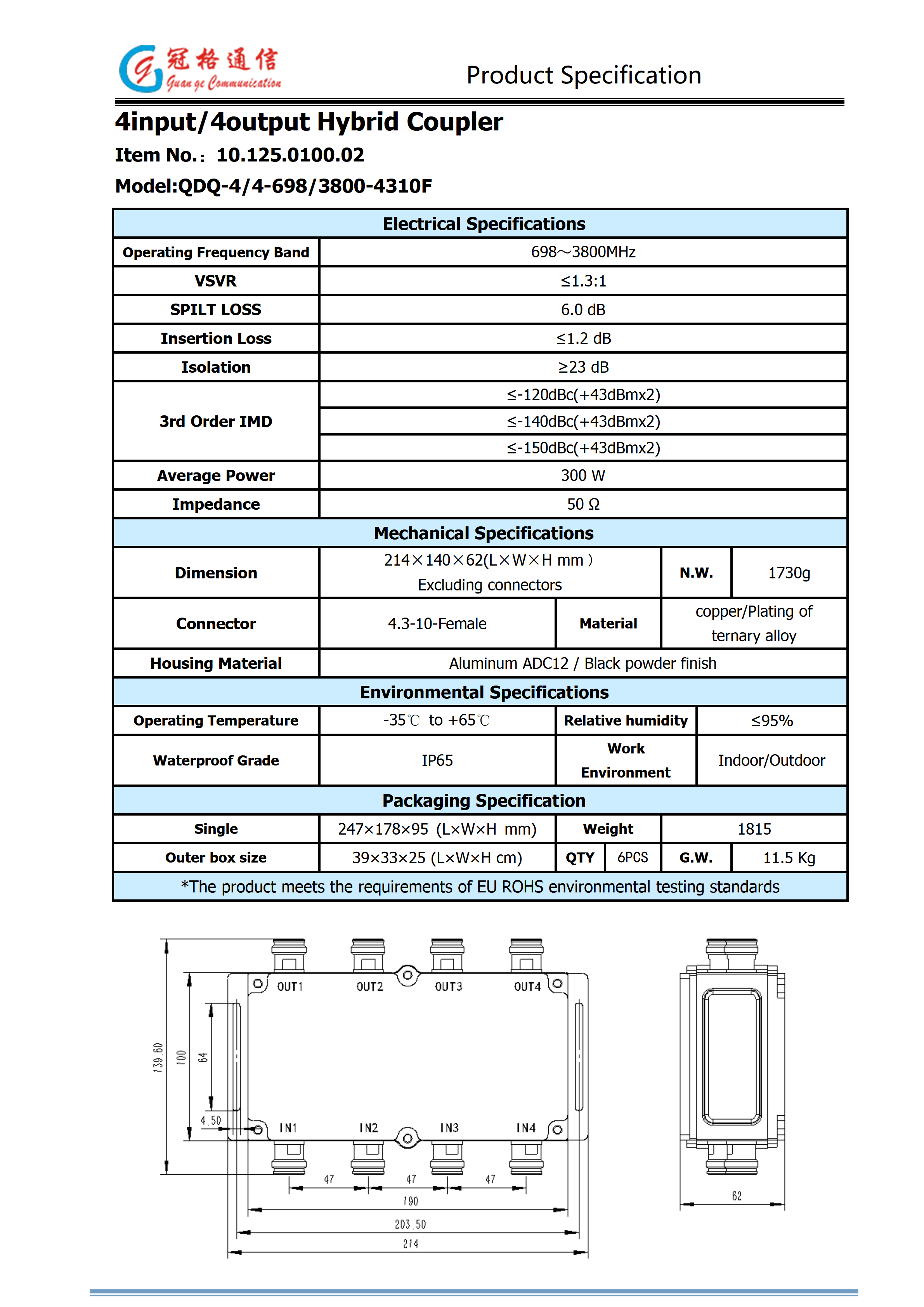

| QDQ-2/2-700/3700-NF | 700～3700MHz | 2in/2out | ≤1.3:1 | ≤0.8 dB | ≥23 dB | 200W | 50 Ω | N-F |
| QDQ-2/2-700/3800-NF | 700～3800MHz | 2in/2out | ≤1.3:1 | ≤0.8 dB | ≥23 dB | 200W | 50 Ω | N-F |
| QDQ-2/2-698/3800-4310F | 698～3800MHz | 2in/2out | ≤1.3:1 | ≤0.8 dB | ≥23 dB | 200W | 50 Ω | 4.3-10-F |
| QDQ-4/4-700/3800-NF | 700～3800MHz | 4in/4out | ≤1.3:1 | ≤1.2 dB | ≥23 dB | 300W | 50 Ω | N-F |
| QDQ-4/4-698/3800-4310F | 698～3800MHz | 4in/4out | ≤1.3:1 | ≤1.2 dB | ≥23 dB | 300W | 50 Ω | 4.3-10-F |

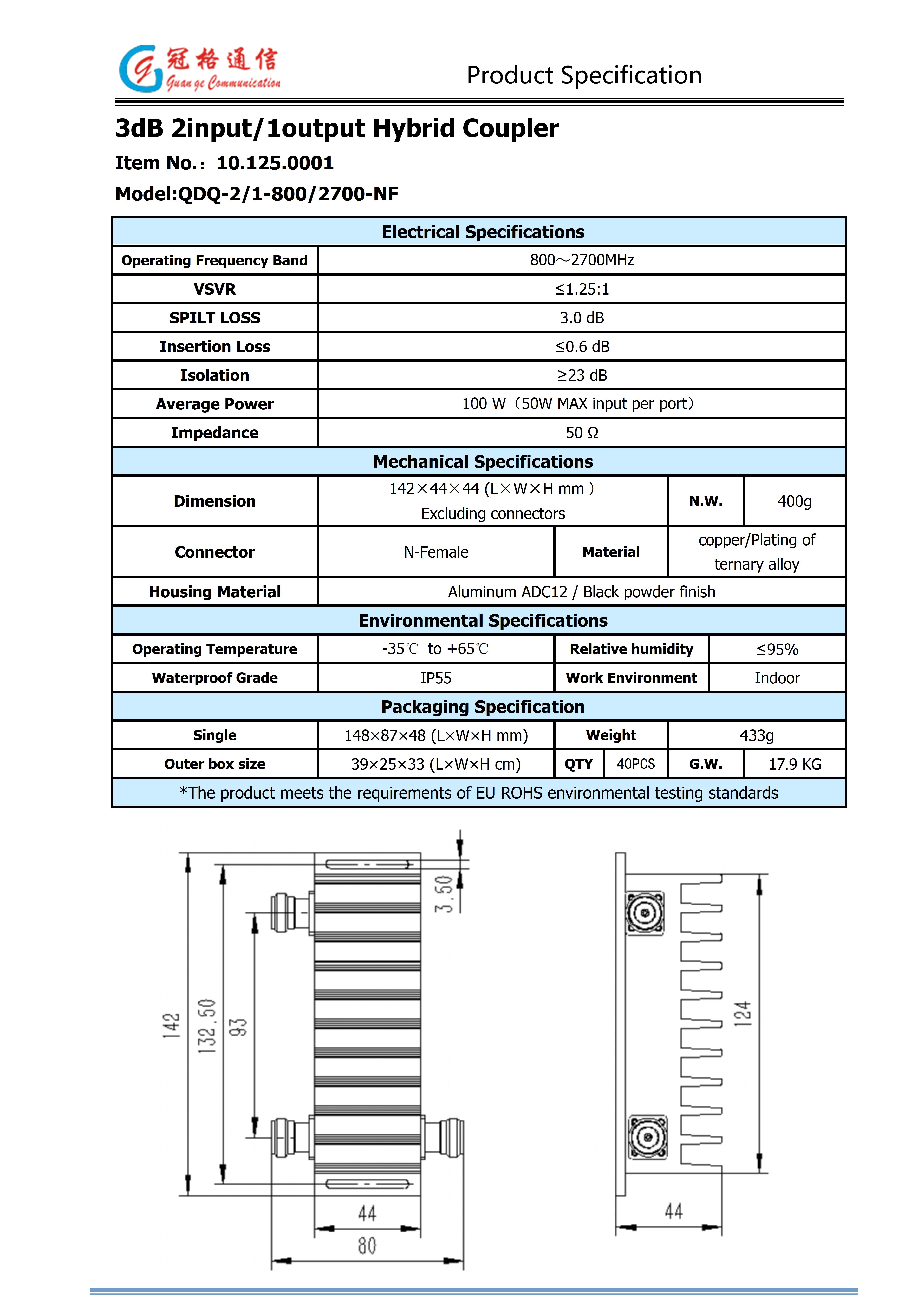

| QDQ-2/1-800/2700-NF | 800～2700MHz | 2in/1out | ≤1.25:1 | ≤0.6dB | ≥23 dB | 100 W | 50 Ω | N-F |

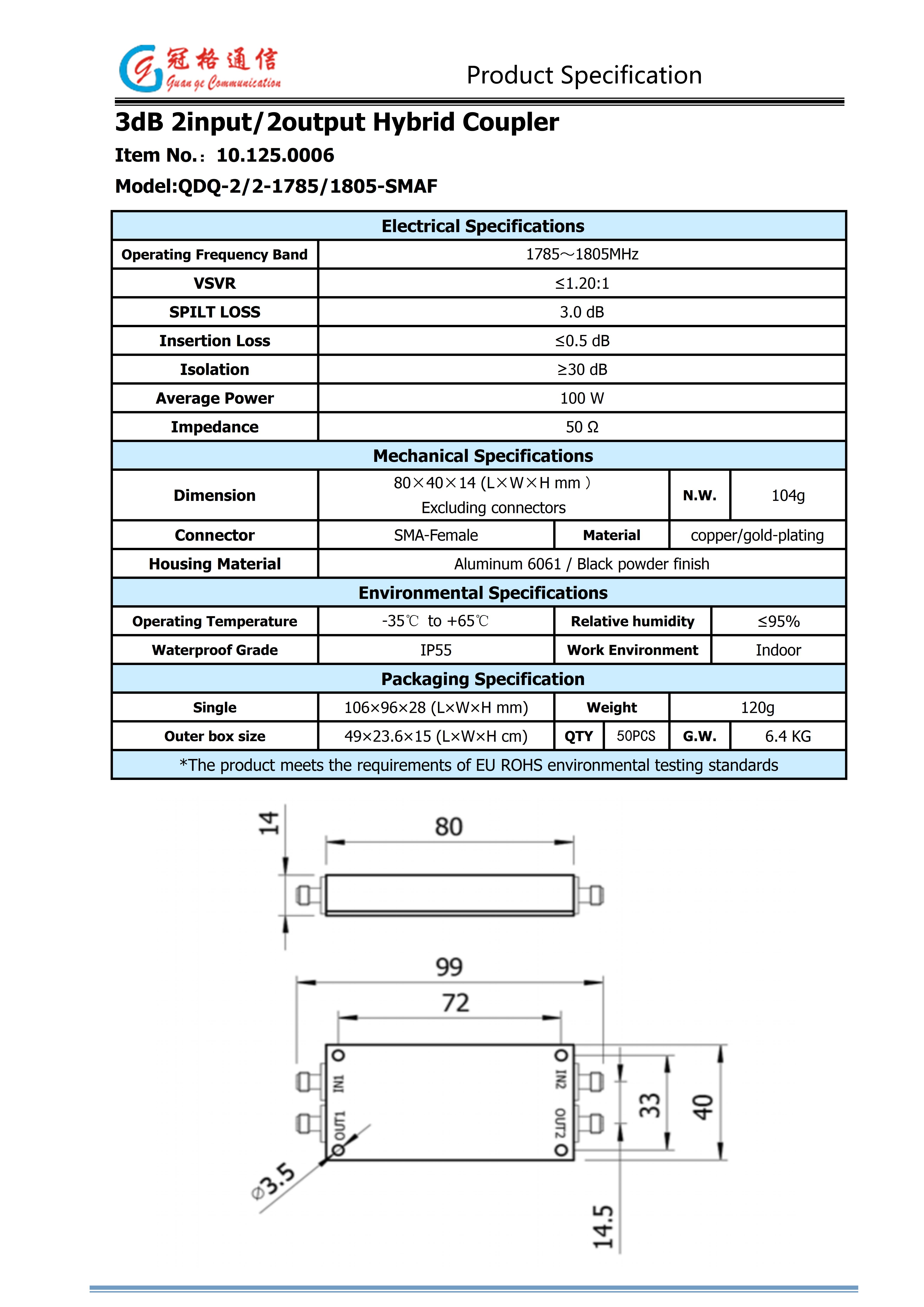

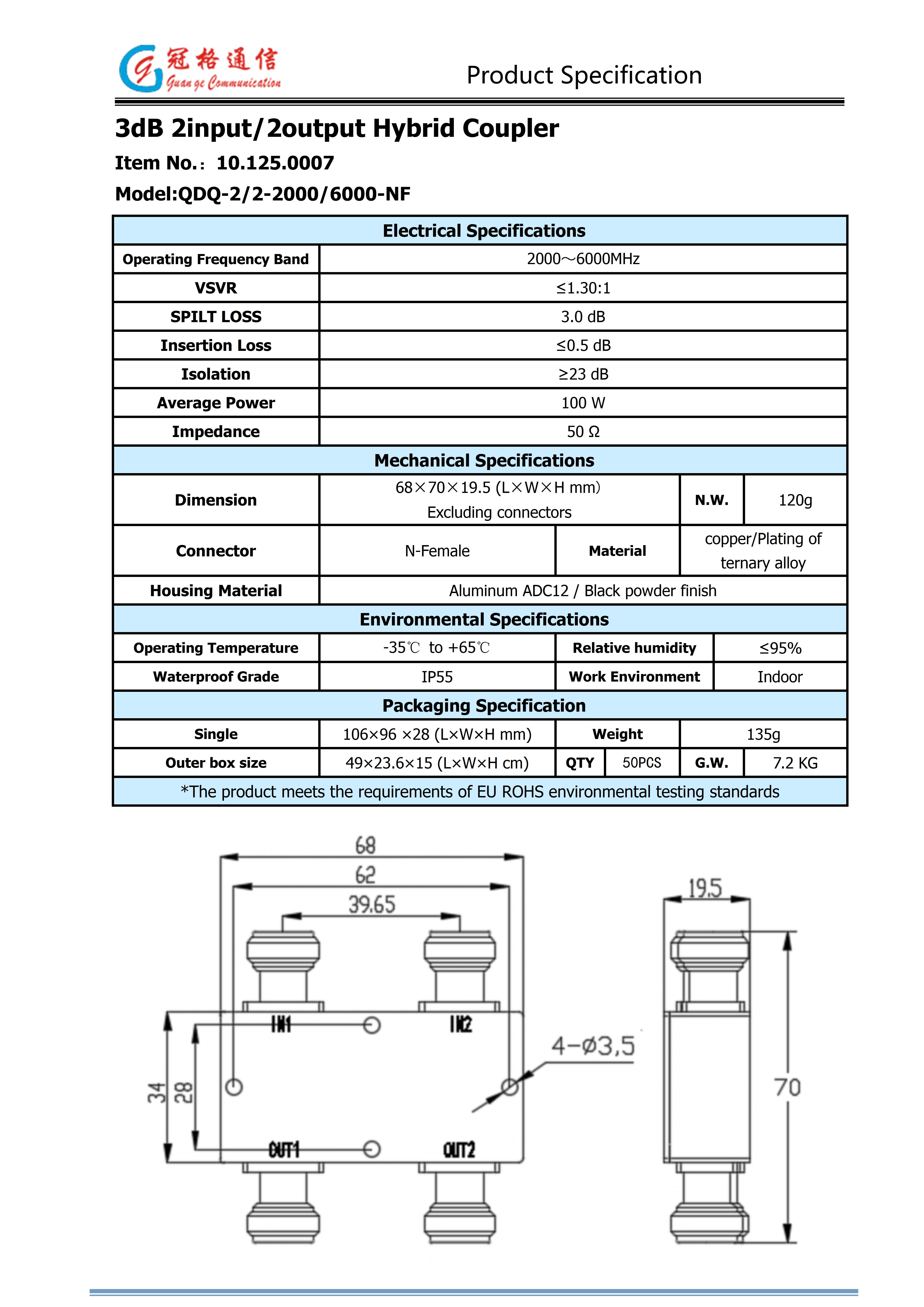

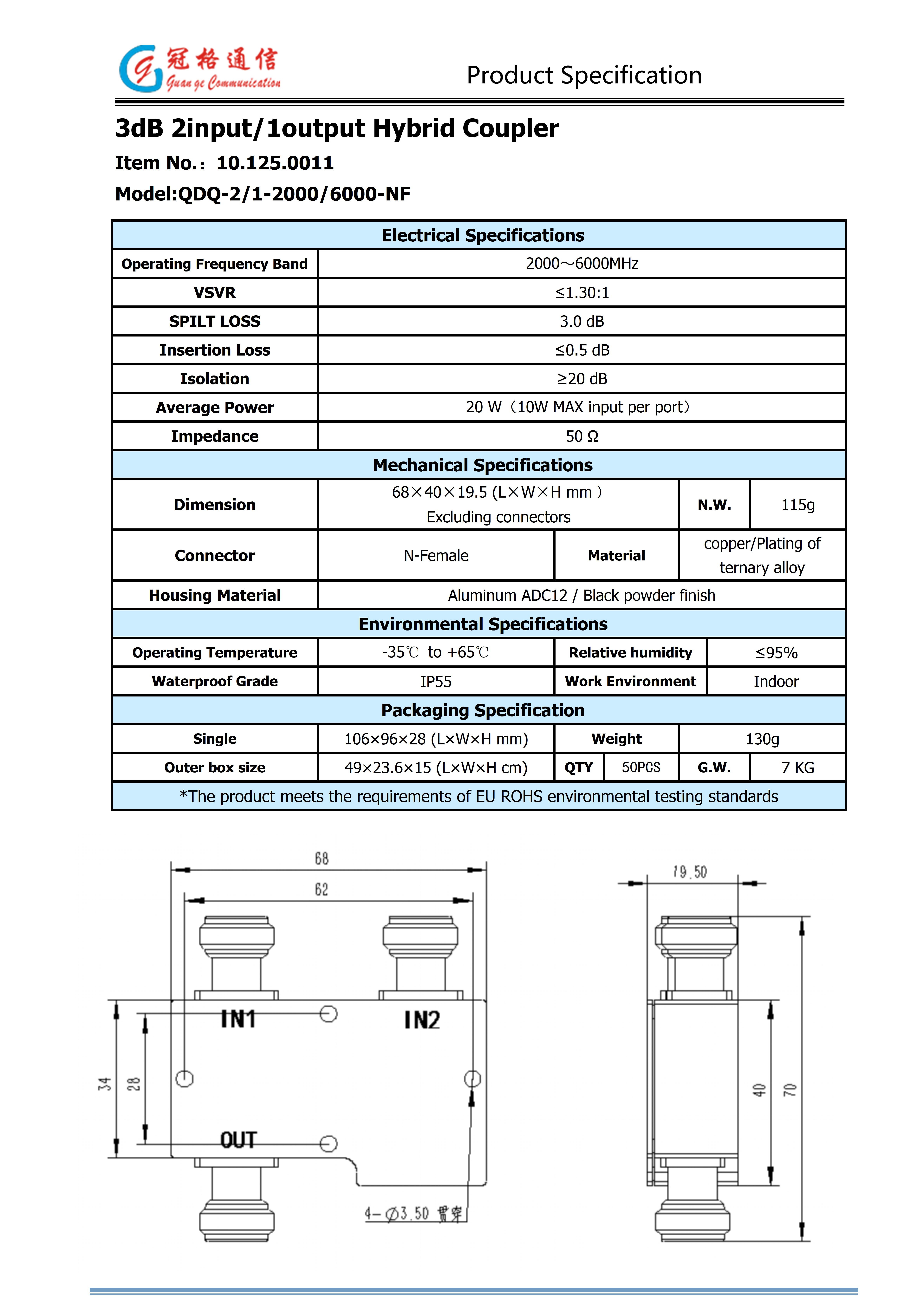

| QDQ-2/2-1785/1805-SMAF | 17885～1805MHz | 2in/2out | ≤1.20:1 | ≤0.5dB | ≥30dB | 100W | 50 Ω | N-F |
| QDQ-2/2-2000/6000-NF | 2000～6000MHz | 2in/2out | ≤1.30:1 | ≤0.5dB | ≥23 dB | 100W | 50 Ω | N-F |
| QDQ-2/1-2000/6000-NF | 2000～6000MHz | 2in/1out | ≤1.30:1 | ≤0.5dB | ≥20 dB | 20 W | 50 Ω | N-F |
