Microstrip Power Divider
Short Description:
A passive device that divides the energy of an input signal into two equal channels or outputs equal energy in multiple channels, or in turn synthesizes the energy of multiple signals into one output, which can also be called a co frequency combiner.A power divider, also known as a power divider, is an important device used in RF systems. It allows high-frequency signals to be distributed from one input port to multiple output ports while maintaining phase and amplitude stability.It is a device that divides the energy of an input signal into two or more equal or unequal outputs, or in turn combines the energy of multiple signals into one output, which can also be called a combiner
Product Detail
Product Tags
A power divider is a three-port microwave device that is used for power division or power combining. In an ideal power divider, the power going into port 1 is equally split between the two output ports, and vice versa for power combining. Figure 1 demonstrates this concept. Power dividers have applications in coherent power splitting of local oscillator power, antenna feedback network of phased array radars, external leveling and radio measurements, power combining of multiple input signals, and power combining of high-power amplifiers.
| Product Type | Operating Frequency
Band |
Way | VSVR | Insertion Loss | Isolation | Average Power | Impedance | Connector |

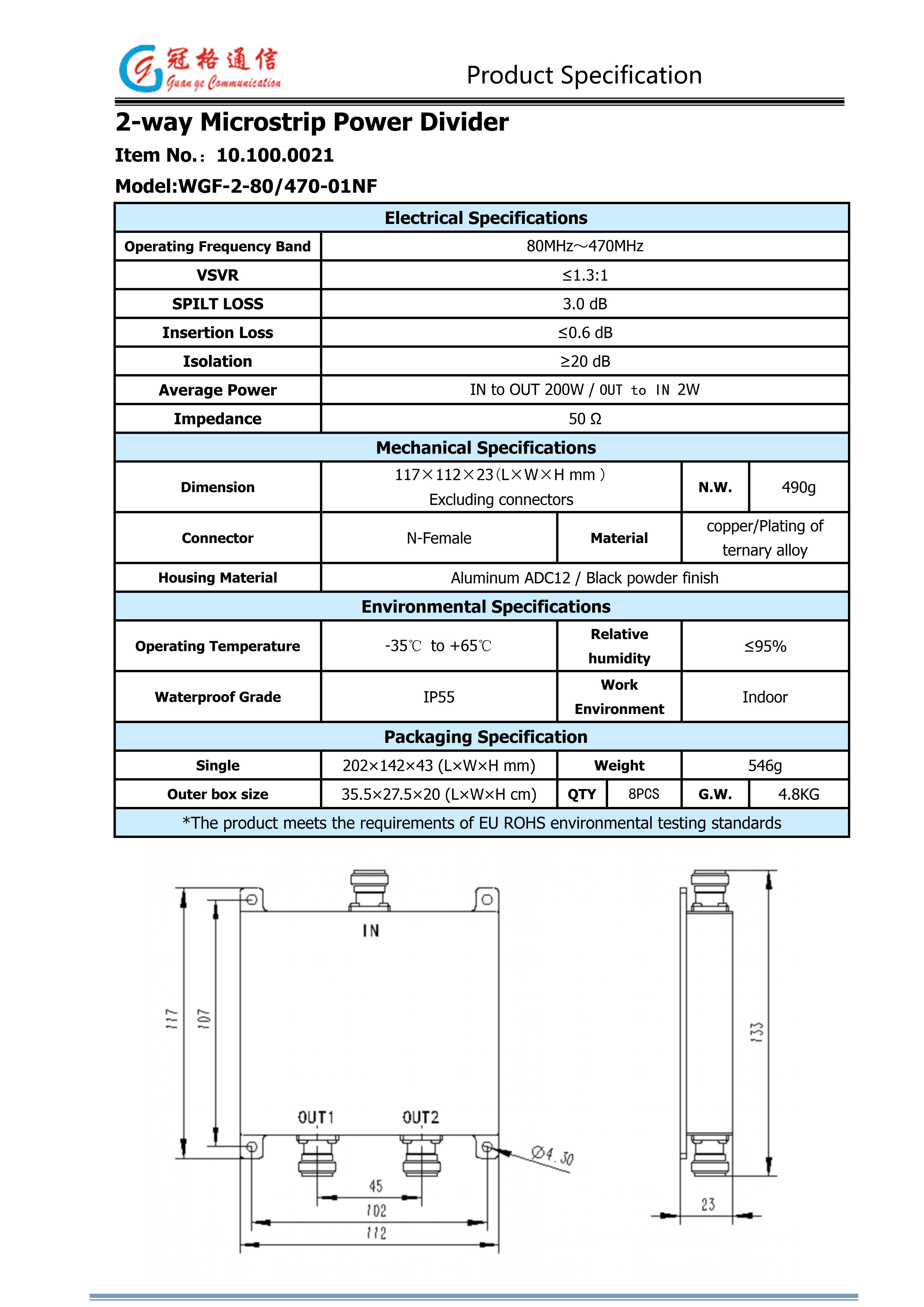

| WGF-2-80/470-01NF | 80～470MHz | 2 | ≤1.30:1 | ≤0.6 dB | ≥20 dB | Splitting 200W / combining 2W | 50 Ω | N-F |
| WGF-2-136/174-01NF | 136～174MHz | 2 | ≤1.25:1 | ≤0.5 dB | ≥18 dB | Splitting 50W / combining 2W | 50 Ω | N-F |
| WGF-2-350/520-01NF | 350～520MHz | 2 | ≤1.25:1 | ≤0.4 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | N-F |

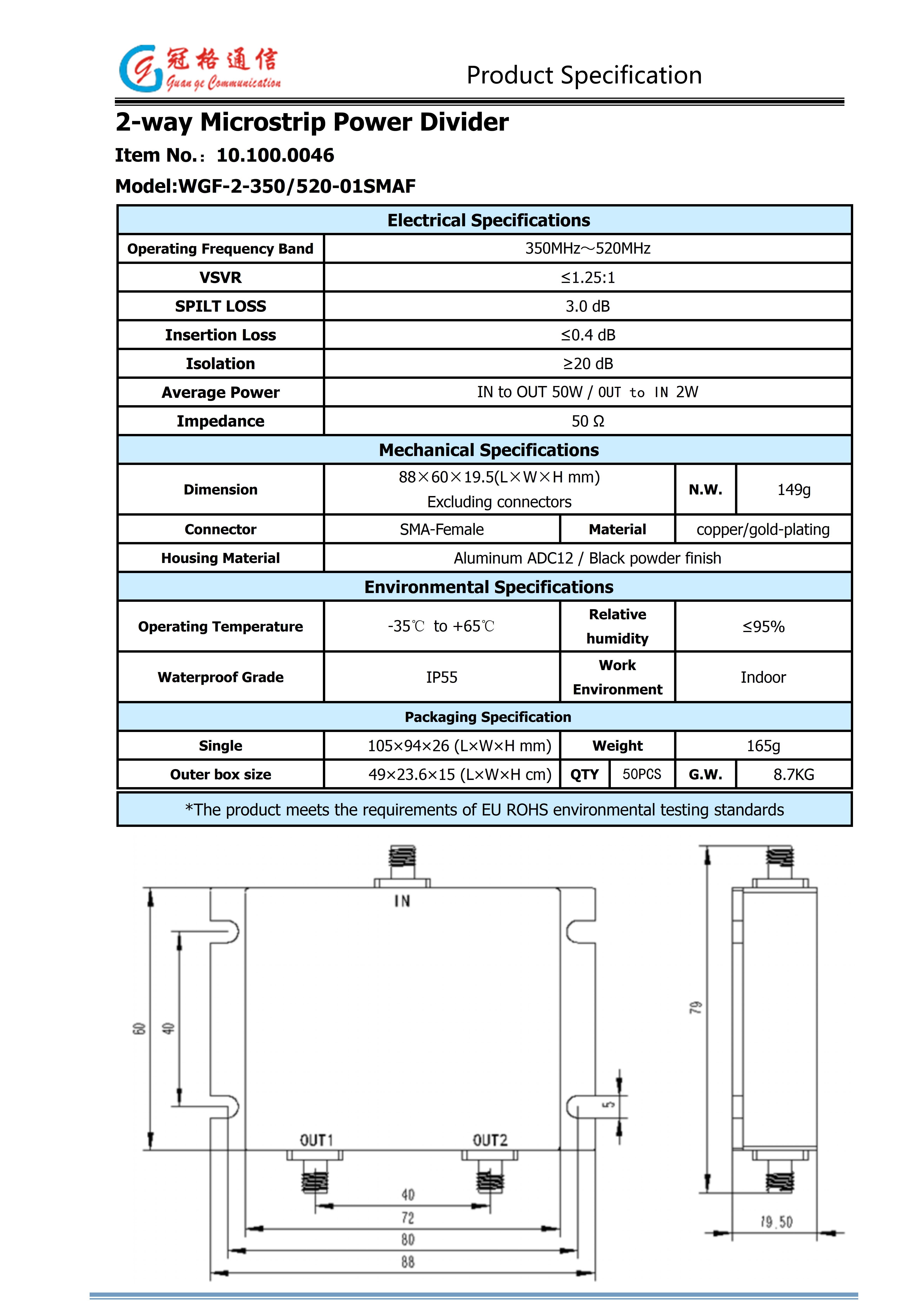

| WGF-2-350/520-01SMAF | 350～520MHz | 2 | ≤1.25:1 | ≤0.4 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |
| WGF-2-350/520-01TNCF | 350～520MHz | 2 | ≤1.25:1 | ≤0.4 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | TNC-F |

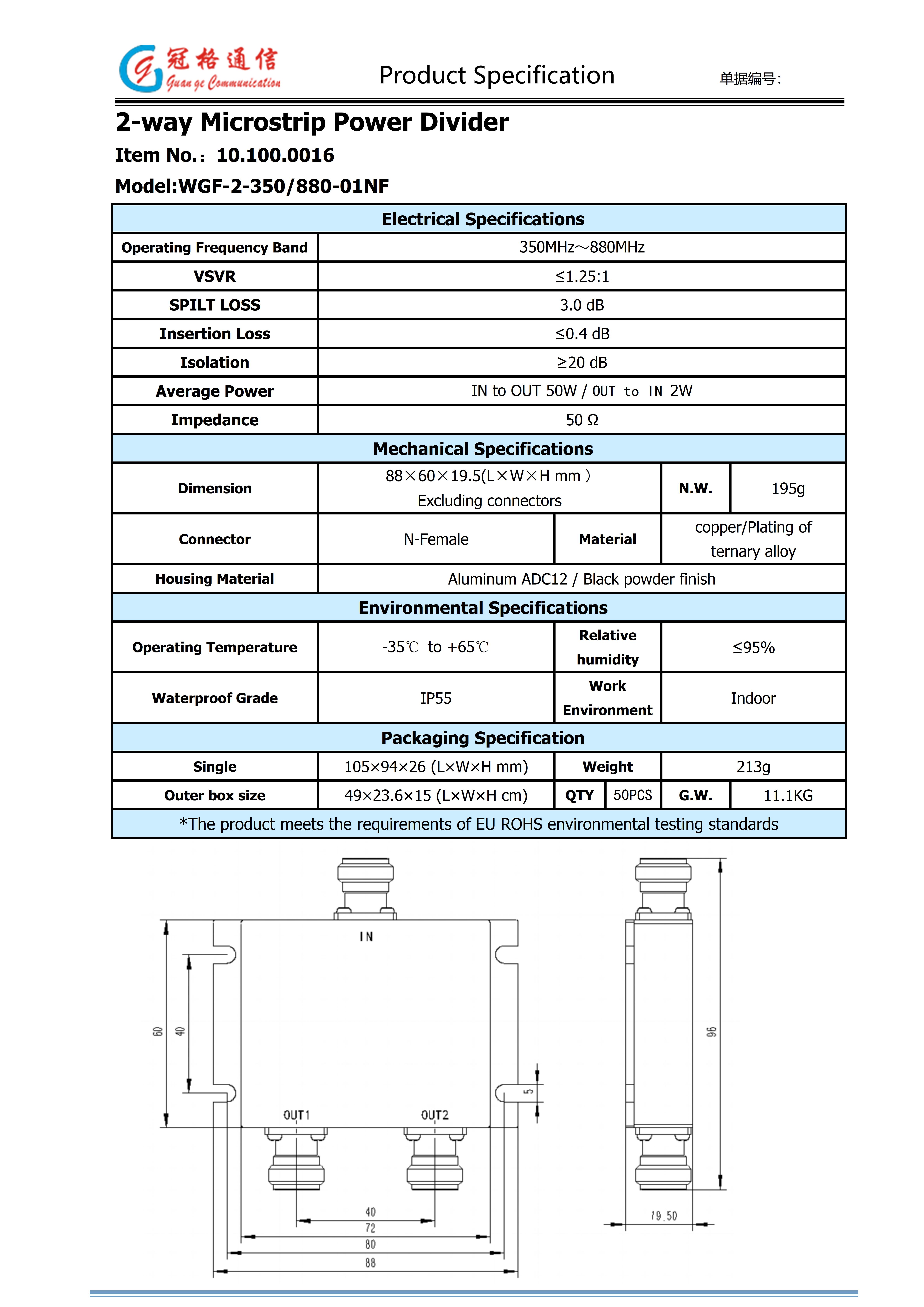

| WGF-2-350/880-01NF | 350～880MHz | 2 | ≤1.25:1 | ≤0.4 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | N-F |

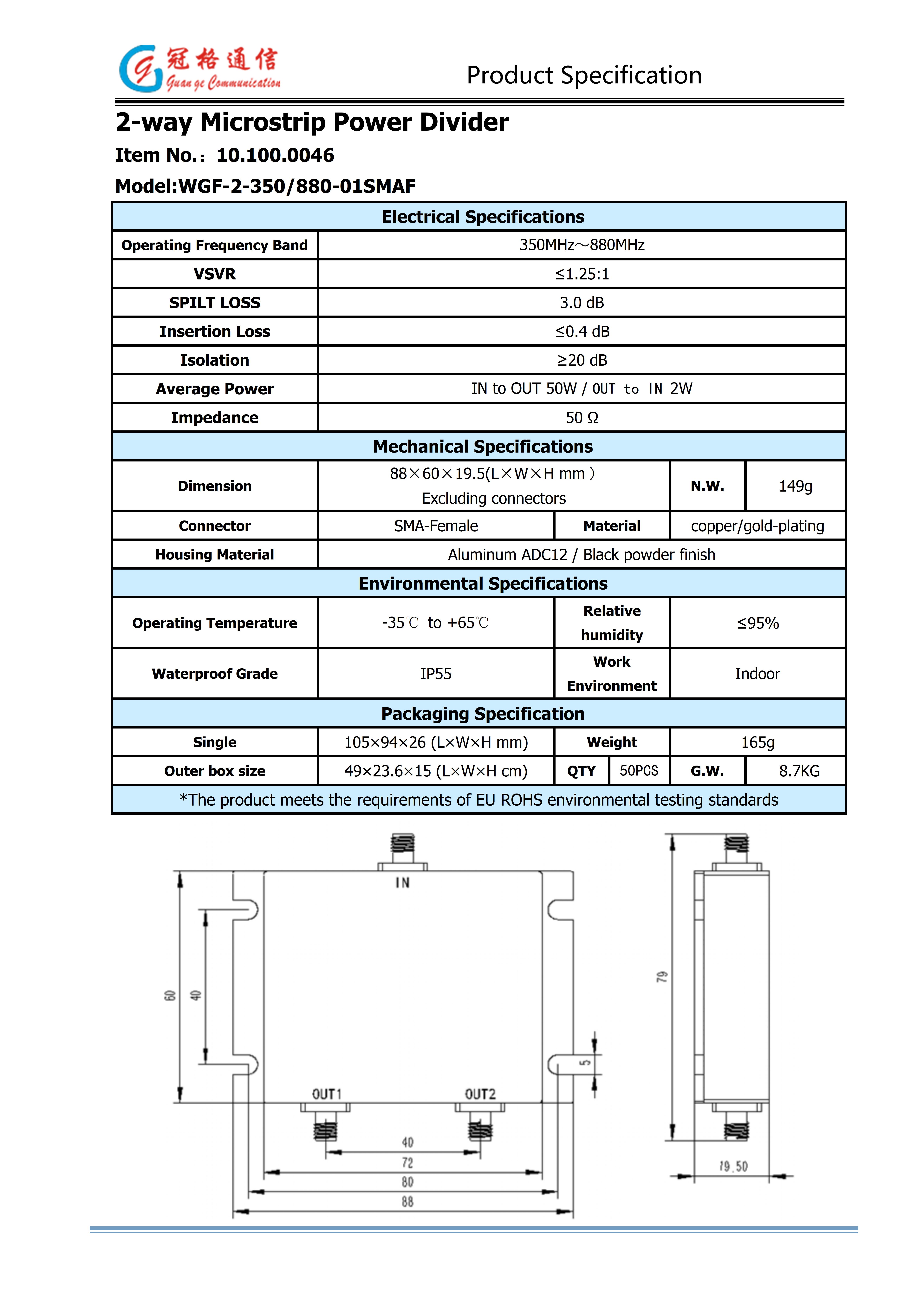

| WGF-2-350/880-01SMAF | 350～880MHz | 2 | ≤1.25:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |
| WGF-2-350/880-01TNCF | 350～880MHz | 2 | ≤1.25:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | TNC-F |

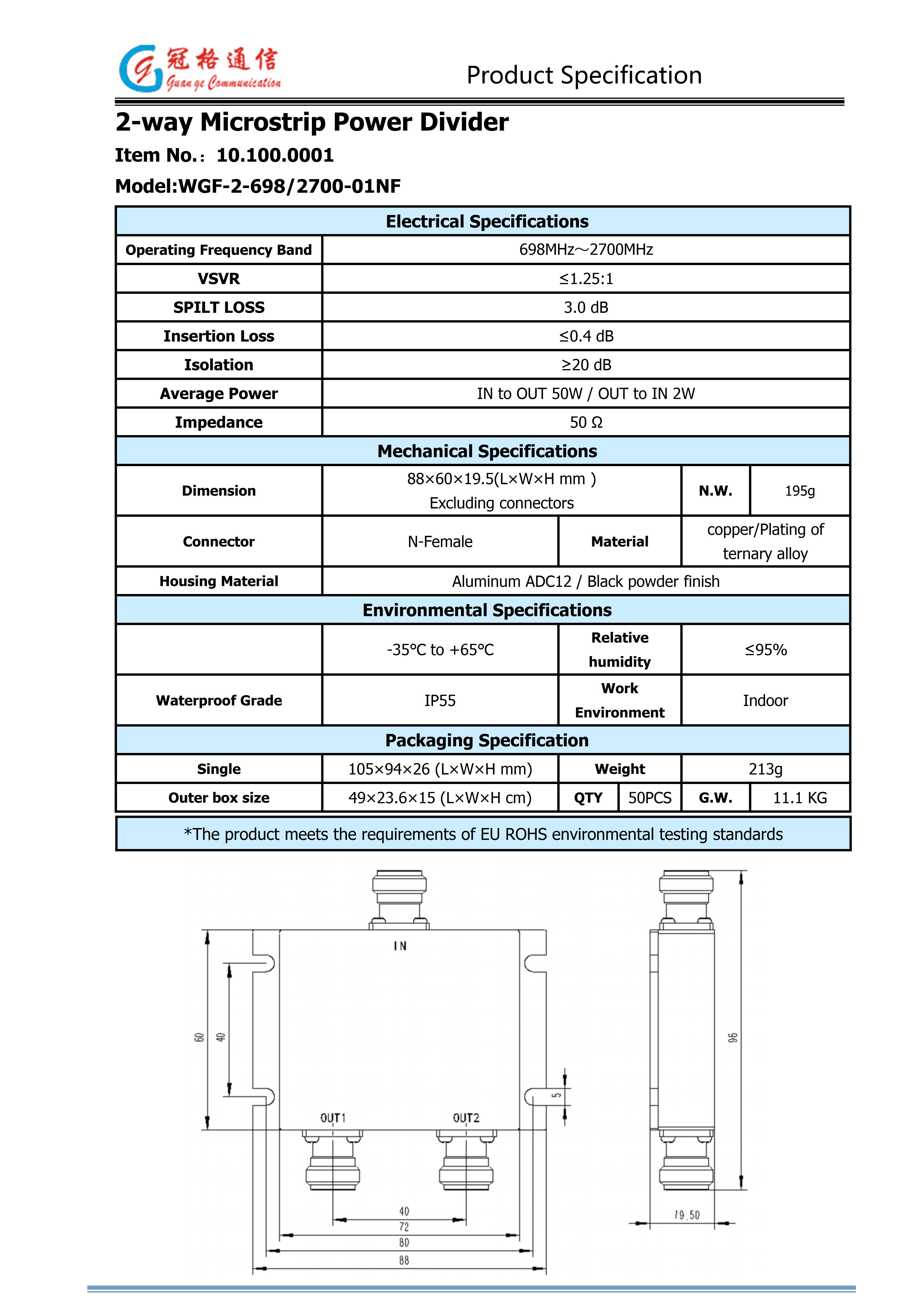

| WGF-2-698/2700-01NF | 698～2700MHz | 2 | ≤1.25:1 | ≤0.4 dB | ≥20 dB | 50W | 50 Ω | N-F |

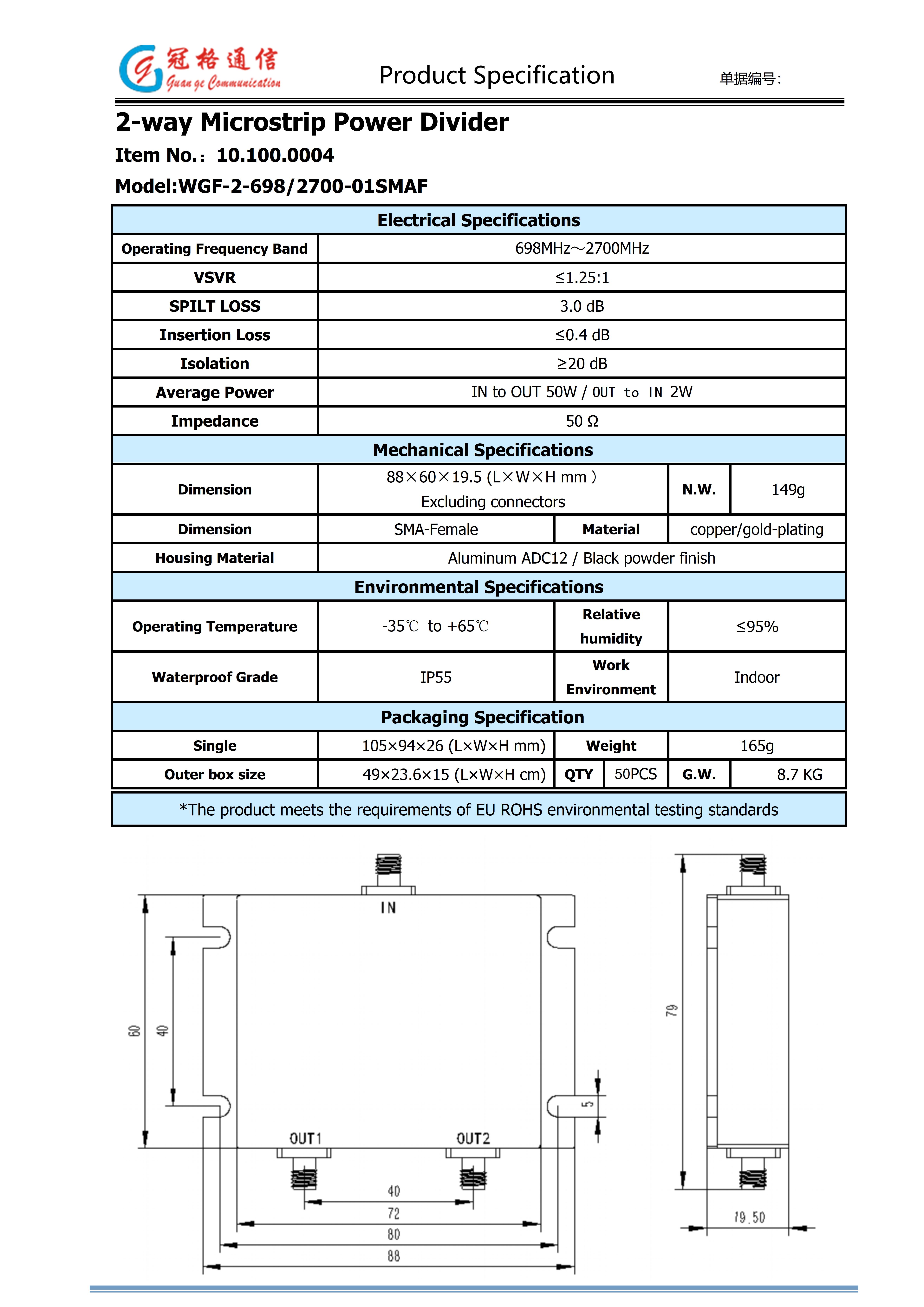

| WGF-2-698/2700-01SMAF | 698～2700MHz | 2 | ≤1.25:1 | ≤0.4 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |

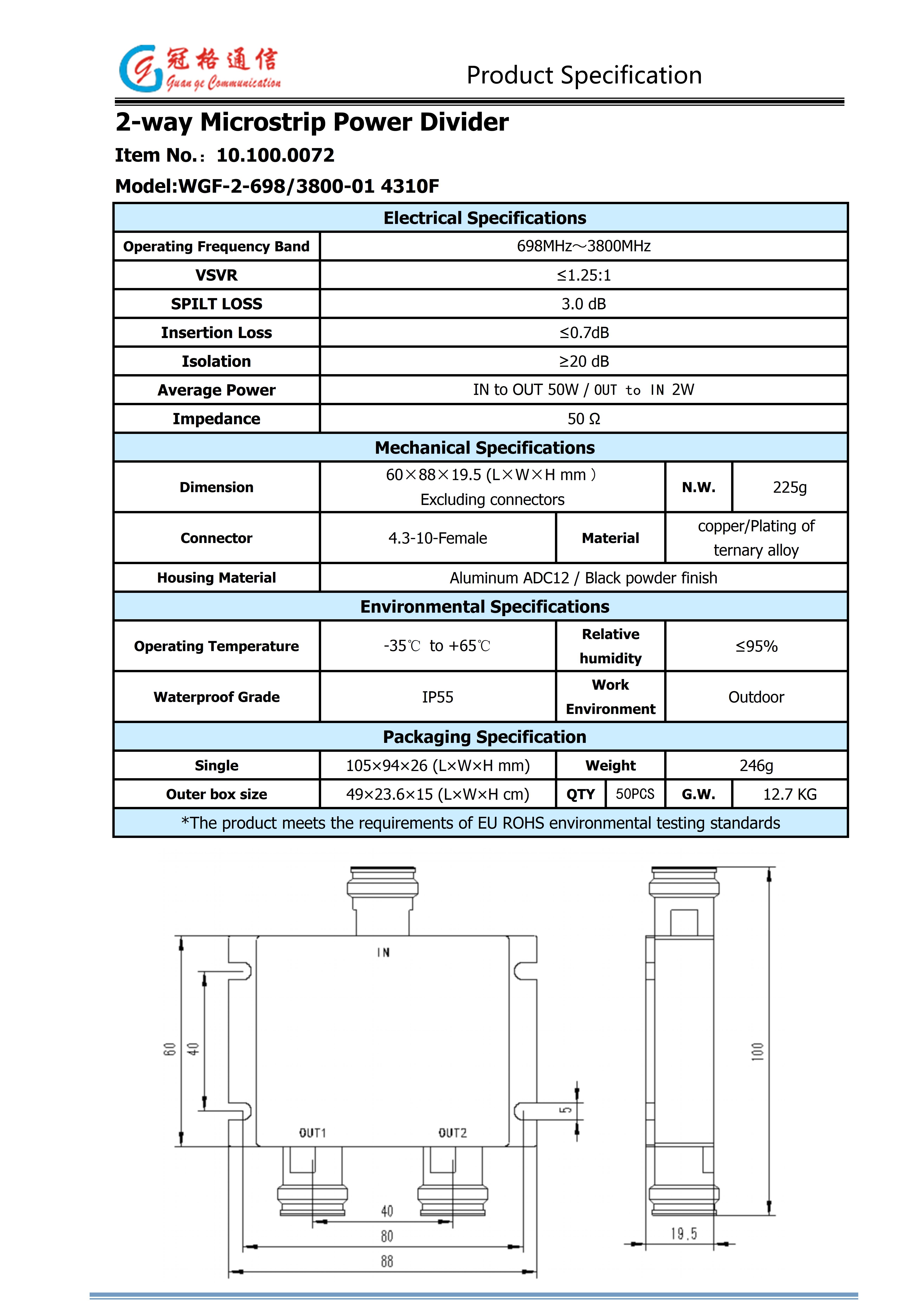

| WGF-2-698/3800-01 4310F | 698～3800MHz | 2 | ≤1.25:1 | ≤0.7 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | 4310-F |

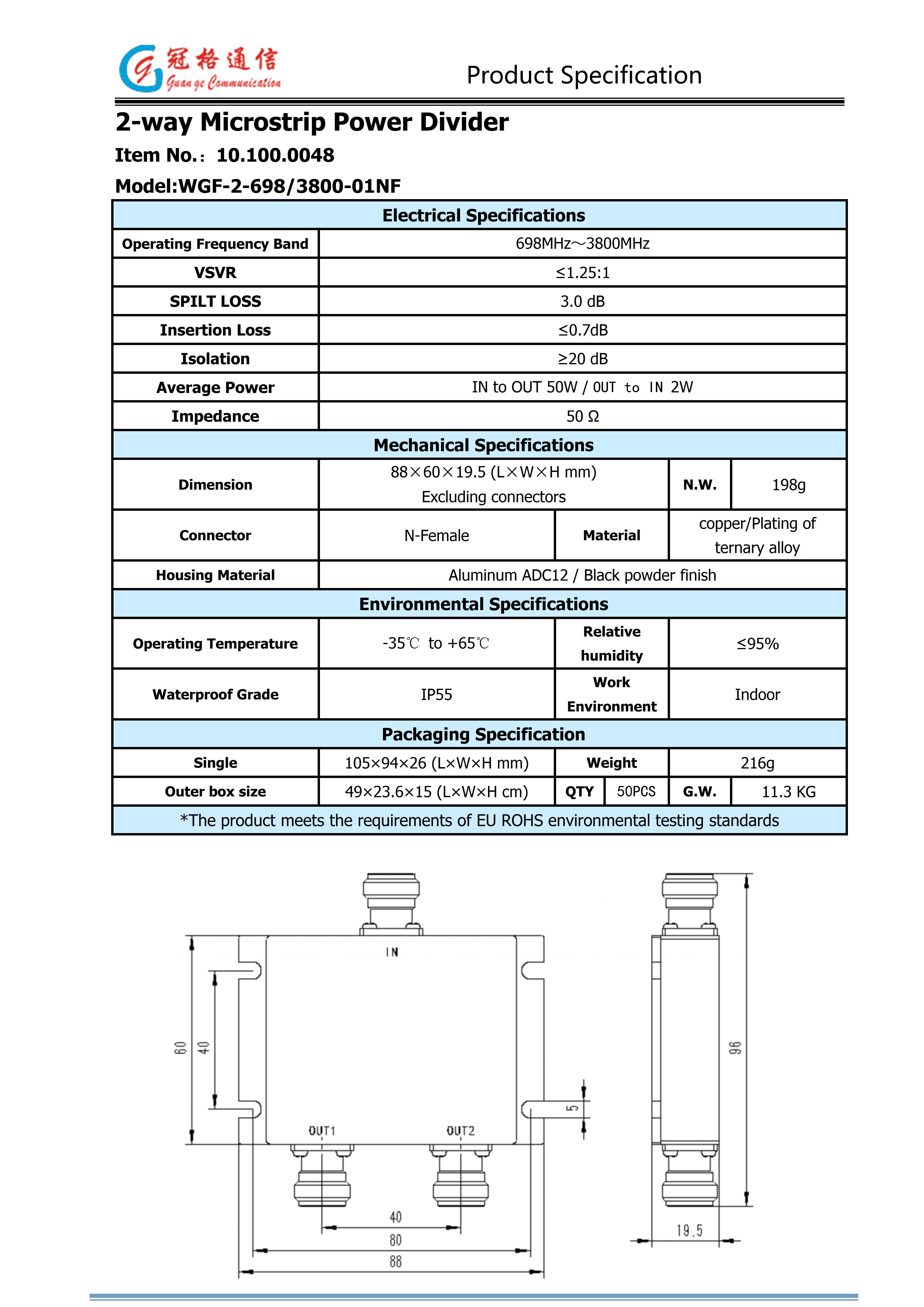

| WGF-2-698/3800-01NF | 698～3800MHz | 2 | ≤1.25:1 | ≤0.7 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | N-F |

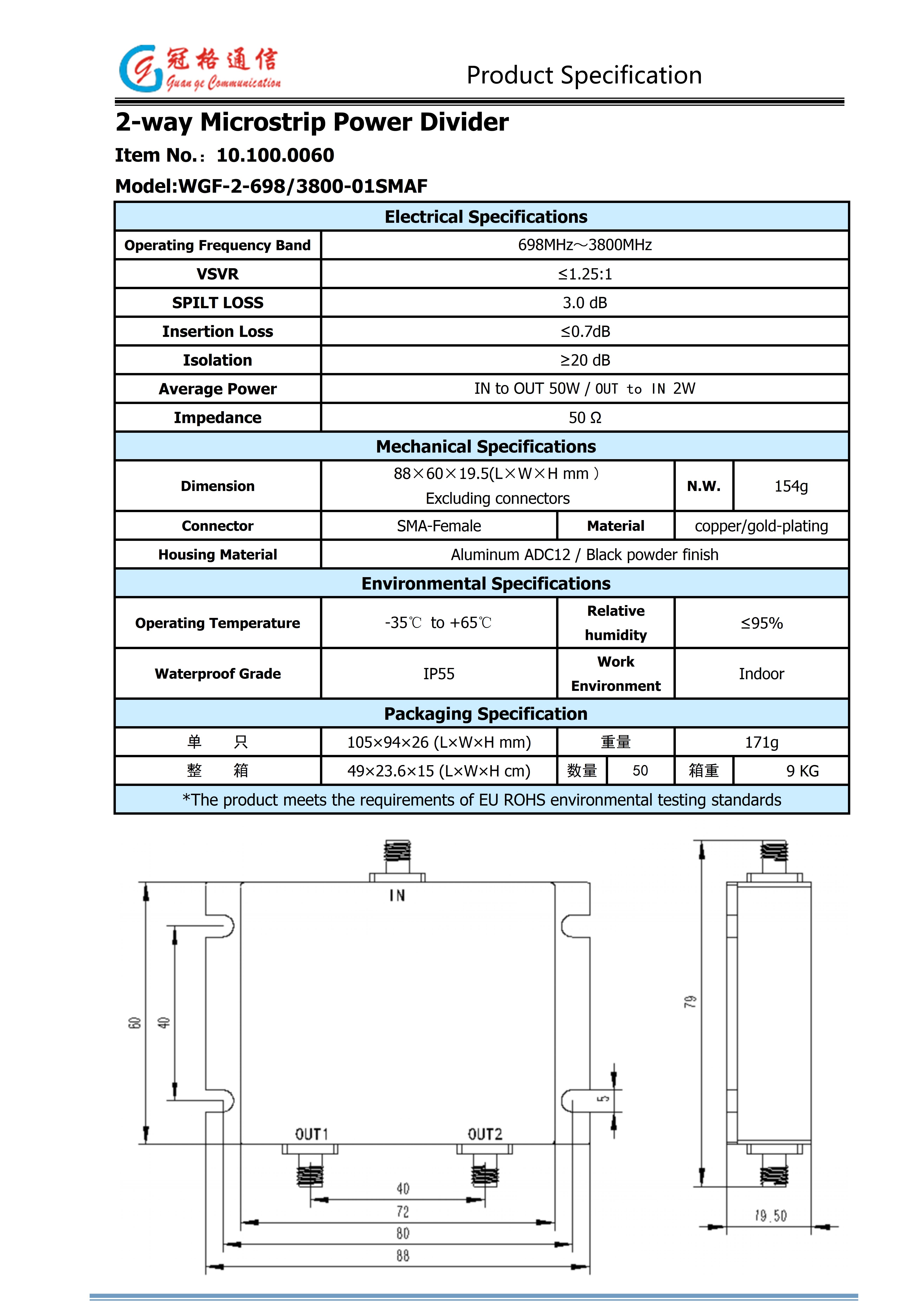

| WGF-2-698/3800-01SMAF | 698～3800MHz | 2 | ≤1.25:1 | ≤0.7 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |
| WGF-2-1100/1700-01NF | 1100～1700MHz | 2 | ≤1.22:1 | ≤0.3 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | N-F |

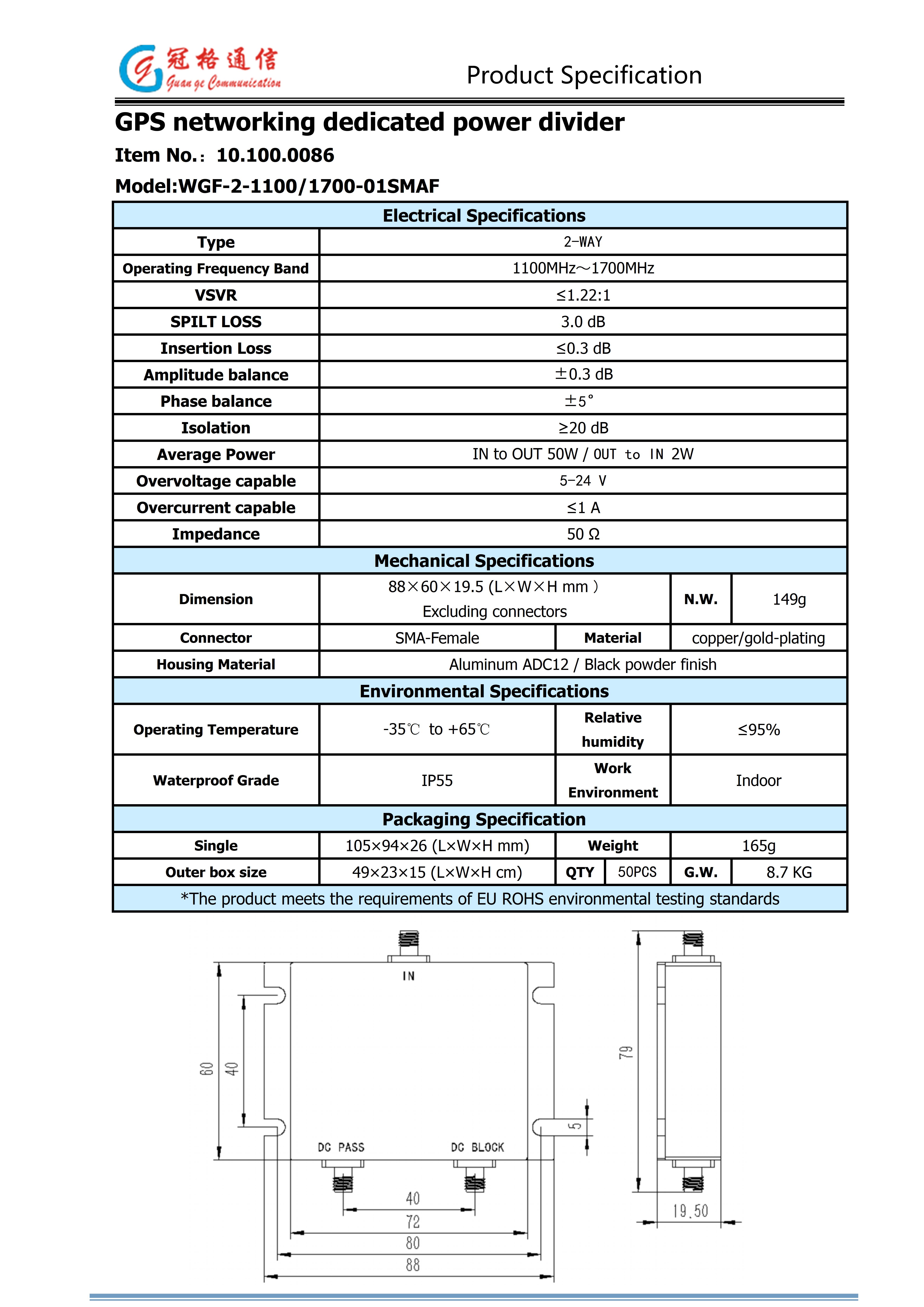

| WGF-2-1100/1700-01SMAF | 1100～1700MHz | 2 | ≤1.22:1 | ≤0.3 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |

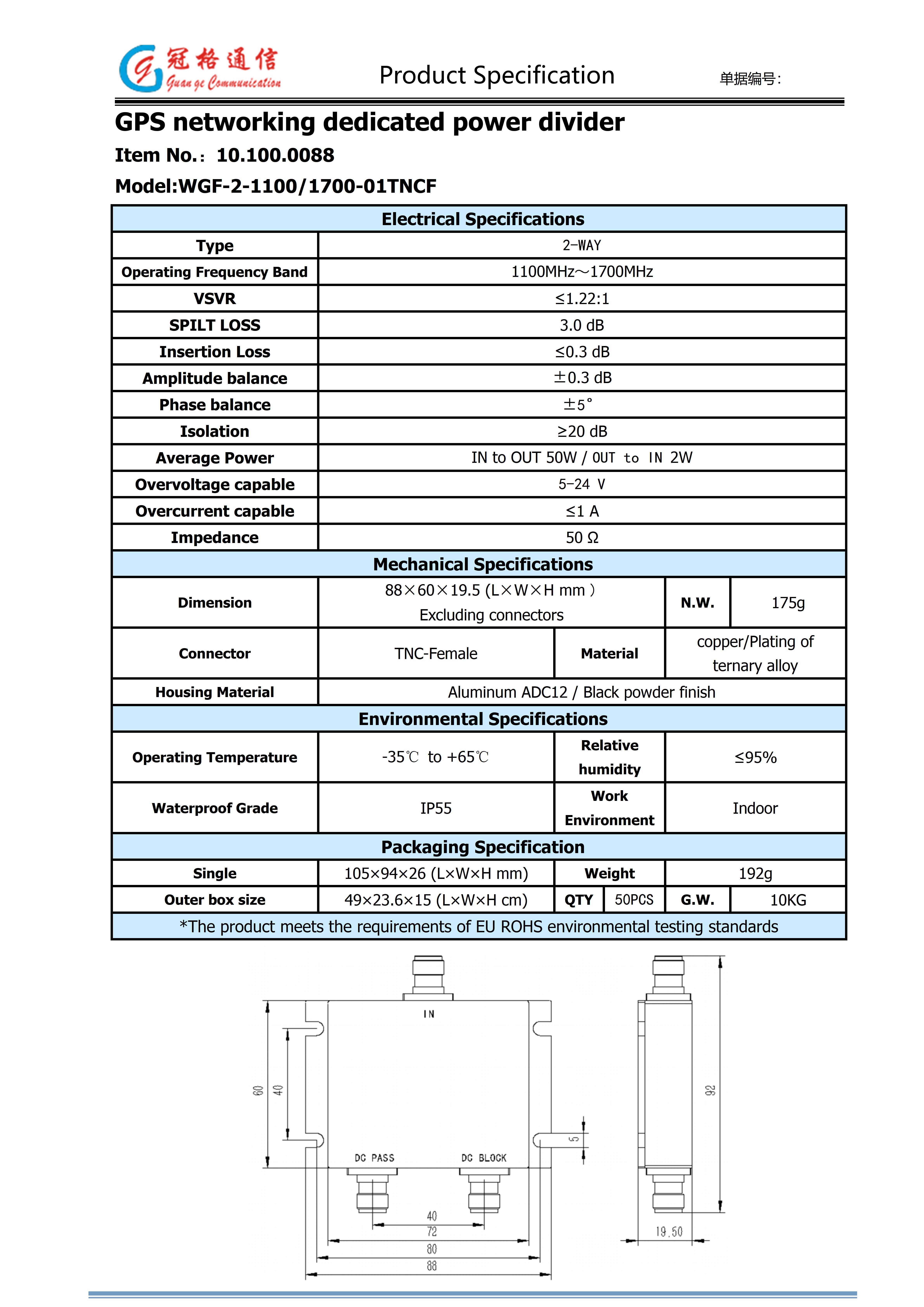

| WGF-2-1100/1700-01TNCF | 1100～1700MHz | 2 | ≤1.22:1 | ≤0.3 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | TNC-F |

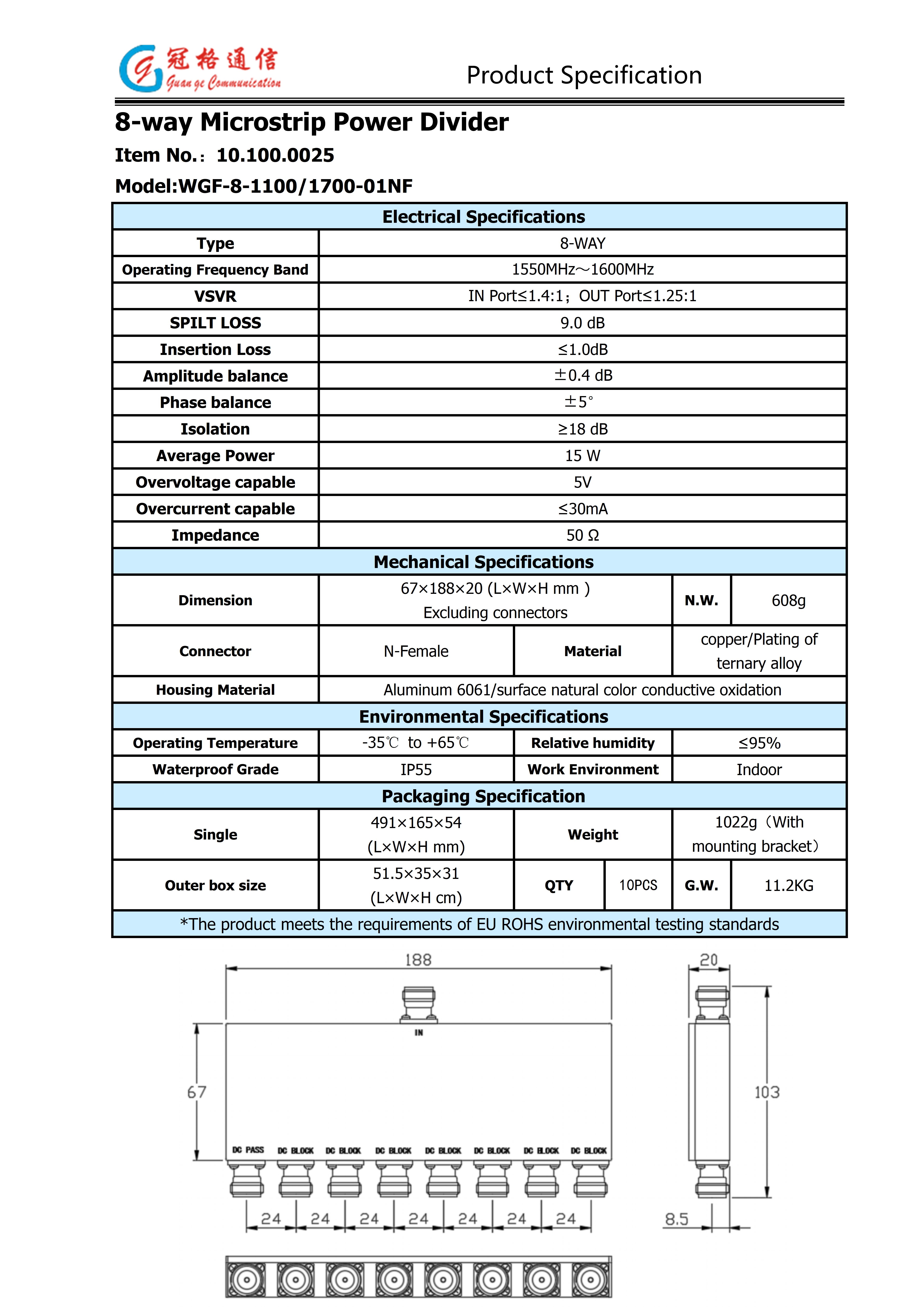

| WGF-8-1550/1600-01NF | 1550～1600MHz | 8 | IN Port ≤1.4:1 OUT Port ≤1.25:1 |
≤1.0 dB | ≥18 dB | 15W | 50 Ω | N-F |

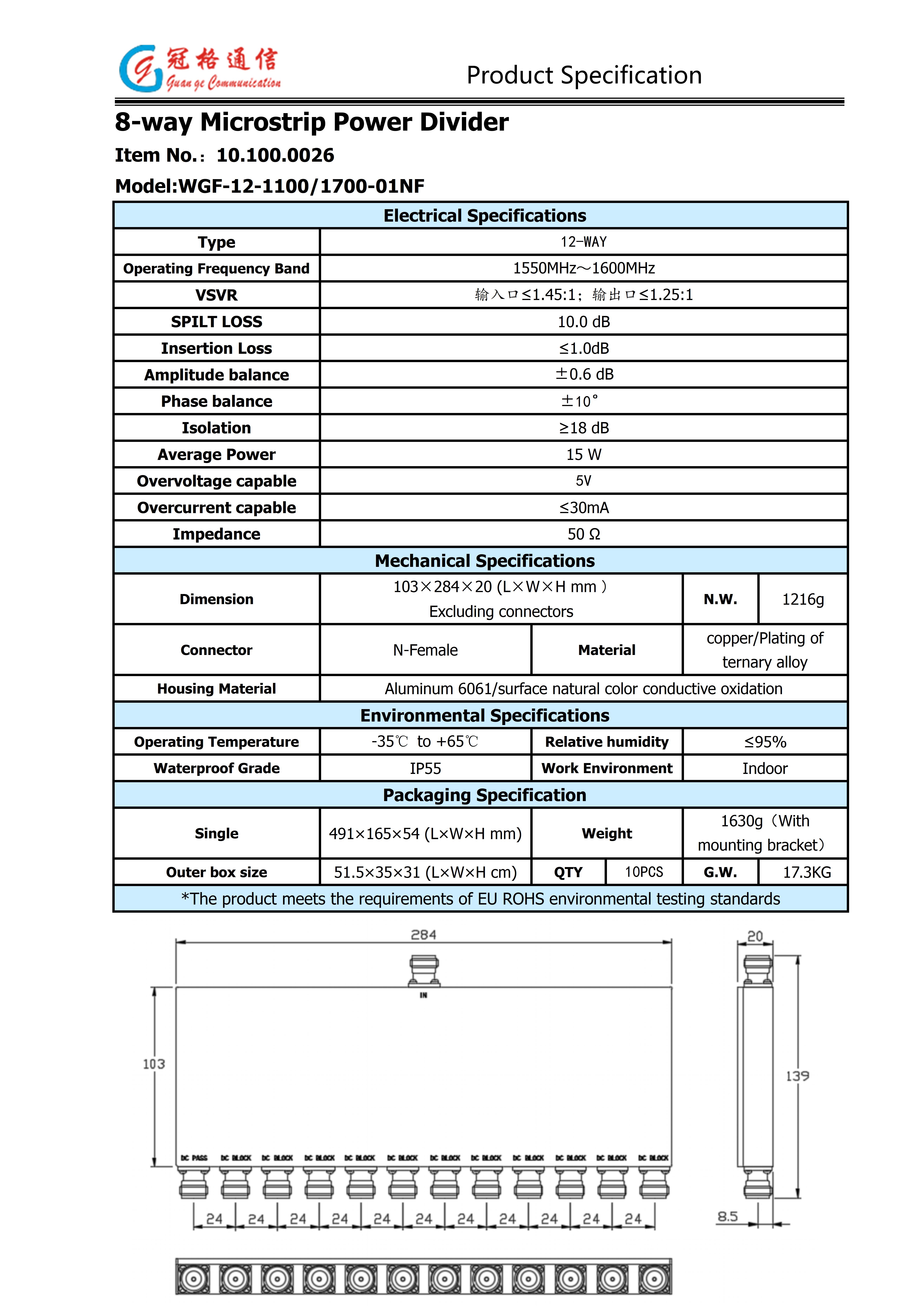

| WGF-12-1550/1600-01NF | 1550～1600MHz | 12 | IN Port ≤1.45:1 OUT Port ≤1.25:1 |
≤1.0 dB | ≥18 dB | 15W | 50 Ω | N-F |

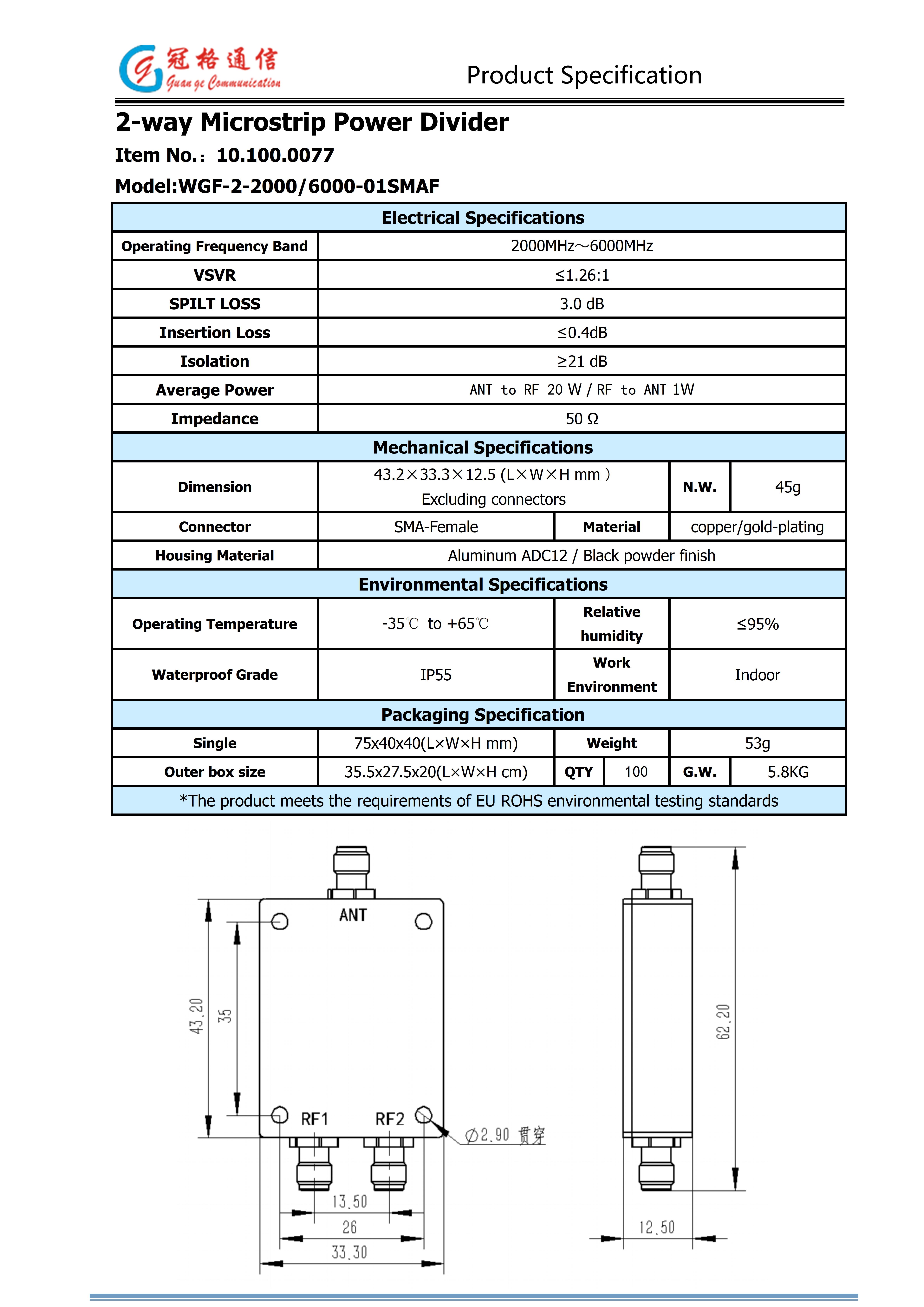

| WGF-2-2000/6000-01SMAF | 2GHz～6GHz | 2 | ≤1.30:1 | ≤0.4 dB | ≥21 dB | Splitting 20W / combining 1W | 50 Ω | SMA-F |

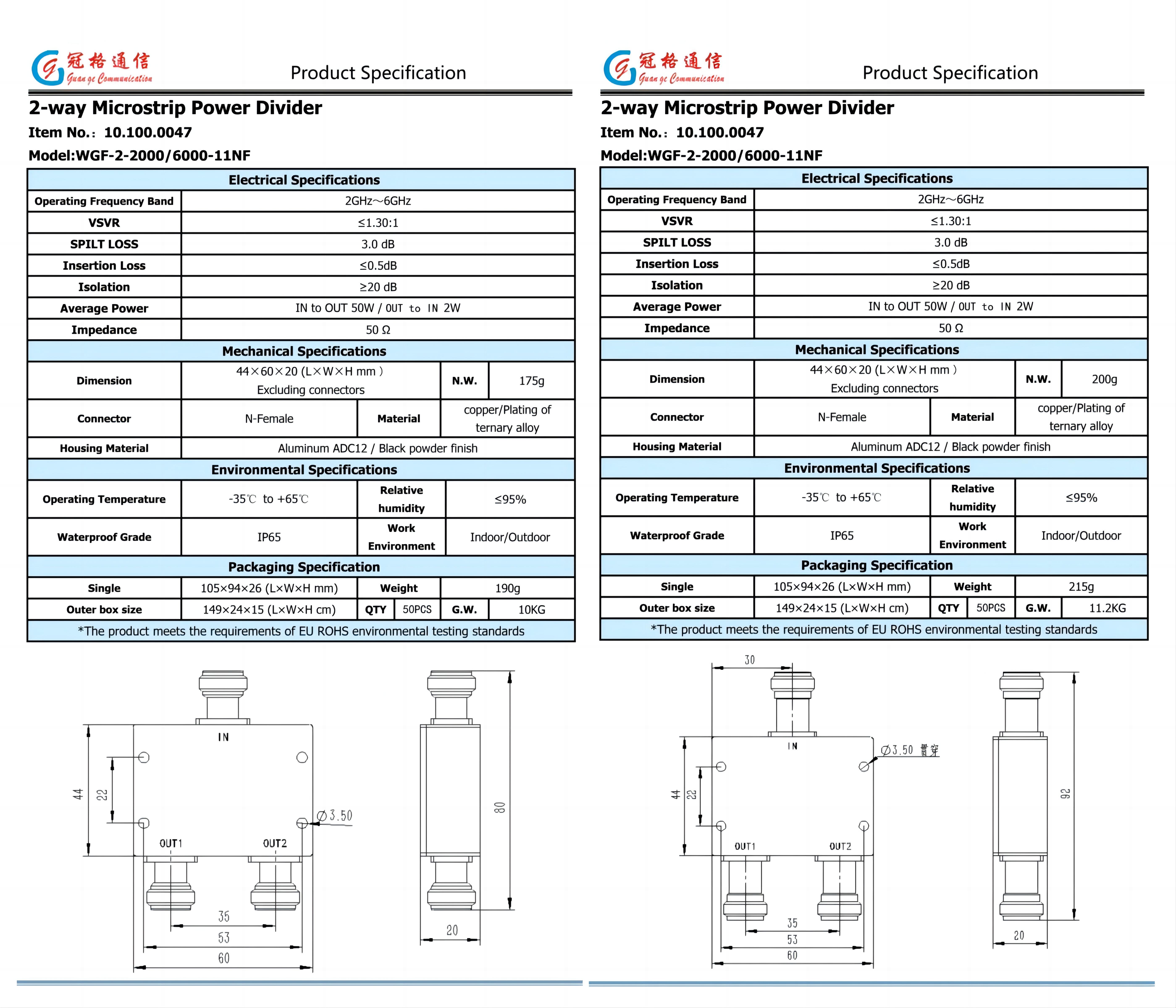

| WGF-2-2000/6000-11NF | 2GHz～6GHz | 2 | ≤1.30:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | N-F |
| WGF-3-136/174-01NF | 136～174MHz | 3 | ≤1.30:1 | ≤0.6 dB | ≥18 dB | Splitting 50W / combining 2W | 50 Ω | N-F |
| WGF-3-350/520-01NF | 350～520MHz | 3 | ≤1.30:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | N-F |

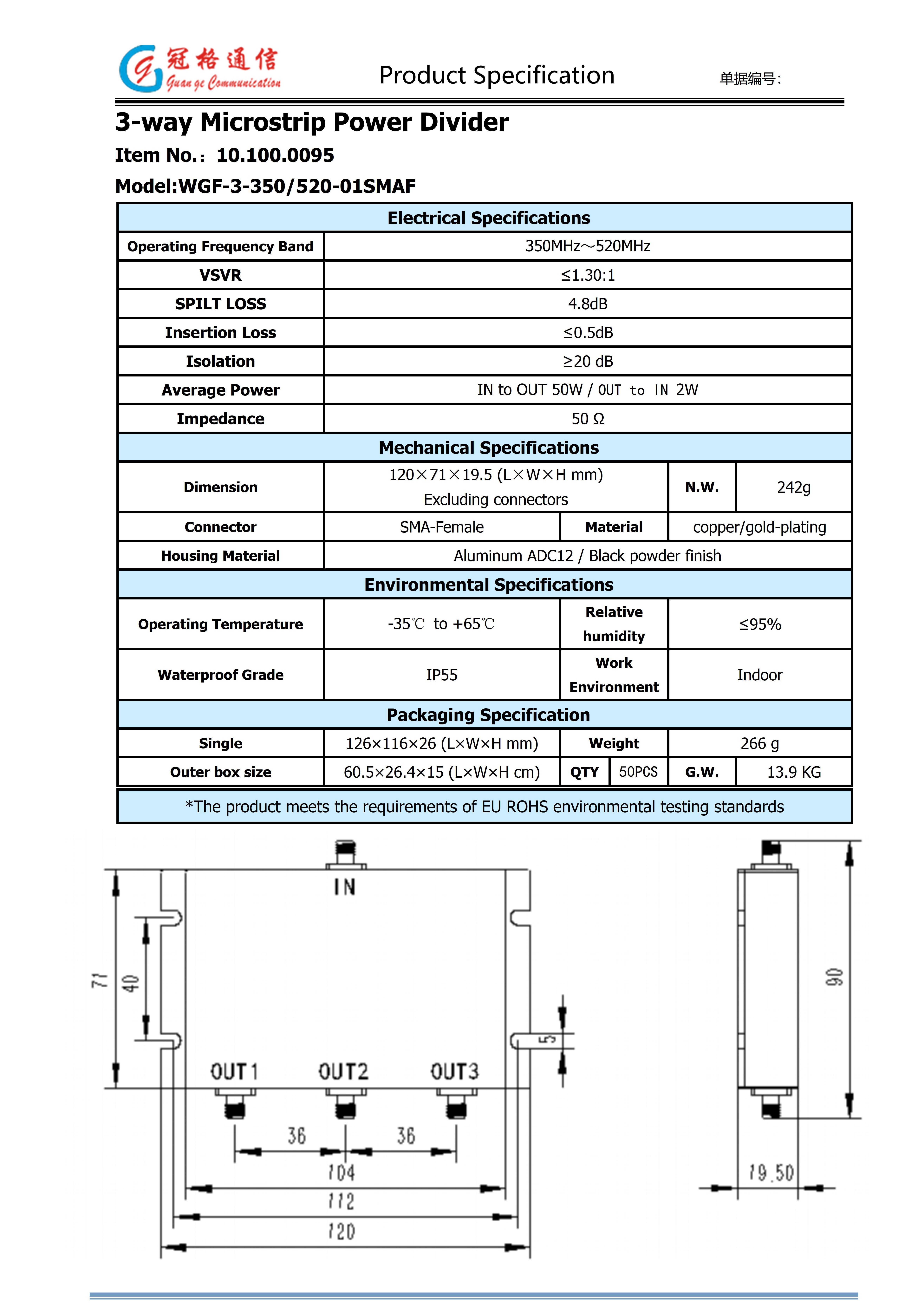

| WGF-3-350/520-01SMAF | 350～520MHz | 3 | ≤1.30:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |
| WGF-3-350/520-01TNCF | 350～520MHz | 3 | ≤1.30:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | TNC-F |
| WGF-3-350/880-01NF | 350～880MHz | 3 | ≤1.30:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | N-F |

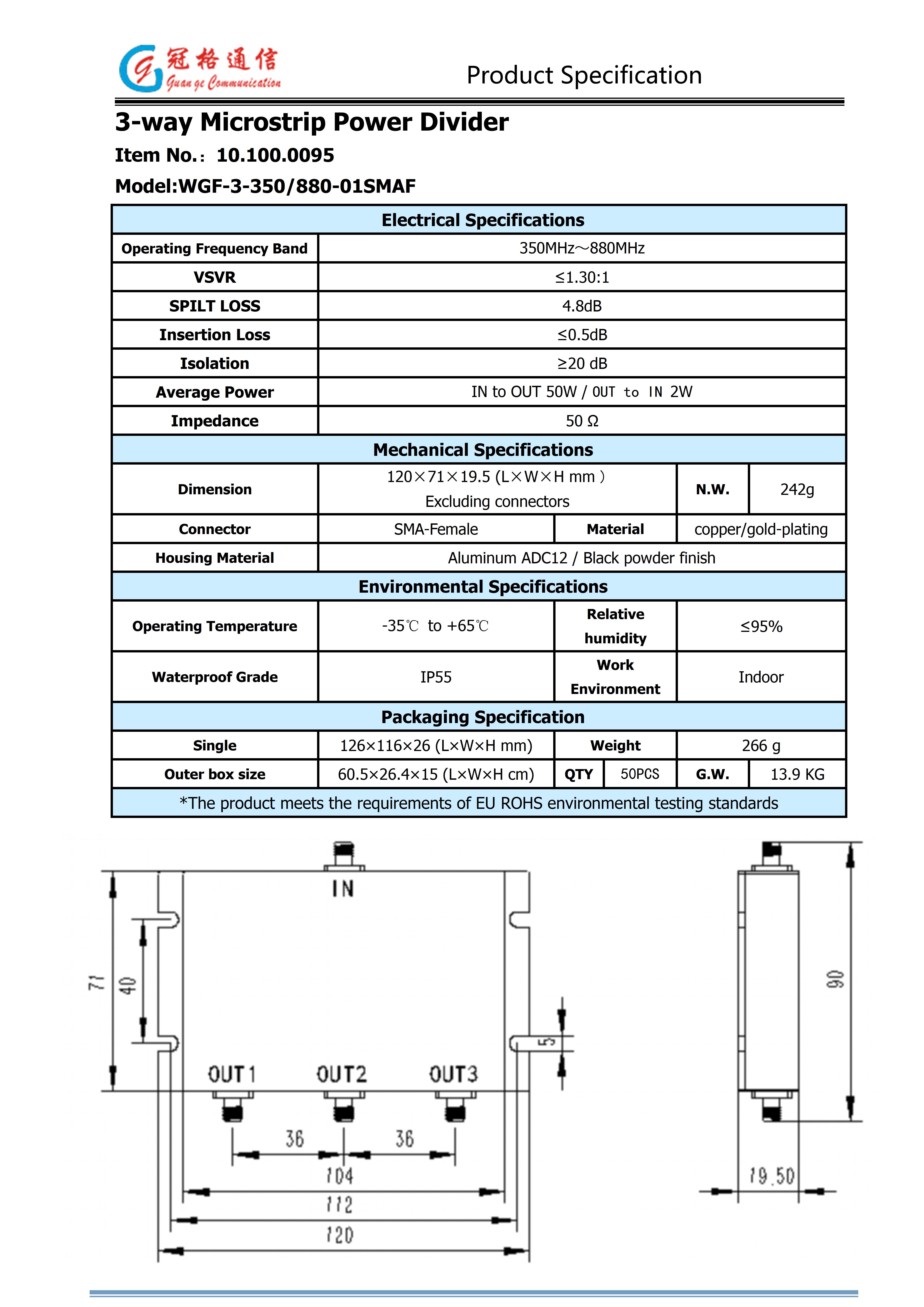

| WGF-3-350/880-01SMAF | 350～880MHz | 3 | ≤1.30:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |
| WGF-3-350/880-01TNCF | 350～880MHz | 3 | ≤1.30:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | TNC-F |

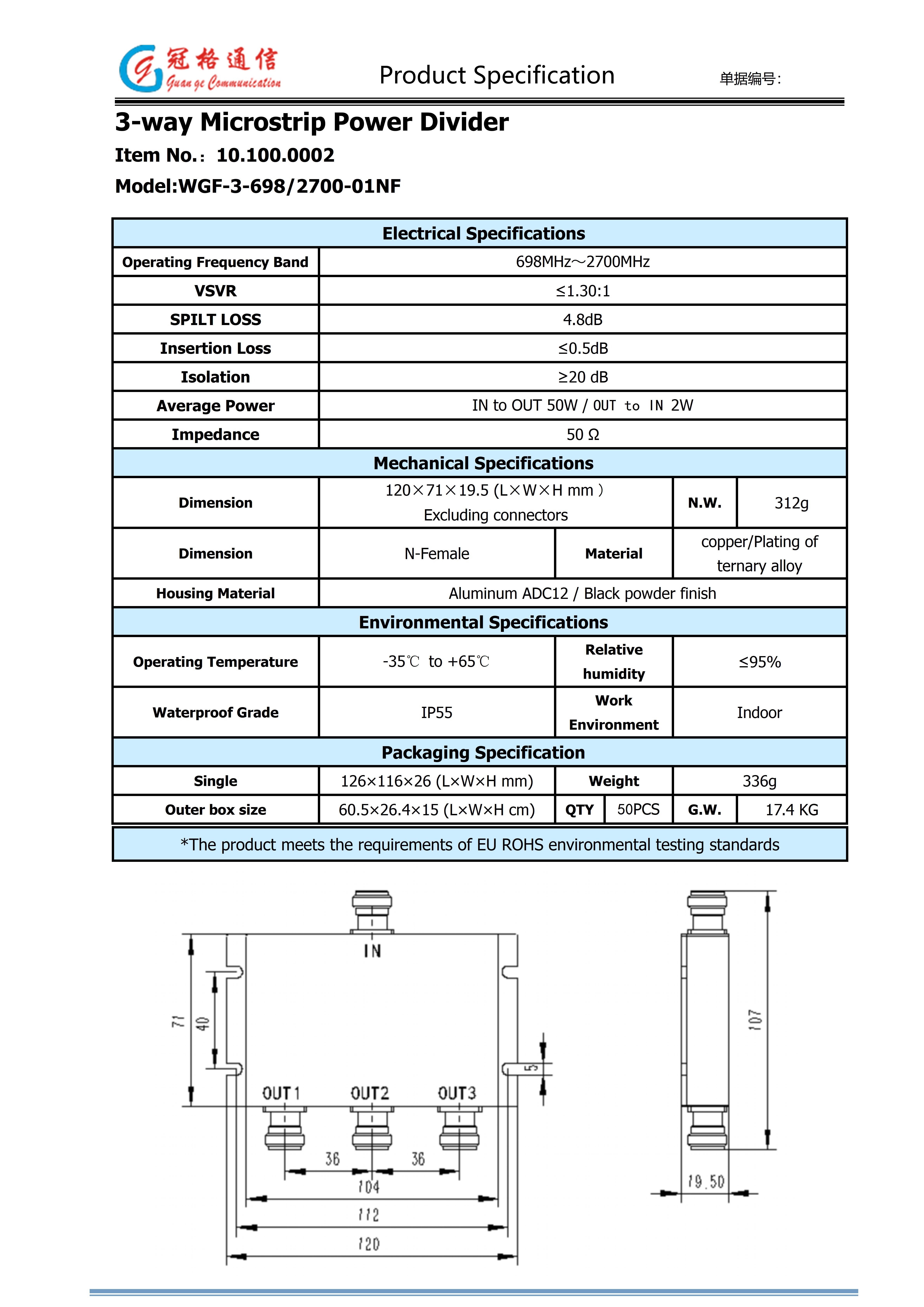

| WGF-3-698/2700-01NF | 698～2700MHz | 3 | ≤1.30:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | N-F |
| WGF-3-698/2700-01SMAF | 698～2700MHz | 3 | ≤1.30:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |

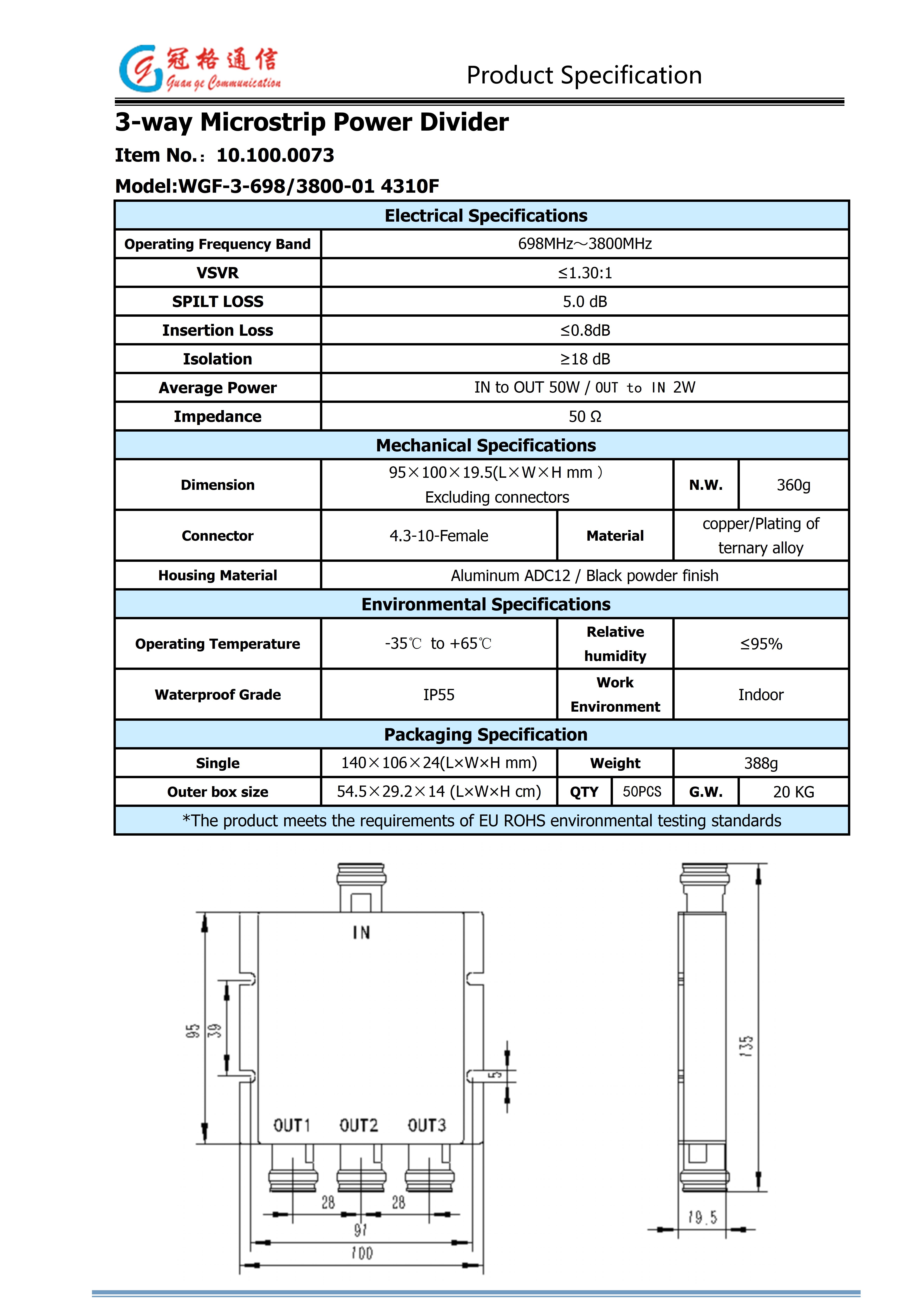

| WGF-3-698/3800-01 4310F | 698～3800MHz | 3 | ≤1.30:1 | ≤0.8 dB | ≥18 dB | Splitting 50W / combining 2W | 50 Ω | 4310-F |
| WGF-3-698/3800-01NF | 698～3800MHz | 3 | ≤1.30:1 | ≤0.8 dB | ≥18 dB | Splitting 50W / combining 2W | 50 Ω | N-F |

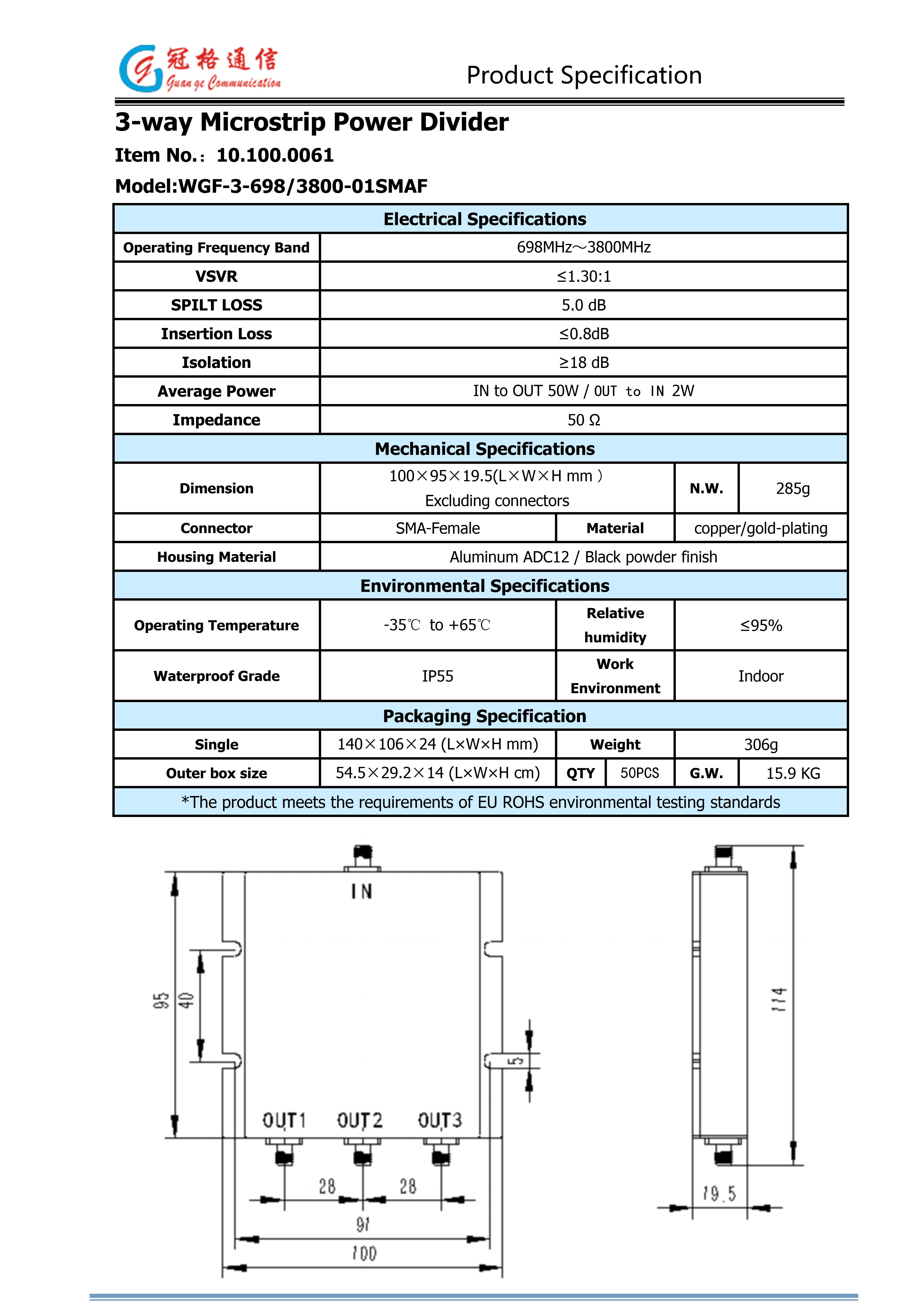

| WGF-3-698/3800-01SMAF | 698～3800MHz | 3 | ≤1.30:1 | ≤0.8 dB | ≥18 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |

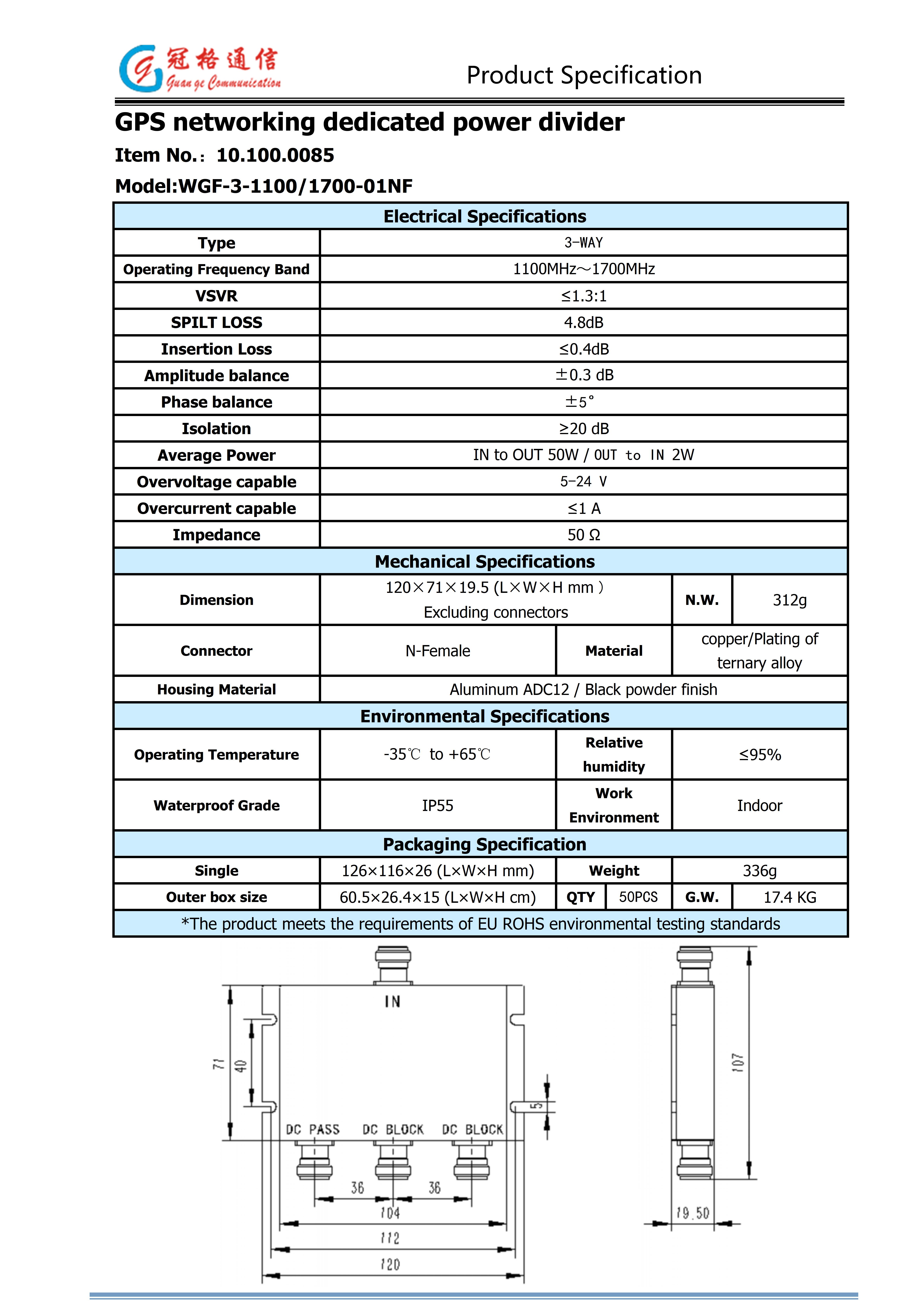

| WGF-3-1100/1700-01NF | 1100～1700MHz | 3 | ≤1.30:1 | ≤0.4 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | N-F |

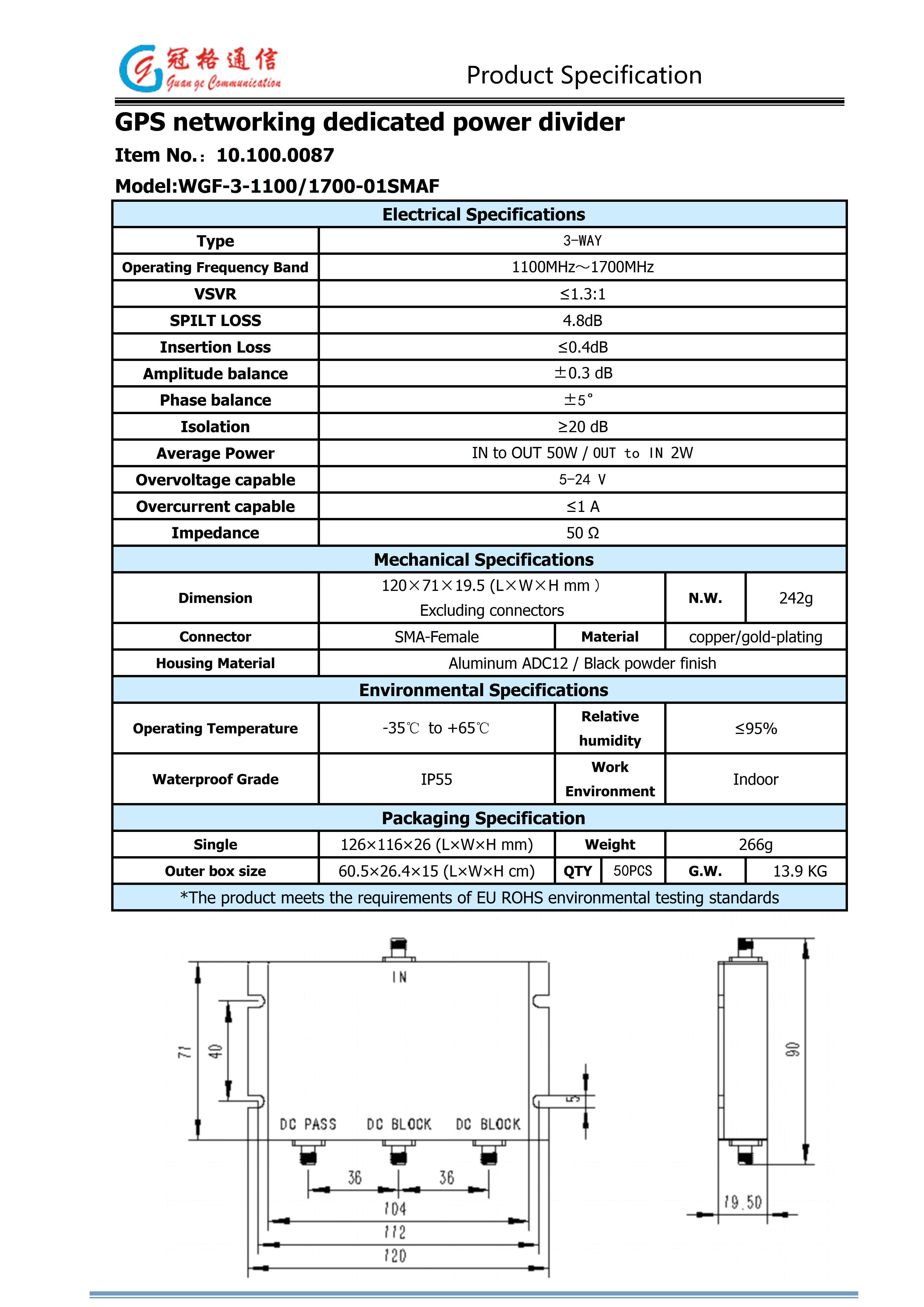

| WGF-3-1100/1700-01SMAF | 1100～1700MHz | 3 | ≤1.30:1 | ≤0.4 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |
| WGF-3-1100/1700-01TNCF | 1100～1700MHz | 3 | ≤1.30:1 | ≤0.4 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | TNC-F |

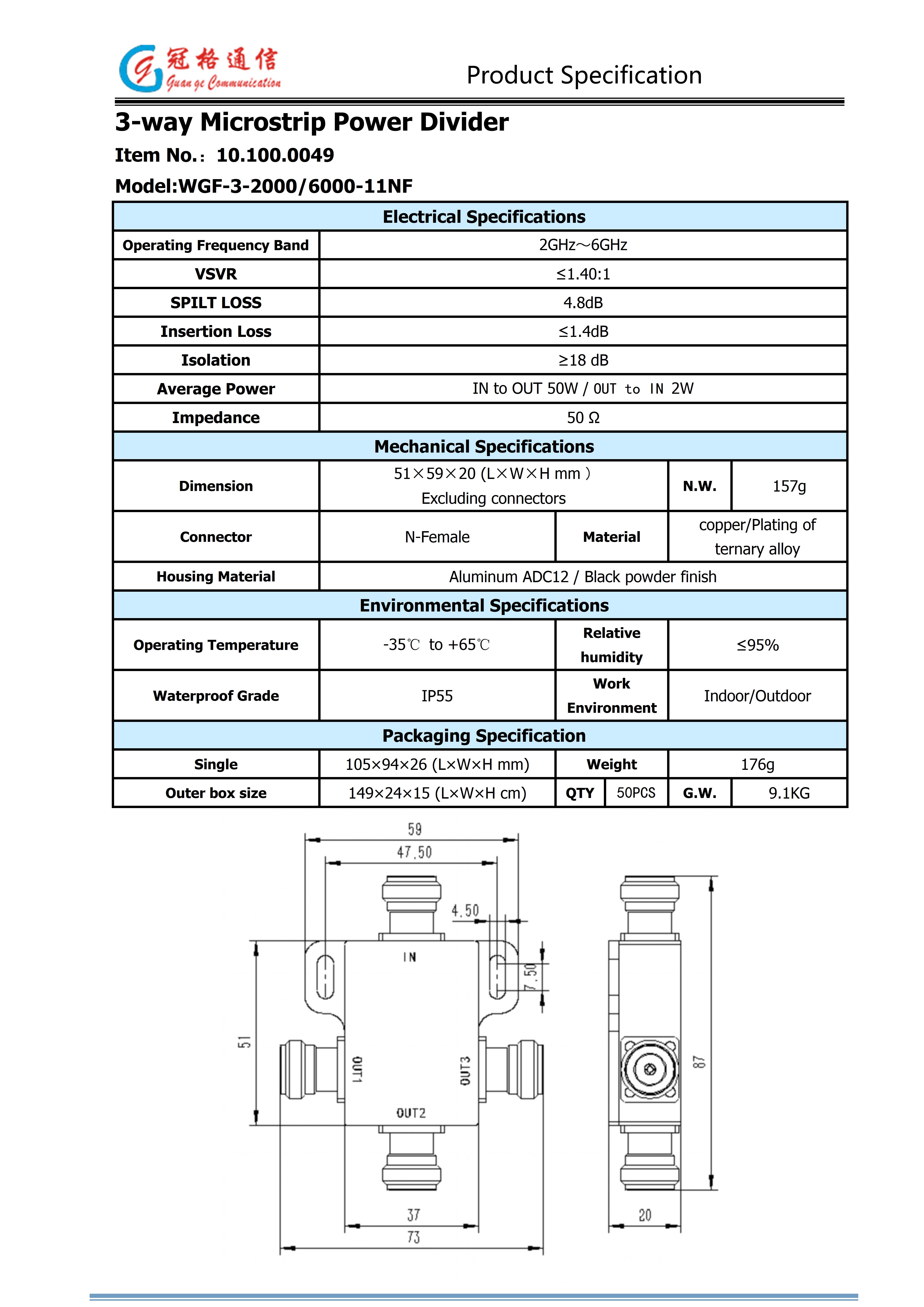

| WGF-3-2000/6000-11NF | 2GHz～6GHz | 3 | ≤1.40:1 | ≤1.4 dB | ≥18 dB | Splitting 50W / combining 2W | 50 Ω | N-F |

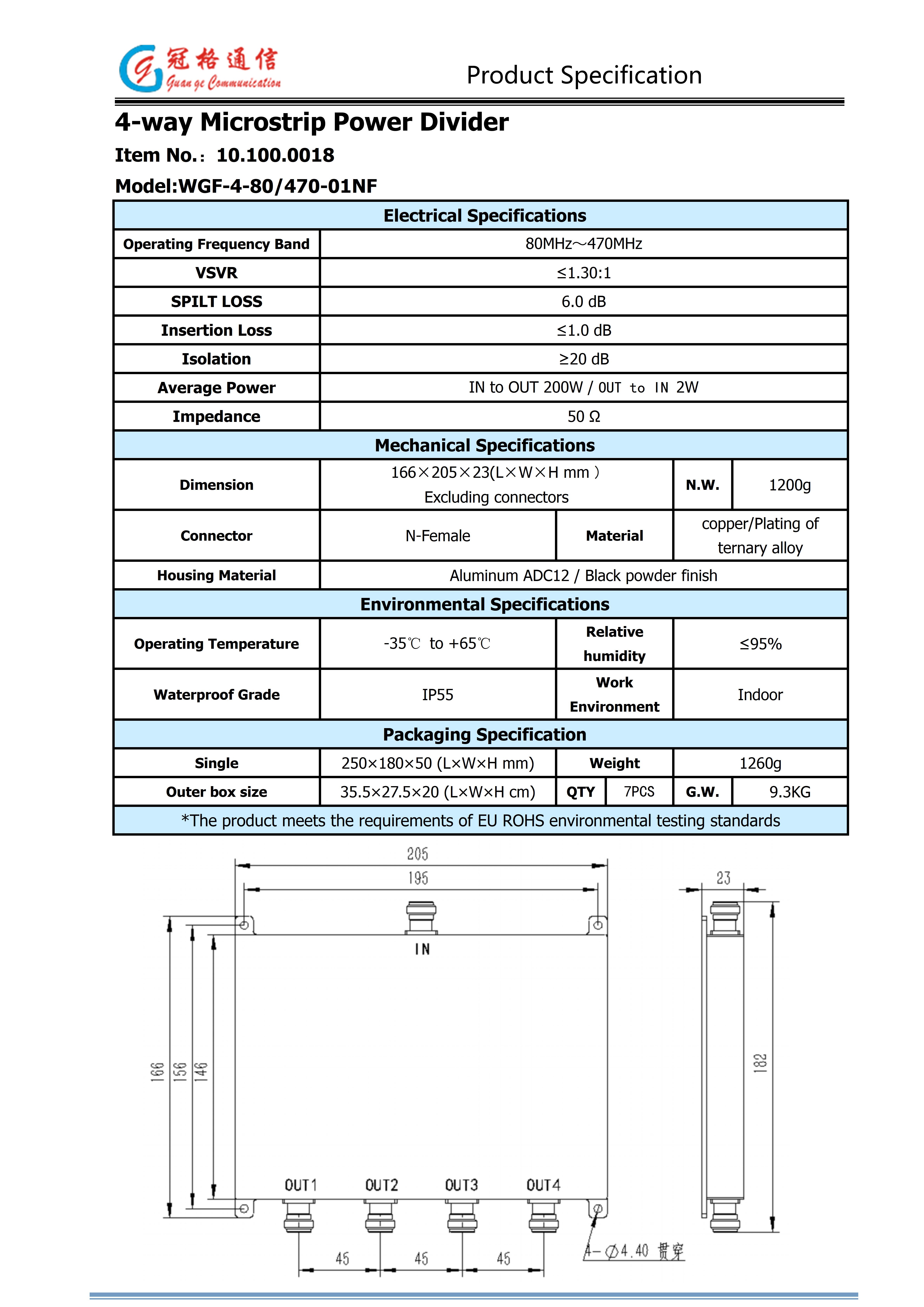

| WGF-4-80/470-01NF | 80～470MHz | 4 | ≤1.30:1 | ≤1.0 dB | ≥20 dB | Splitting 200W / combining 2W | 50 Ω | N-F |
| WGF-4-136/174-01NF | 136～174MHz | 4 | ≤1.30:1 | ≤0.6 dB | ≥18 dB | Splitting 50W / combining 2W | 50 Ω | N-F |

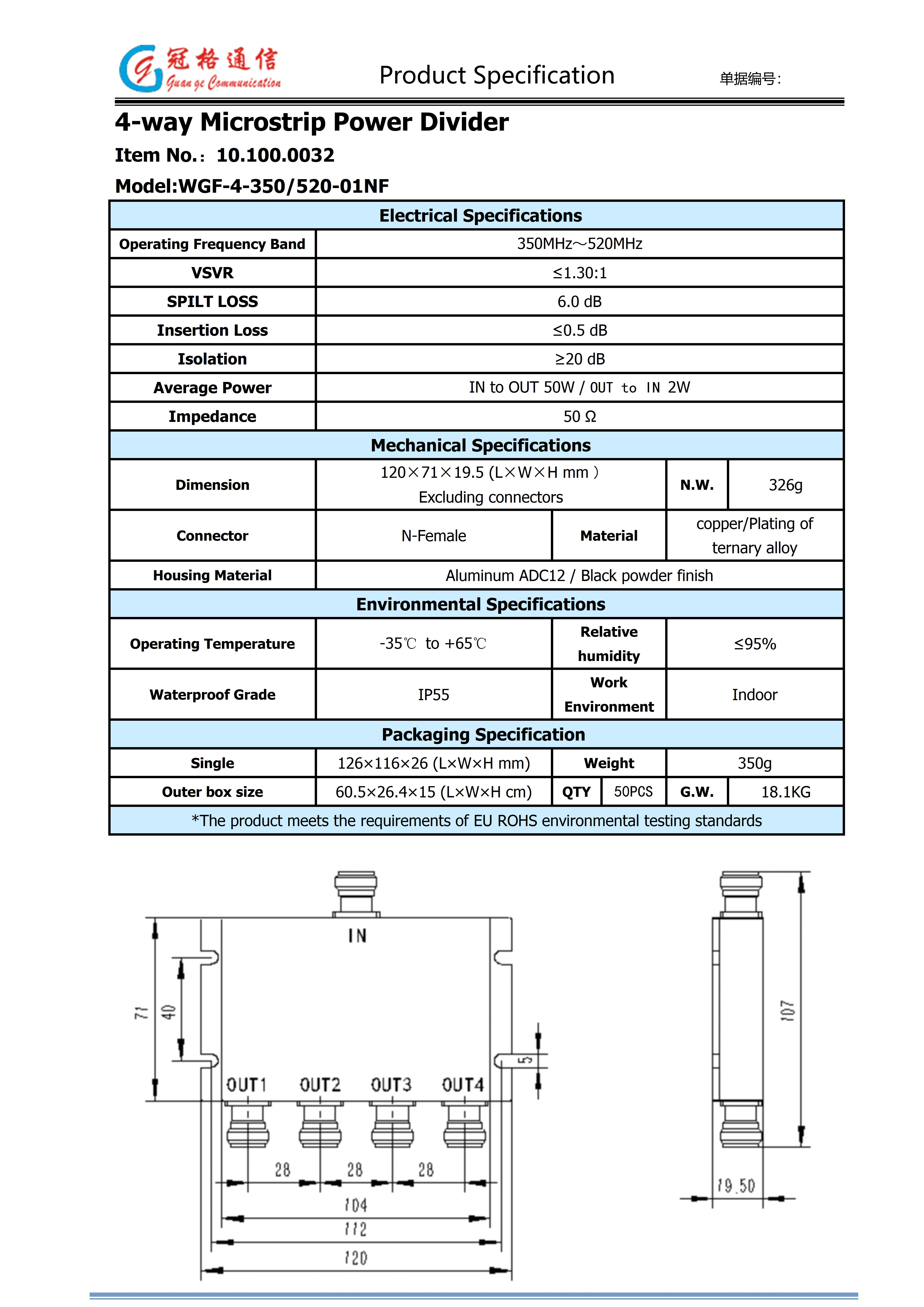

| WGF-4-350/520-01NF | 350～520MHz | 4 | ≤1.30:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | N-F |

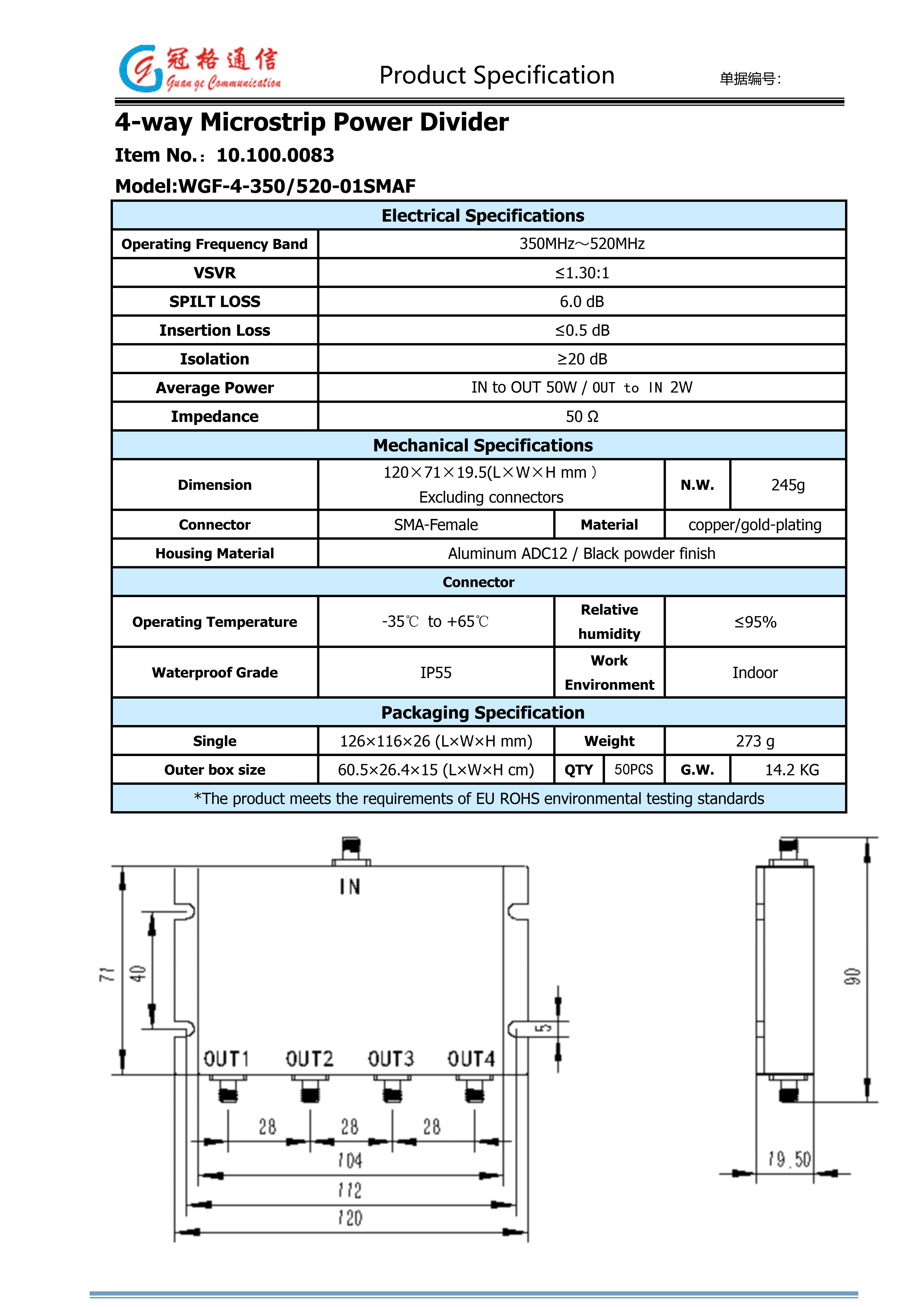

| WGF-4-350/520-01SMAF | 350～520MHz | 4 | ≤1.30:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |
| WGF-4-350/520-01TNCF | 350～520MHz | 4 | ≤1.30:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | TNC-F |

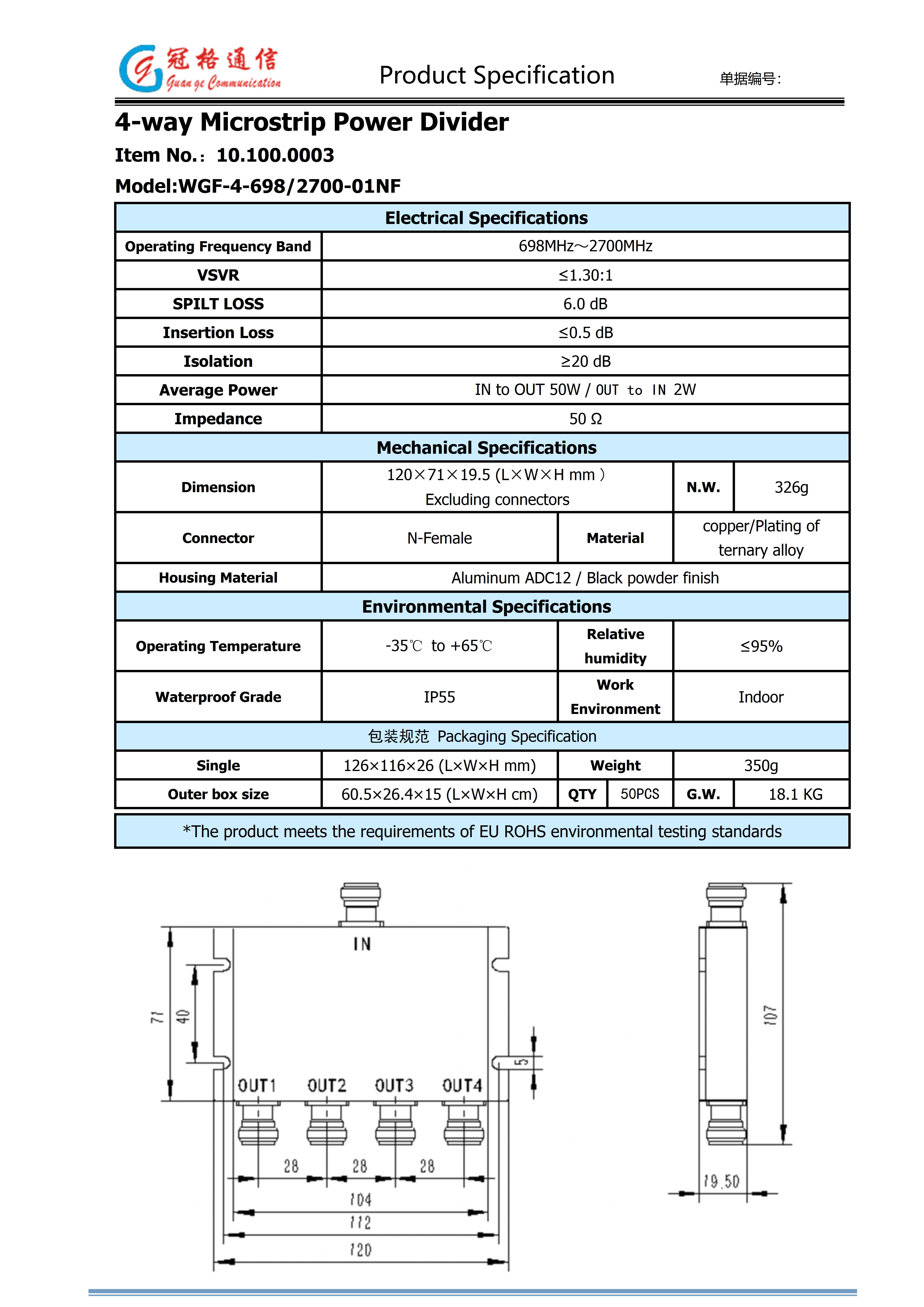

| WGF-4-698/2700-01NF | 698～2700MHz | 4 | ≤1.30:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | N-F |
| WGF-4-698/2700-01SMAF | 698～2700MHz | 4 | ≤1.30:1 | ≤0.5 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |

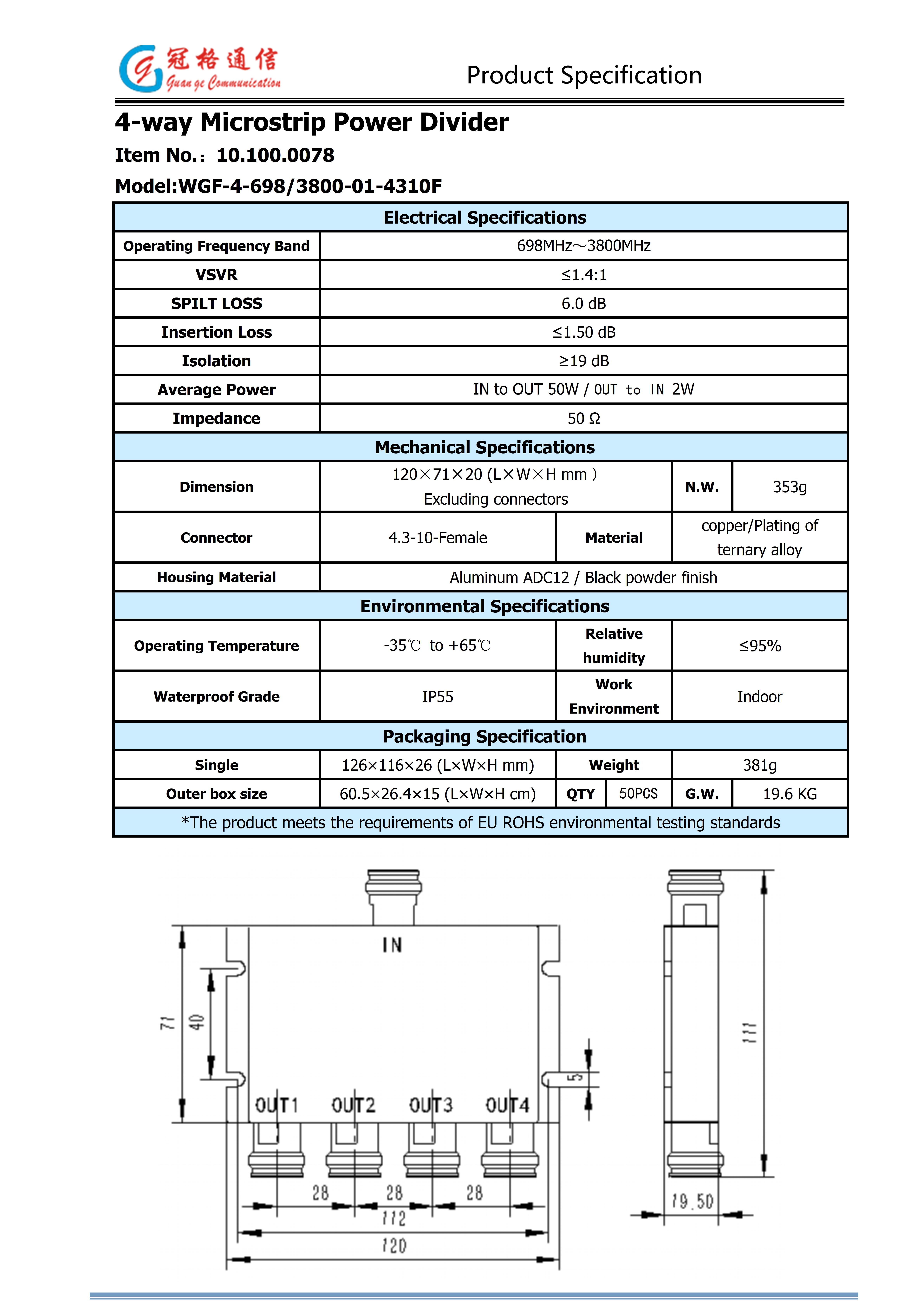

| WGF-4-698/3800-01 43-10F | 698～3800MHz | 4 | ≤1.40:1 | ≤1.50 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | 4310-F |

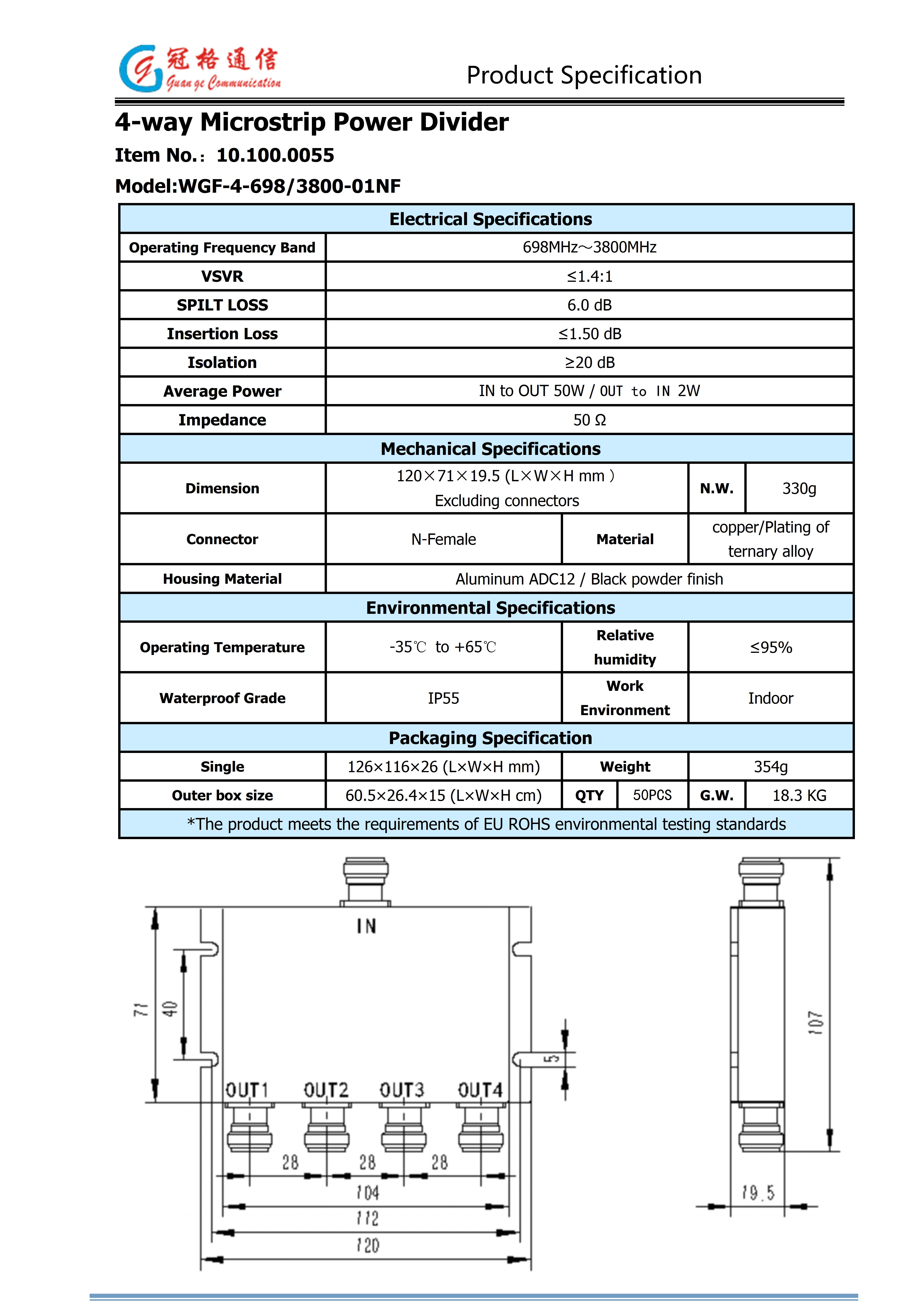

| WGF-4-698/3800-01NF | 698~3800MHz | 4 | ≤1.40:1 | ≤1.50 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | N-F |

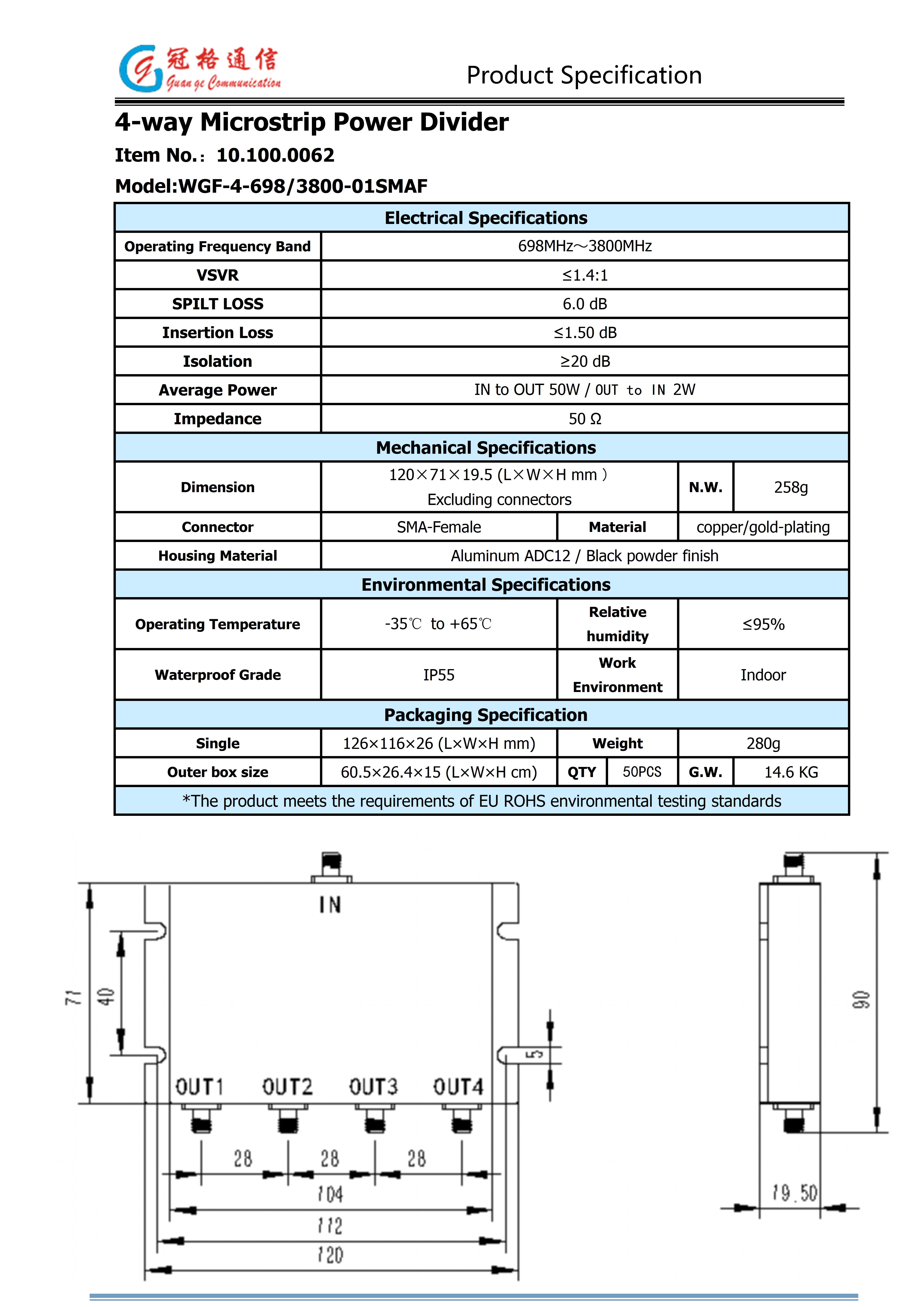

| WGF-4-698/3800-01SMAF | 698～3800MHz | 4 | ≤1.40:1 | ≤1.50 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |

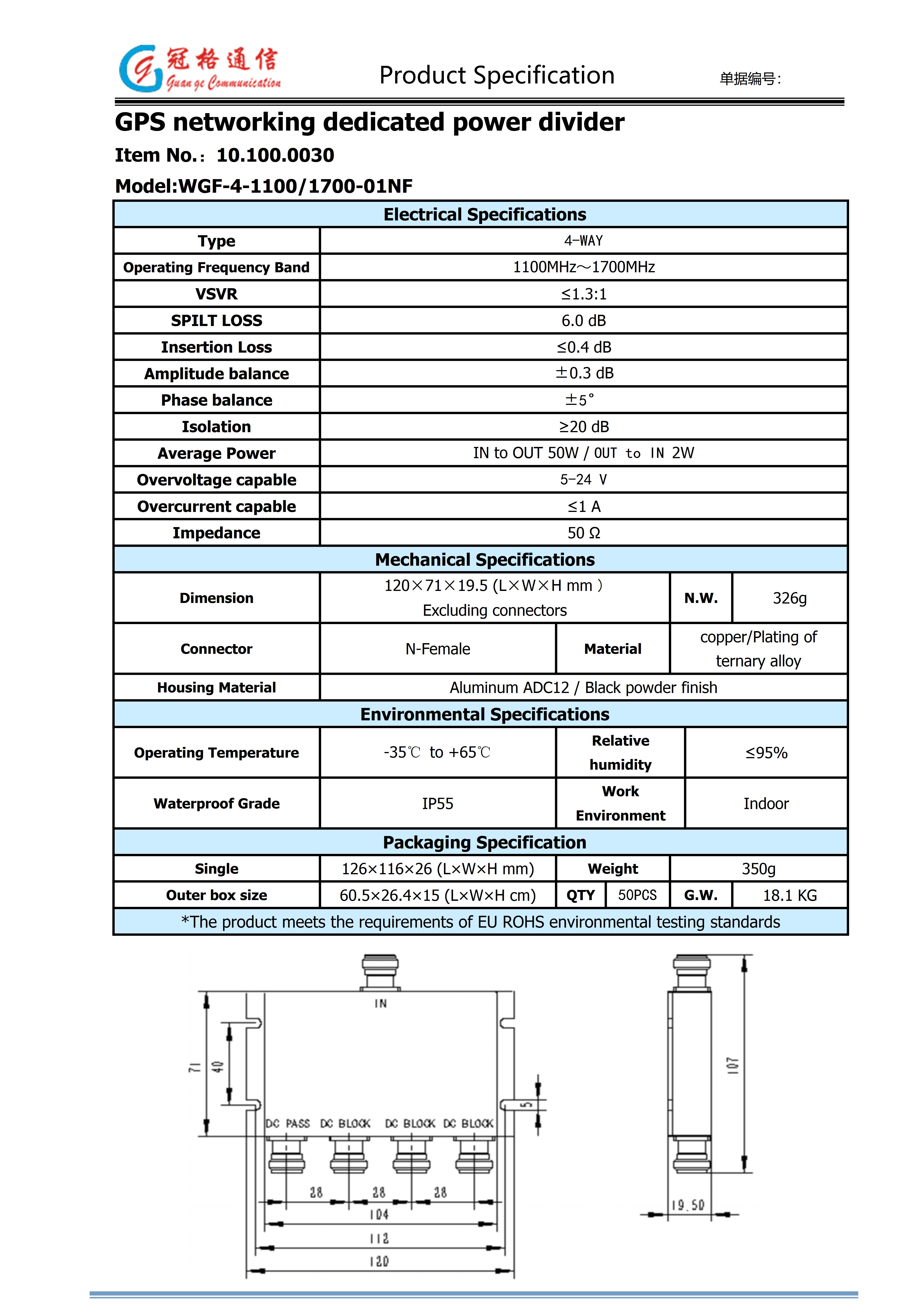

| WGF-4-1100/1700-01NF | 1100～1700MHz | 4 | ≤1.30:1 | ≤0.4 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | N-F |

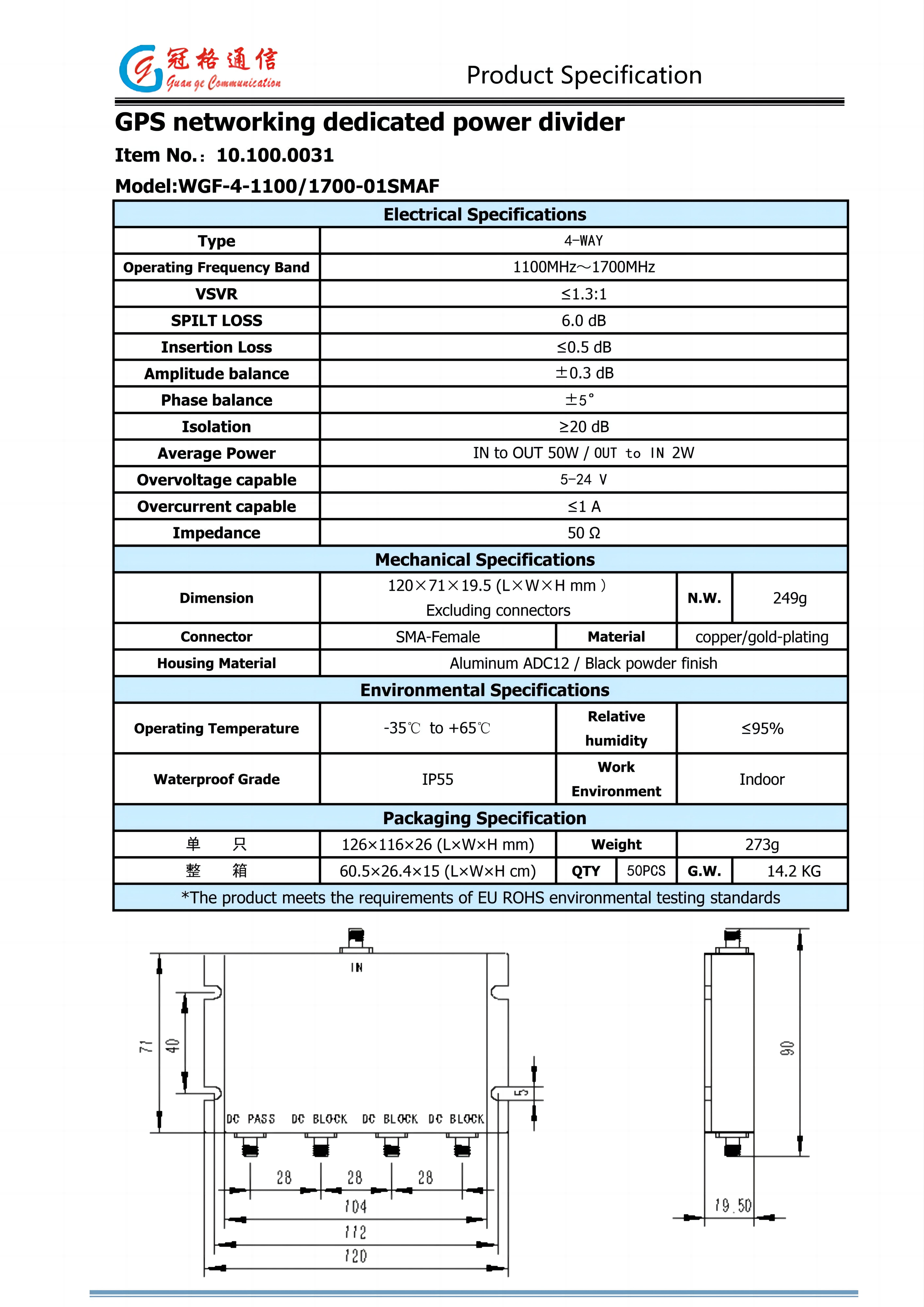

| WGF-4-1100/1700-01SMAF | 1100～1700MHz | 4 | ≤1.30:1 | ≤0.4 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |

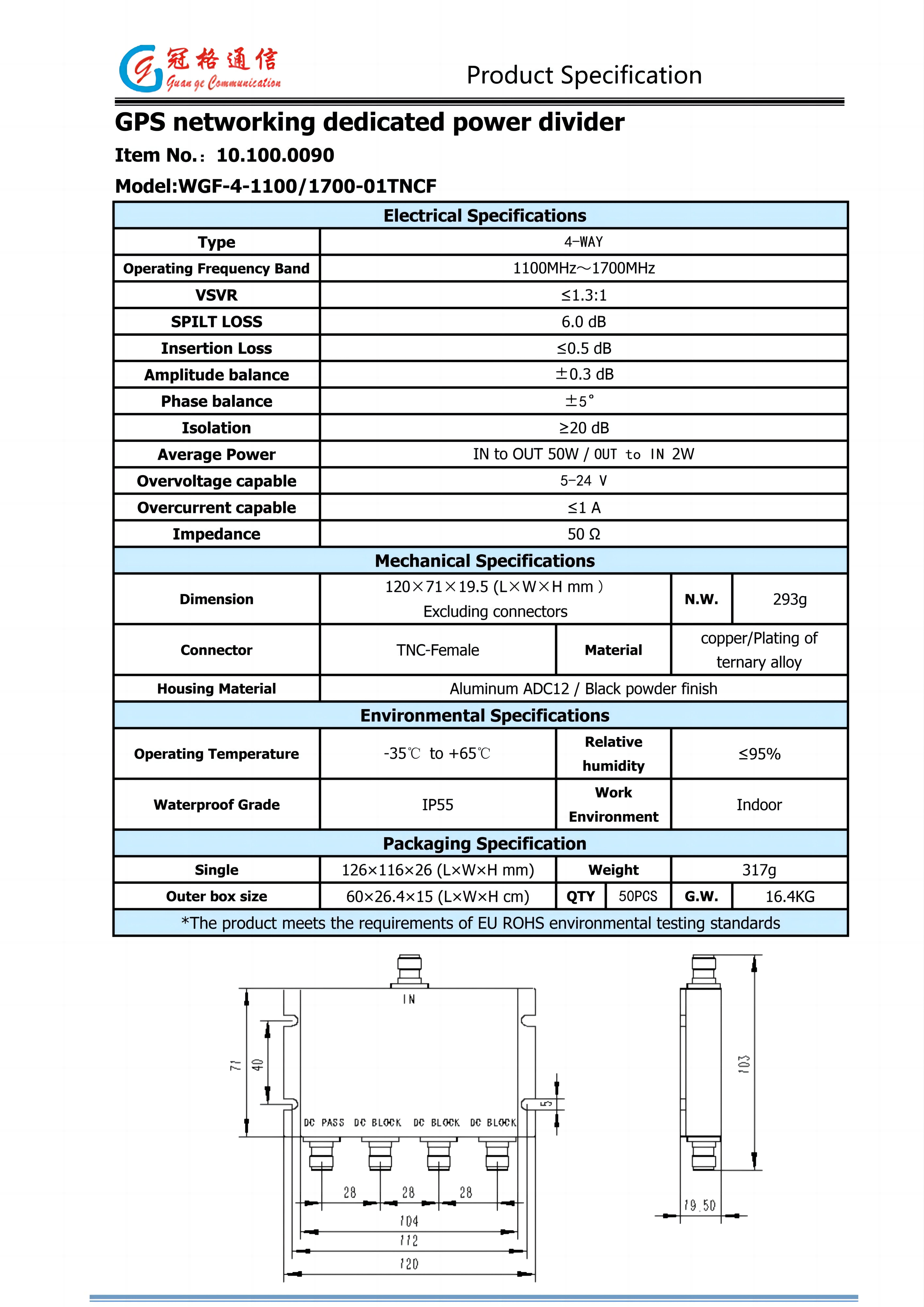

| WGF-4-1100/1700-01TNCF | 1100～1700MHz | 4 | ≤1.30:1 | ≤0.4 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | TNC-F |
| WGF-6-1100/1700-01TNCF | 1100～1700MHz | 6 | ≤1.40:1 | ≤1.2 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | TNC-F |

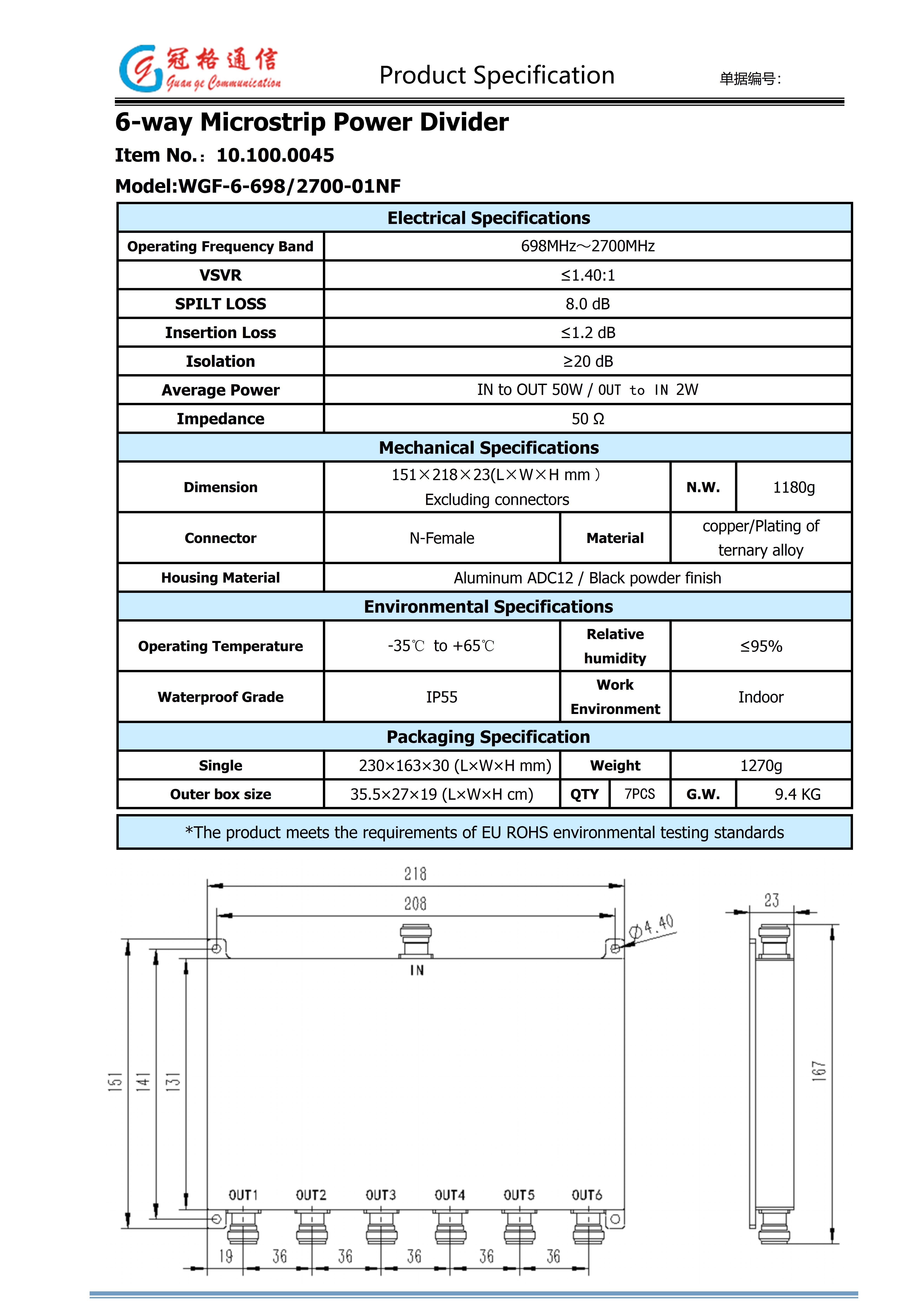

| WGF-6-698/2700-01NF | 698～2700MHz | 6 | ≤1.30:1 | ≤1.2 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | N-F |

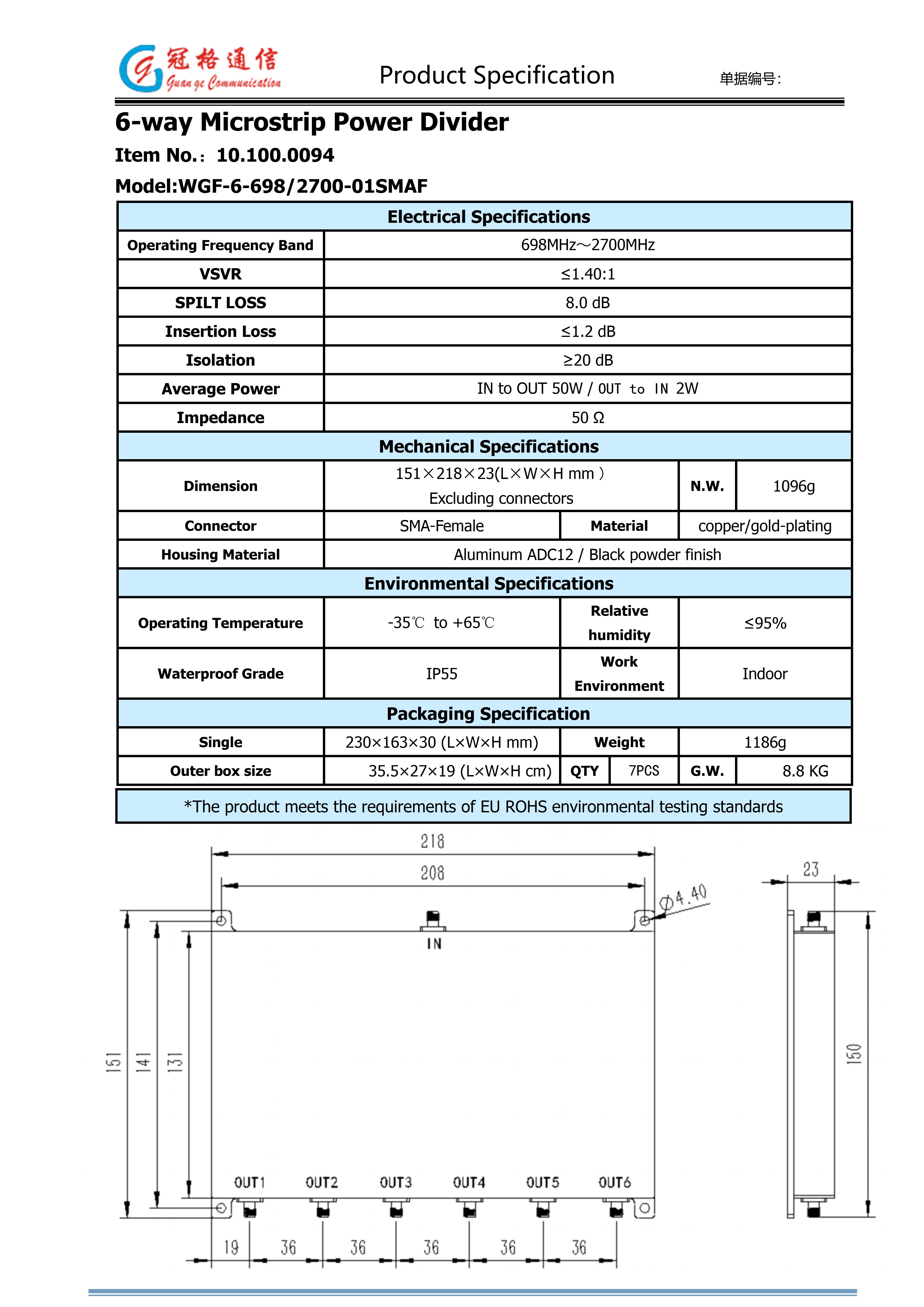

| WGF-6-698/2700-01SMAF | 698～2700MHz | 6 | ≤1.40:1 | ≤1.2 dB | ≥20 dB | Splitting 50W / combining 2W | 50 Ω | SMA-F |
