RF Directional Coupler
Short Description:
A passive device that divides one input signal power into two outputs in a certain proportion and has different power ratios, also known as a power divider.A coupler is a component that couples the energy of an input signal through an electric or magnetic field to distribute a portion as the output of the coupling end, and the remaining portion as the output end, in order to complete power distribution.
Product Detail
Product Tags
A directional coupler is a measurement device that is inserted into the transmission line between an RF source—such as a signal generator, vector network analyzer, or transmitter—and a load. It measures both the RF power from the source to the load—the forward component—as well as the reflected component, power reflected back from the load to the source. Knowing the forward and reflected components permits the computation of total power, return loss, and standing wave ratio of the load.
| Product Type | Operating Frequency
Band |
VSVR | Coupling accuracy | Average
Power |
Impedance | Connector |

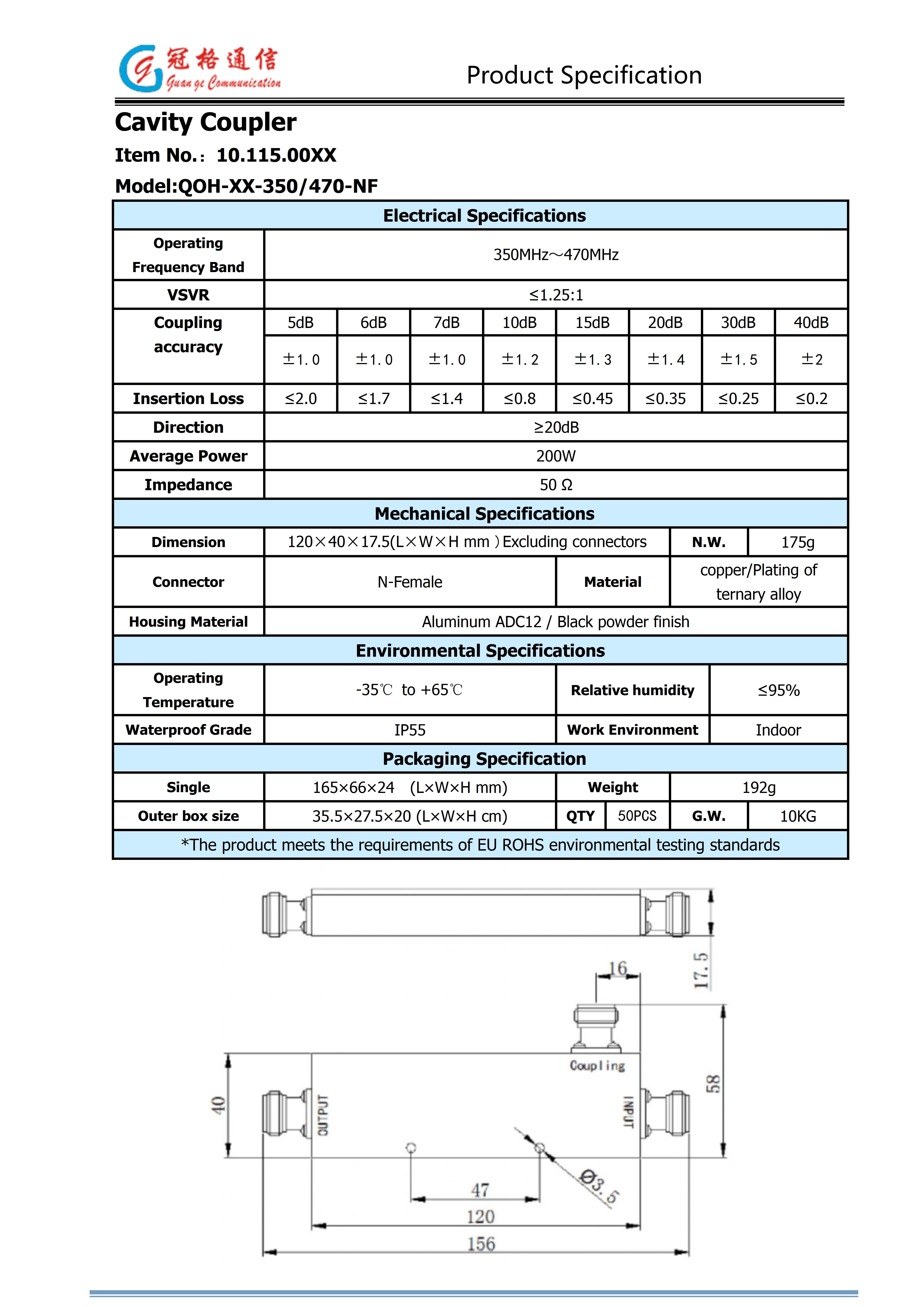

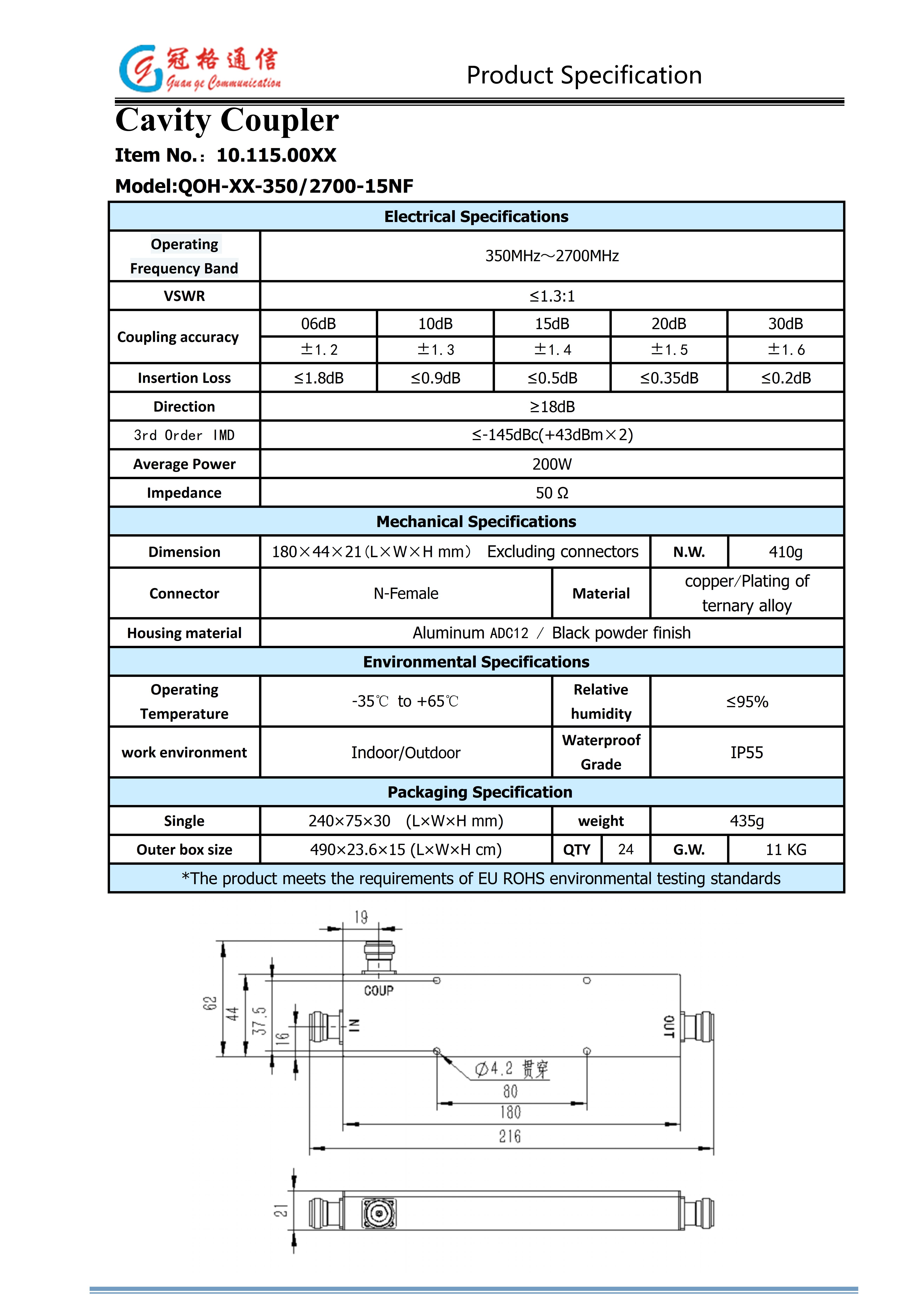

| QOH-XX-350/470-NF | 350-470MHz | ≤1.25:1 | 5/6/7/10/15/20/30/40 | 200W | 50Ω | N-Female |

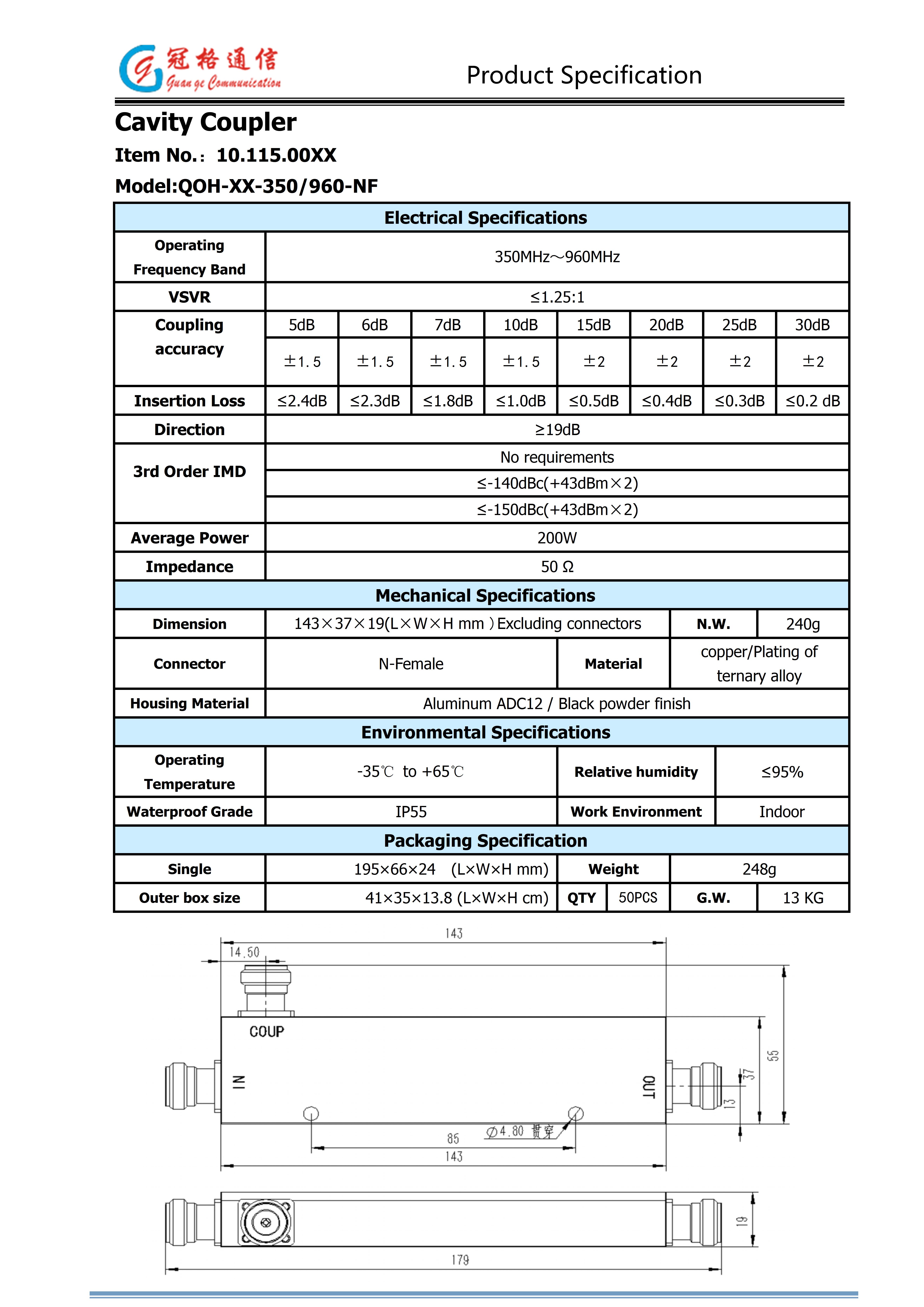

| QOH-XX-350/960-NF | 350-960MHz | ≤1.25:1 | 5/6/7/10/15/20/25/30 | 200W | 50Ω | N-Female |

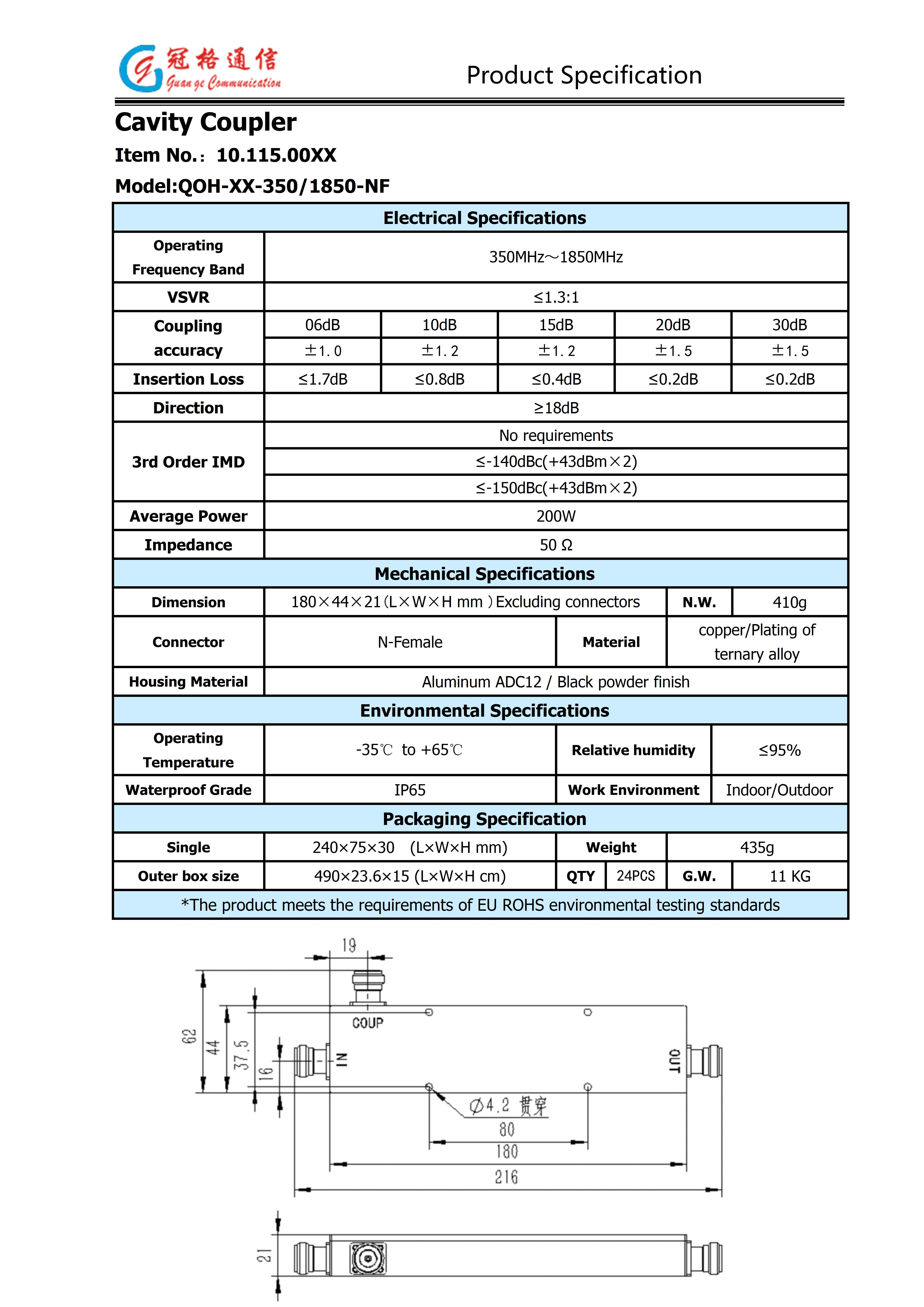

| QOH-XX-350/1850-NF | 350-1850MHz | ≤1.30:1 | 6/10/15/20/30 | 200W | 50Ω | N-Female |
| QOH-XX-350/2700-NF | 350-2700MHz | ≤1.30:1 | 6/10/15/20/30 | 200W | 50Ω | N-Female |

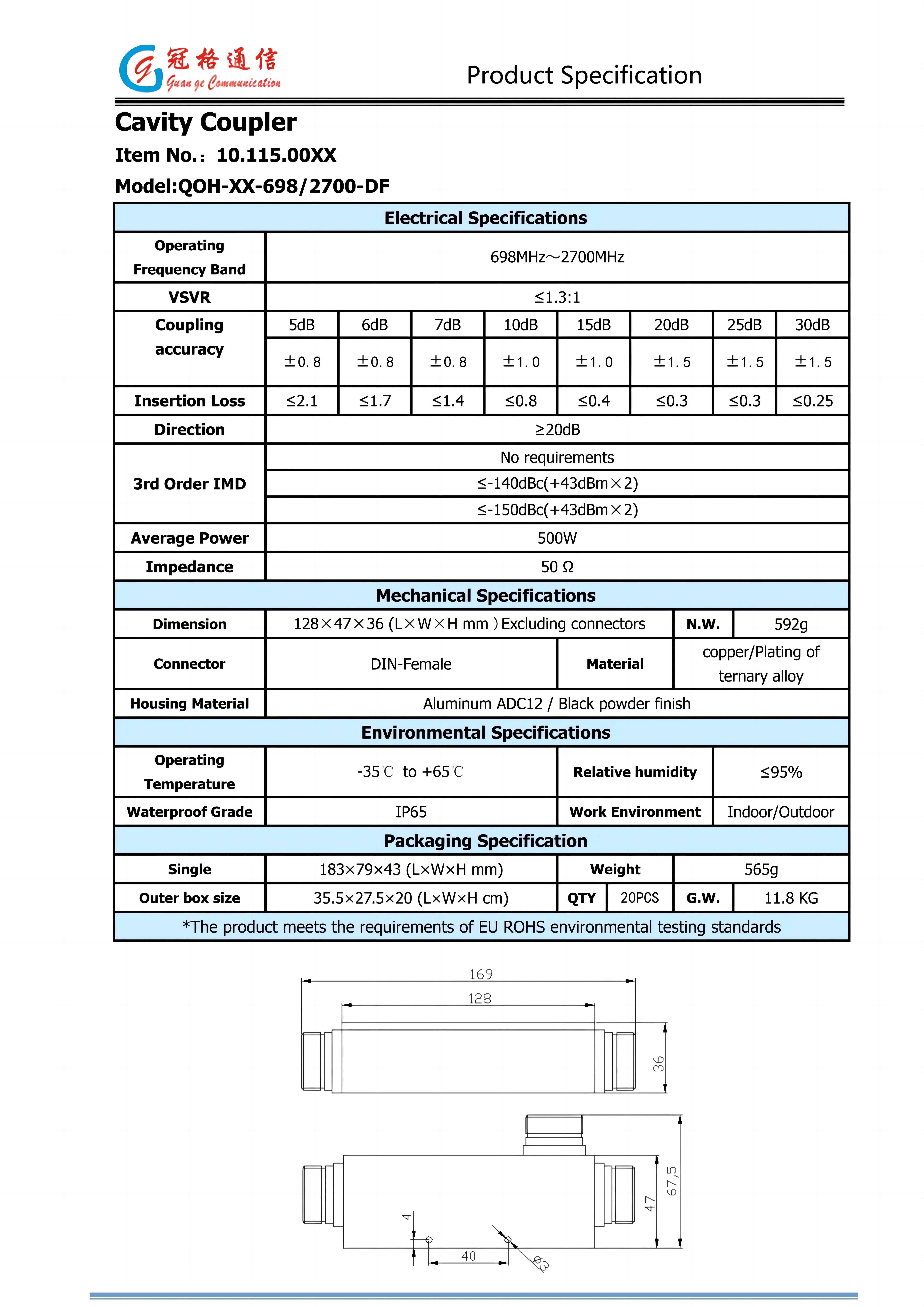

| QOH-XX-698/2700-DF | 698-2700MHz | ≤1.30:1 | 5/6/7/10/15/20/25/30 | 500W | 50Ω | DIN-Female |

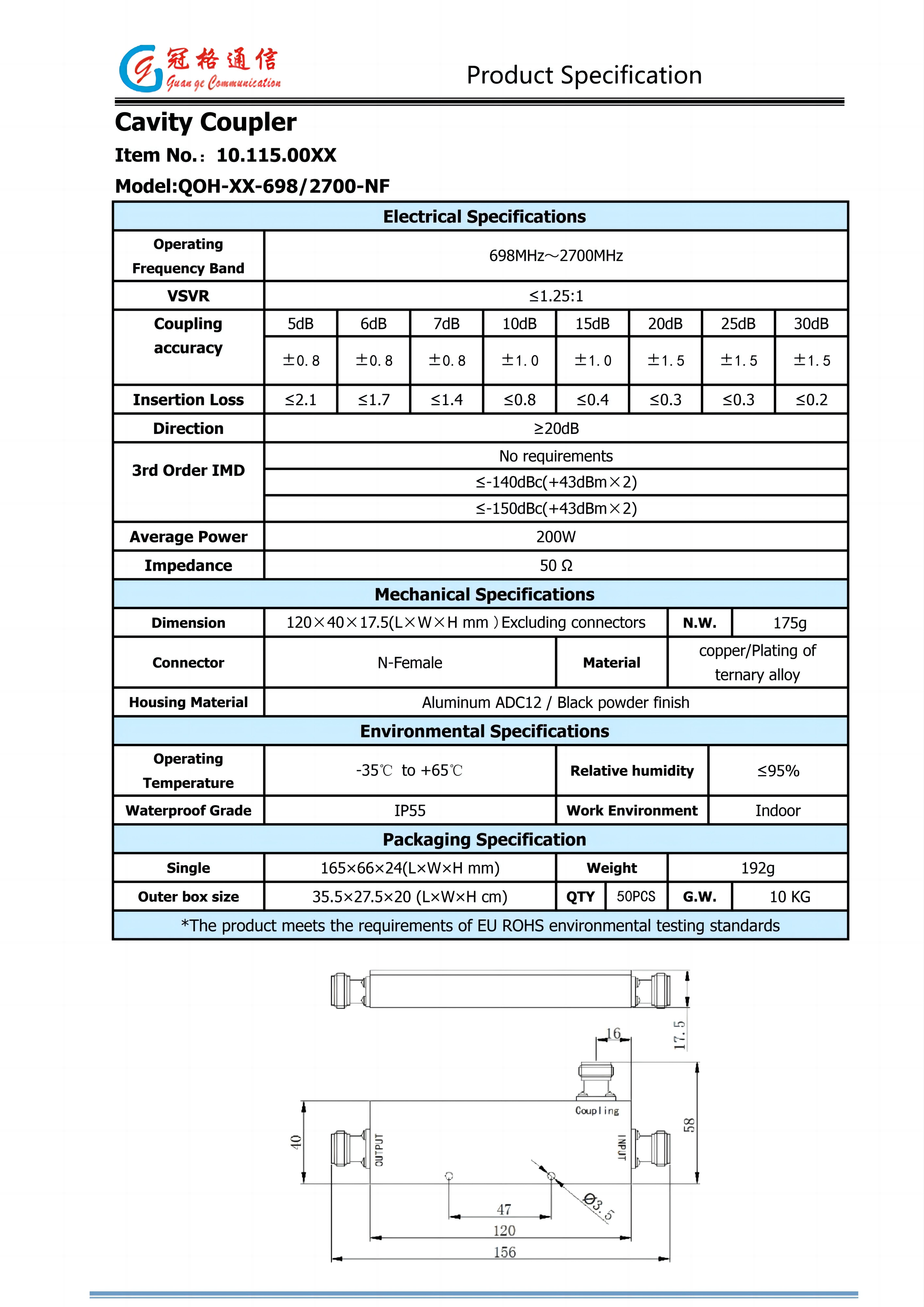

| QOH-XX-698/2700-NF | 698-2700MHz | ≤1.25:1 | 5/6/7/10/15/20/25/30 | 200W | 50Ω | N-Female |

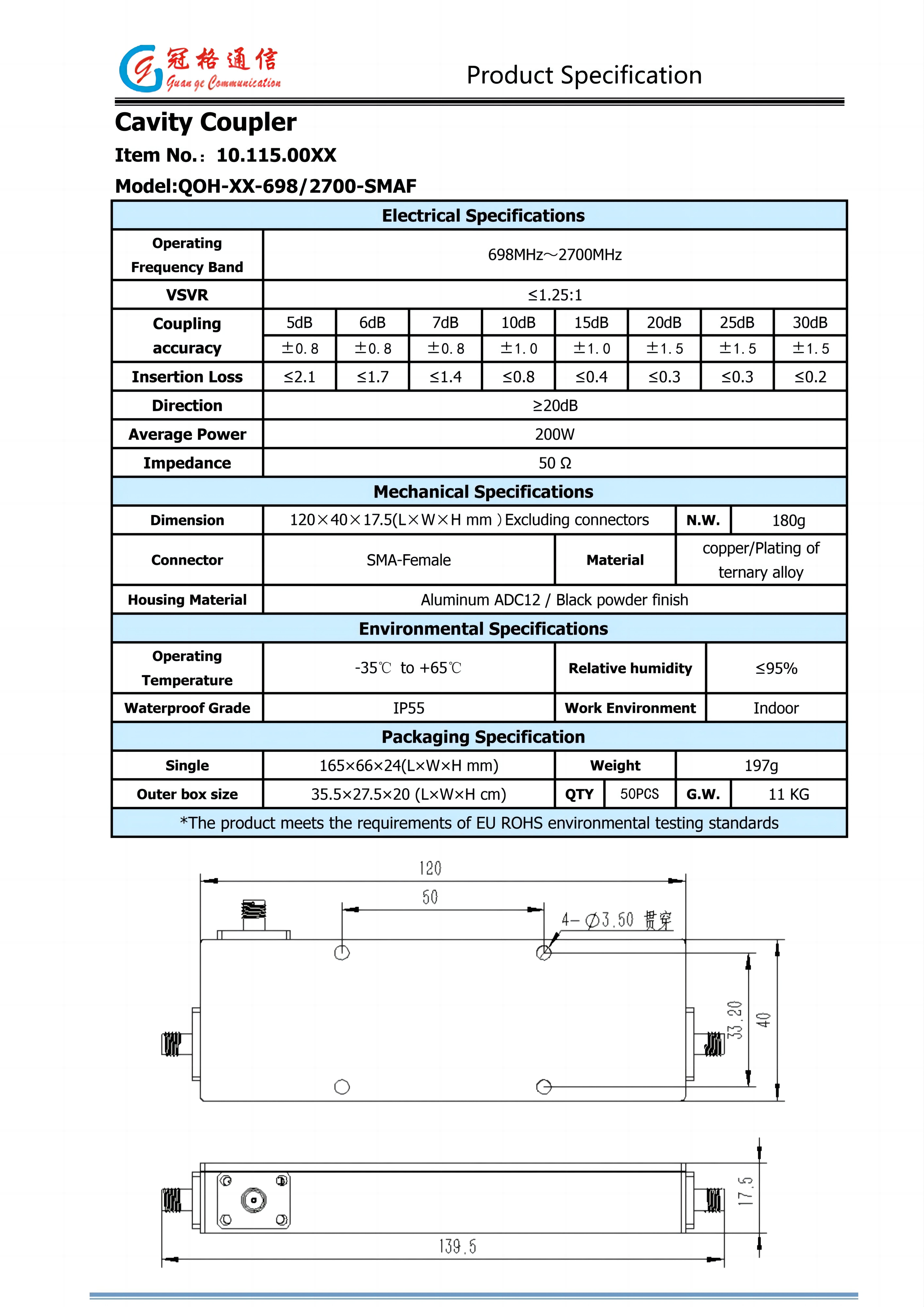

| QOH-XX-698/2700-SMAF | 698-2700MHz | ≤1.25:1 | 5/6/7/10/15/20/25/30 | 200W | 50Ω | SMA-Female |

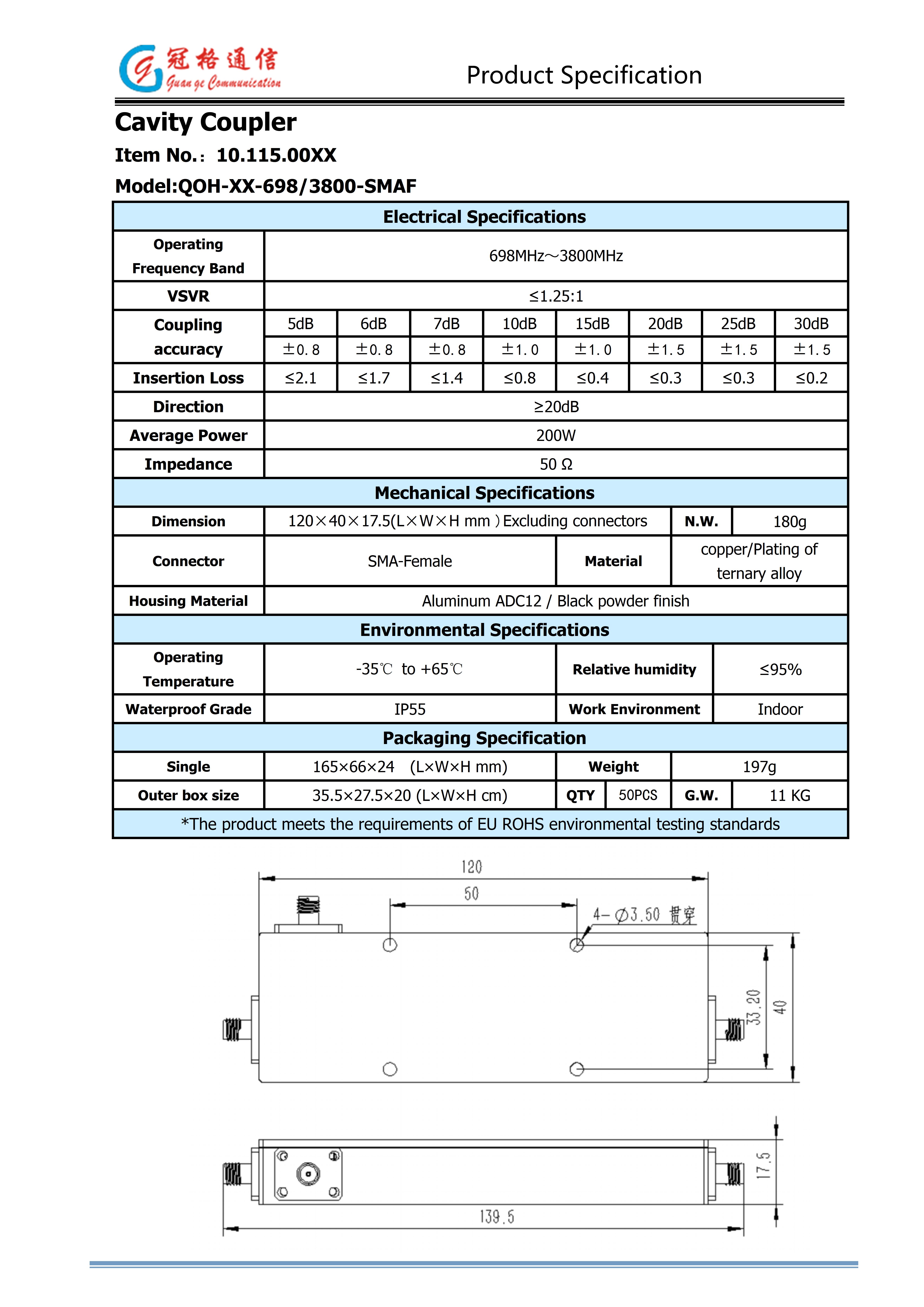

| QOH-XX-698/3800-SMAF | 698-3800MHz | ≤1.25:1 | 5/6/7/10/15/20/25/30 | 200W | 50Ω | SMA-Female |
| QOH-XX-700/2700-NF | 700-2700MHz | ≤1.20:1 | 50/60/70/80 | 200W | 50Ω | N-Female |

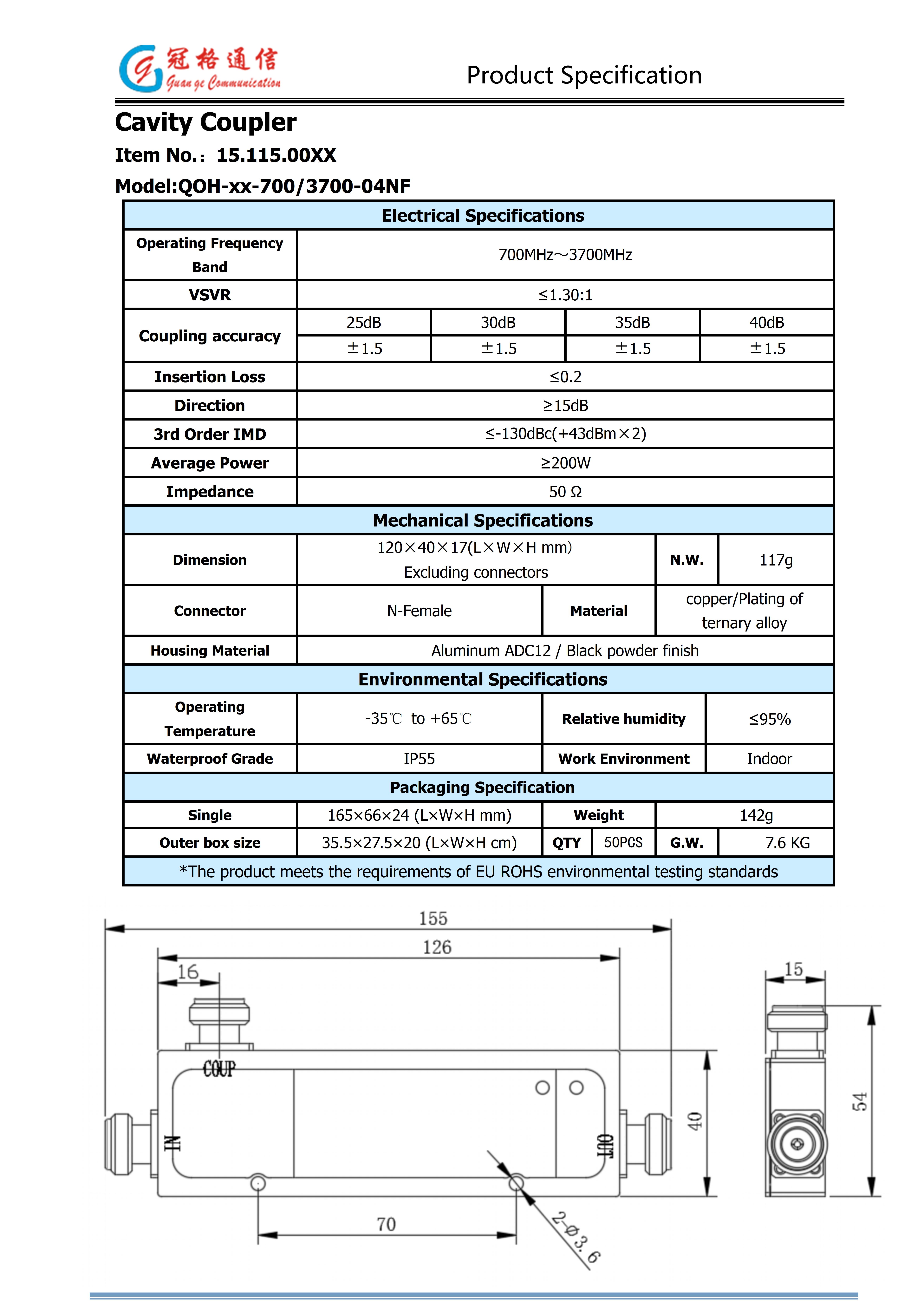

| QOH-XX-700/3700-04NF | 700-3700MHz | ≤1.30:1 | 5/6/7/8/10/12/13/15/20 | 200W | 50Ω | N-Female |
| QOH-XX-700/3700-04NF | 700-3700MHz | ≤1.30:1 | 25/30/35/40 | 200W | 50Ω | N-Female |
| QOH-XX-2400/5850-01NF | 2400-5850MHz | ≤1.30:1 | 6/10/15/20 | 100W | 50Ω | N-Female |
