Power Splitter
Short Description:
A passive device that divides the energy of one input signal into two or more equal output channels. It is defined as two power division, three power division, four power division, etc. based on the number of allocated channels
Product Detail
Product Tags
A cavity power divider, also known as a power divider, is a passive device widely used in the microwave field. It mainly consists of a set of short-circuit loads and couplers distributed within a closed cavity. This structure can reflect and couple the energy inside the cavity, thereby achieving the distribution and measurement of signal power. The cavity power divider, as a passive device, can achieve power distribution and measurement of signals. It is widely used in microwave communication systems, especially antenna arrays. By using the cavity power divider reasonably, the power balance of the system can be ensured, and the communication quality and reliability can be improved.

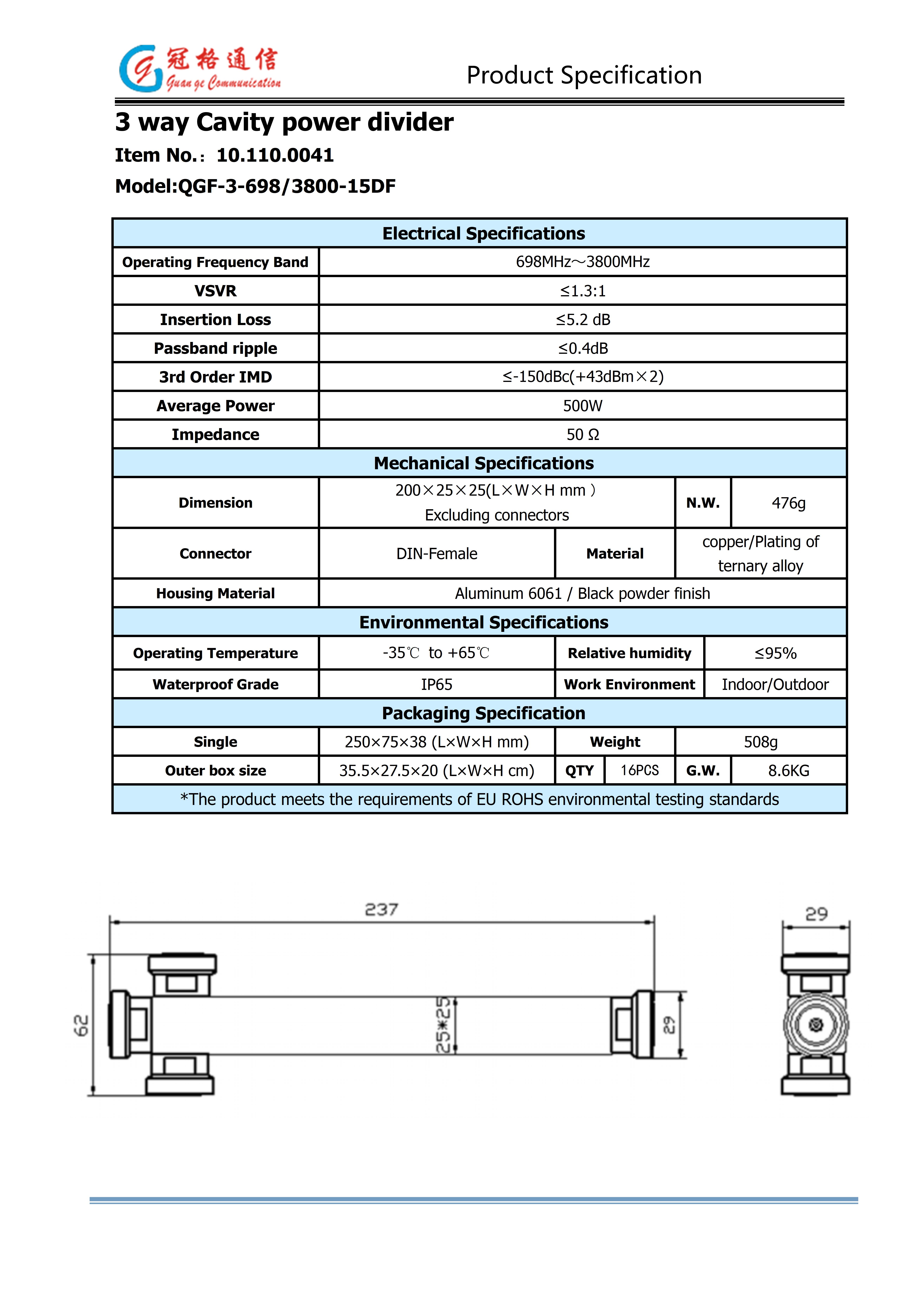

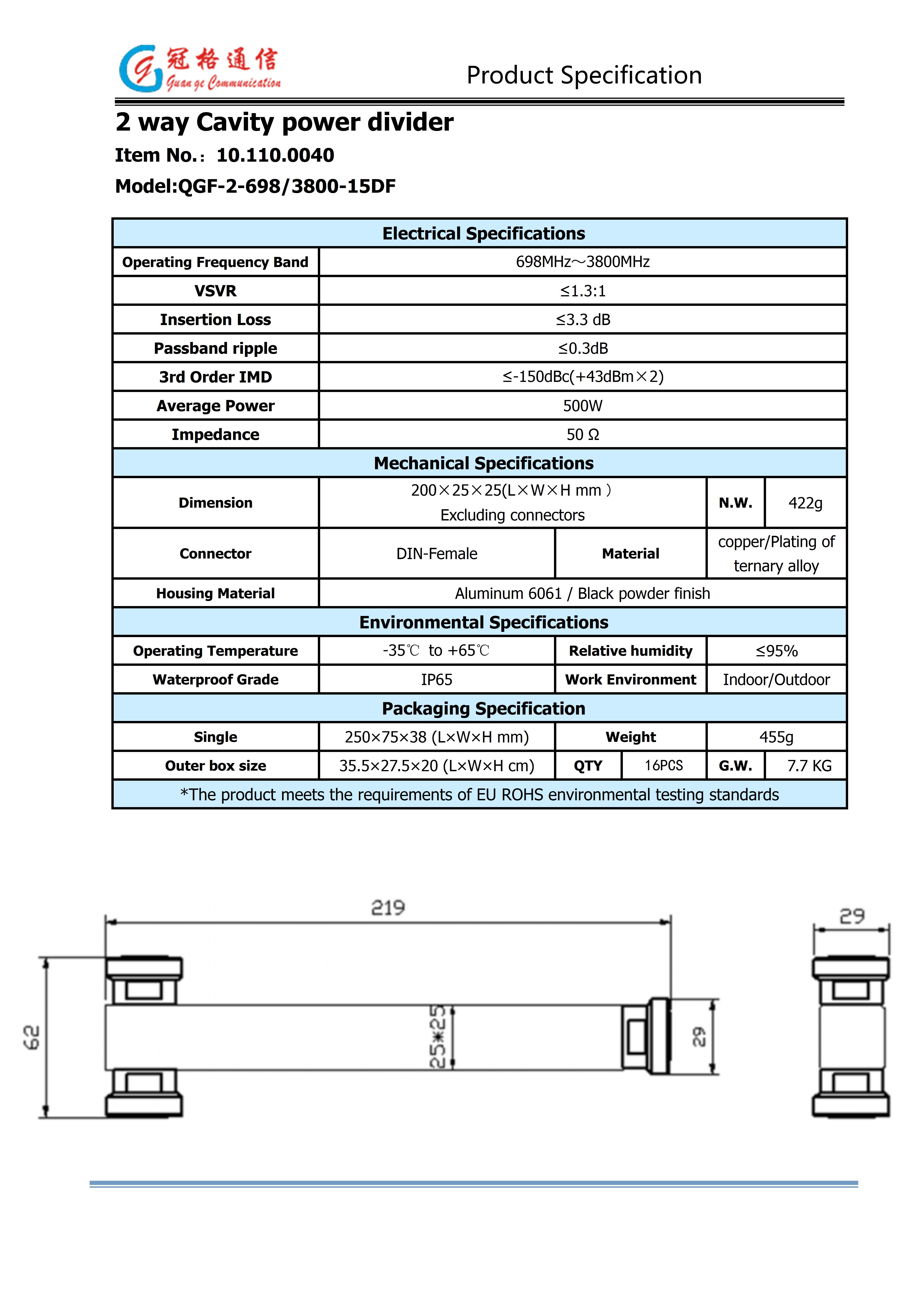

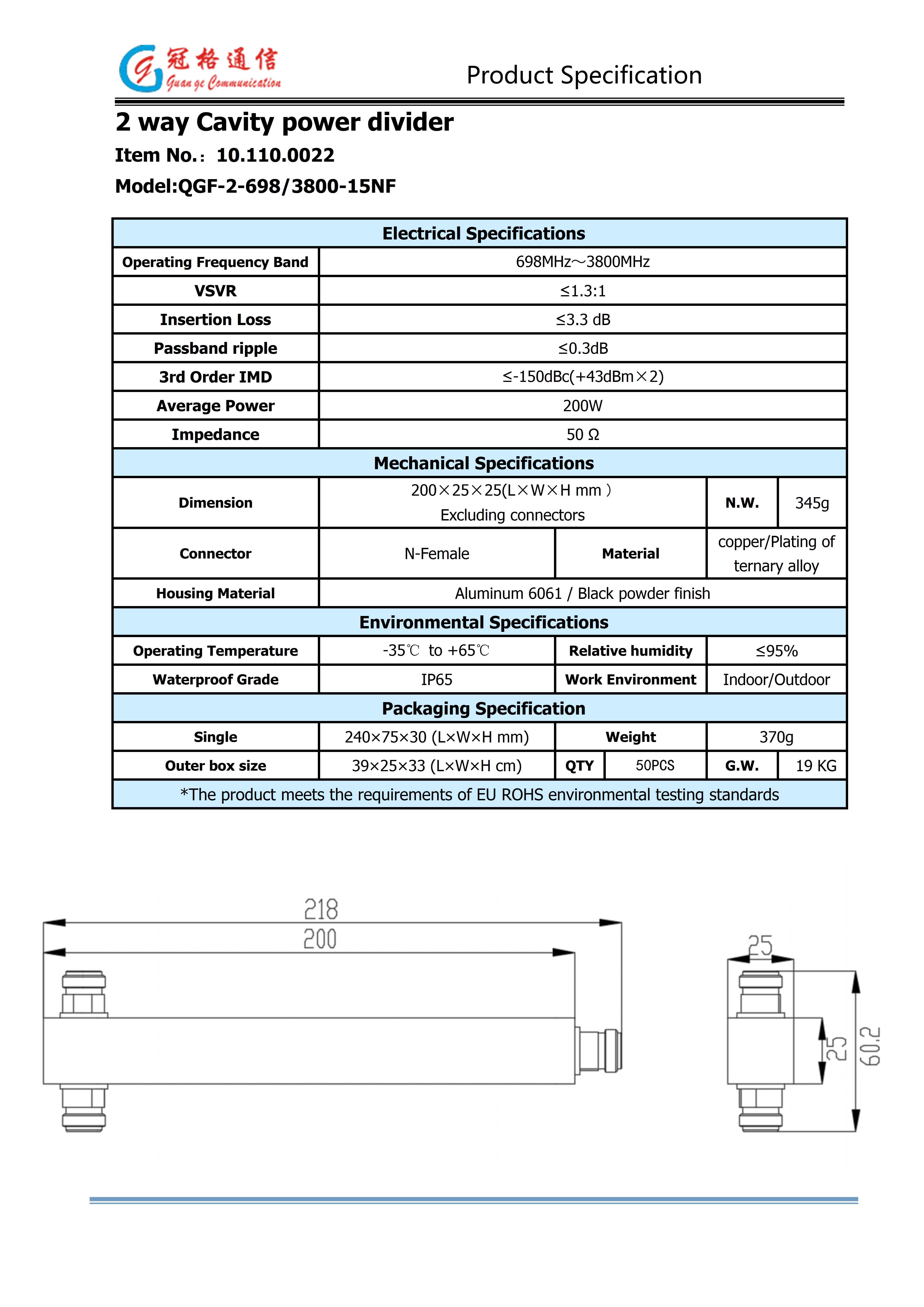

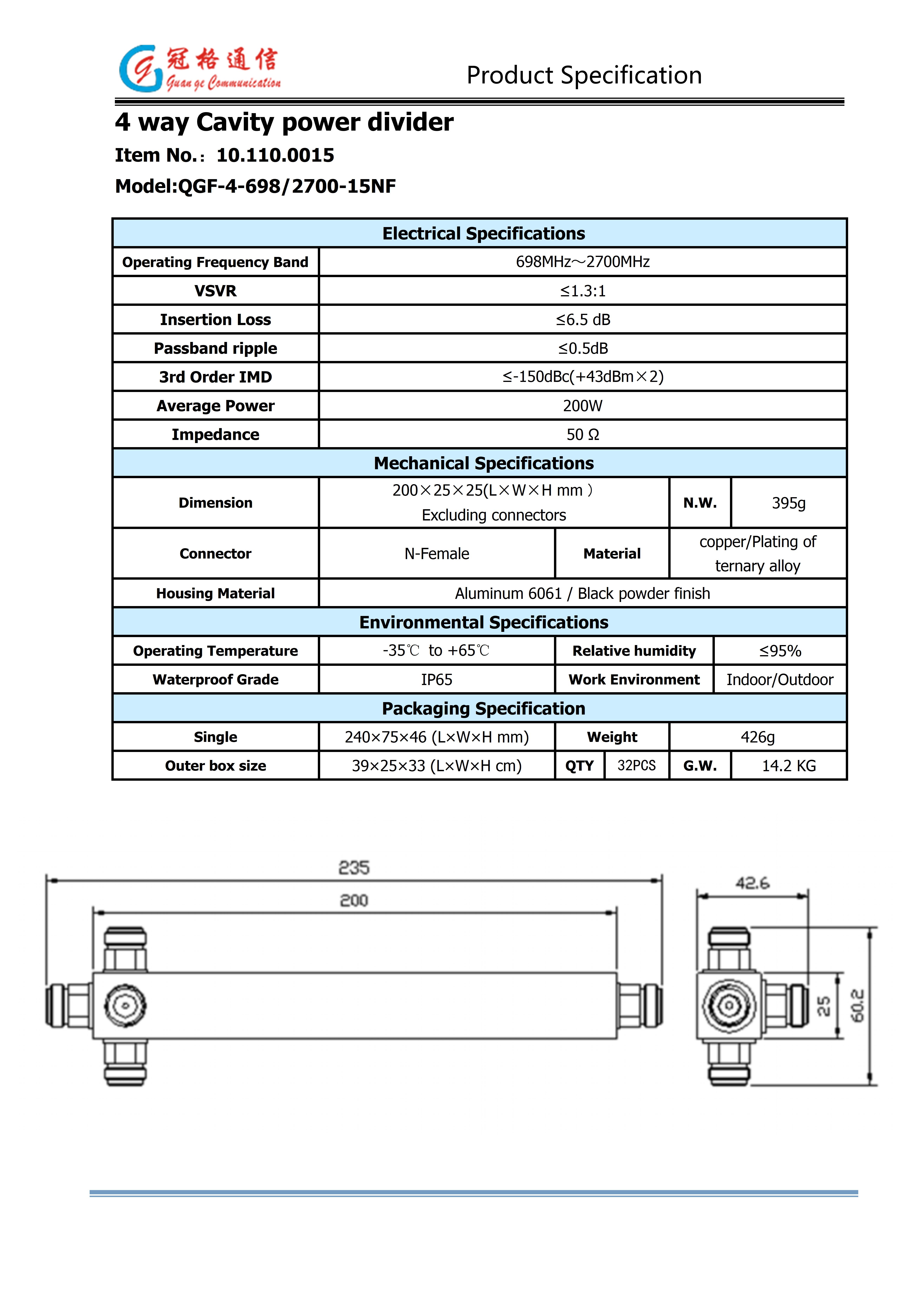

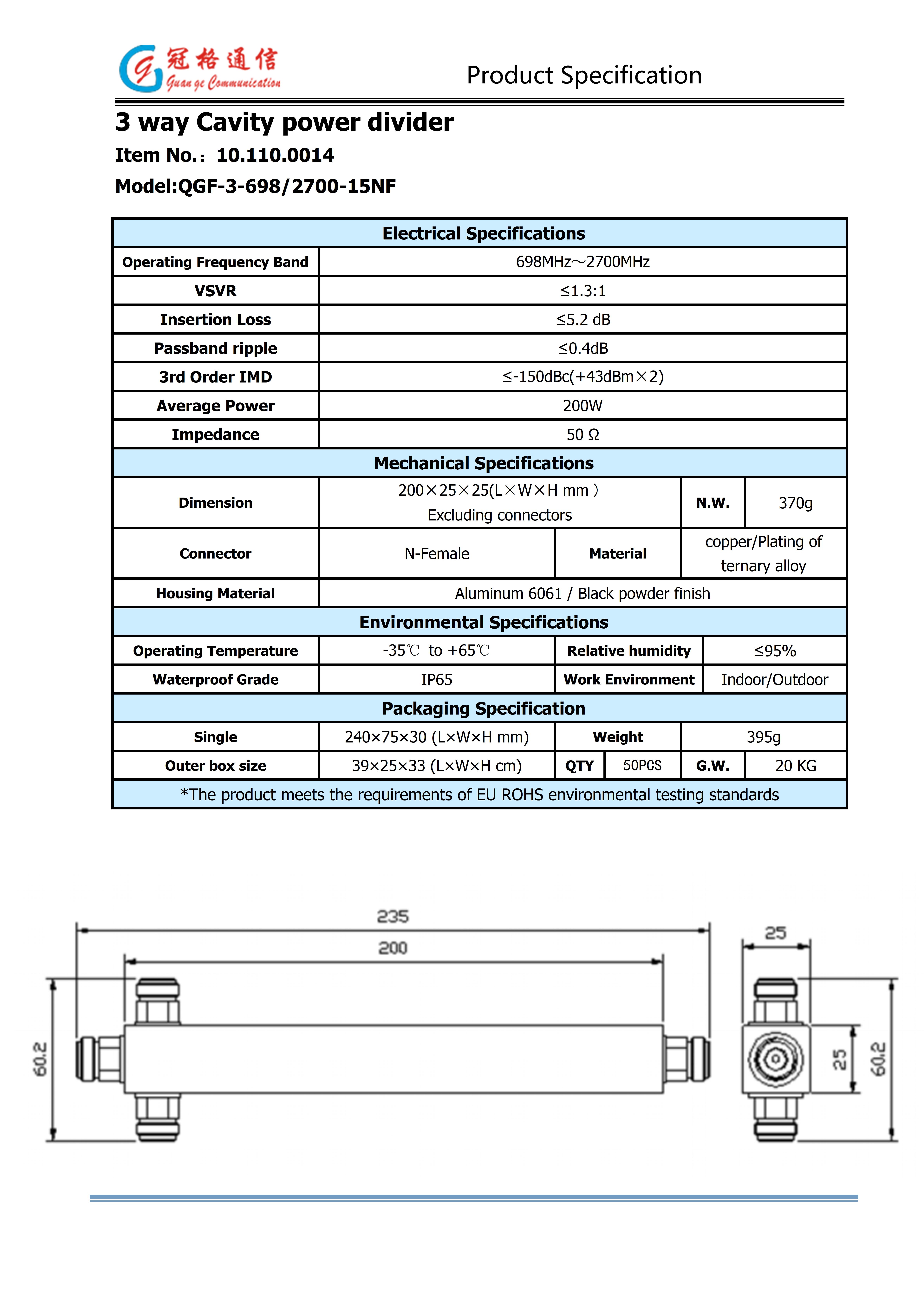

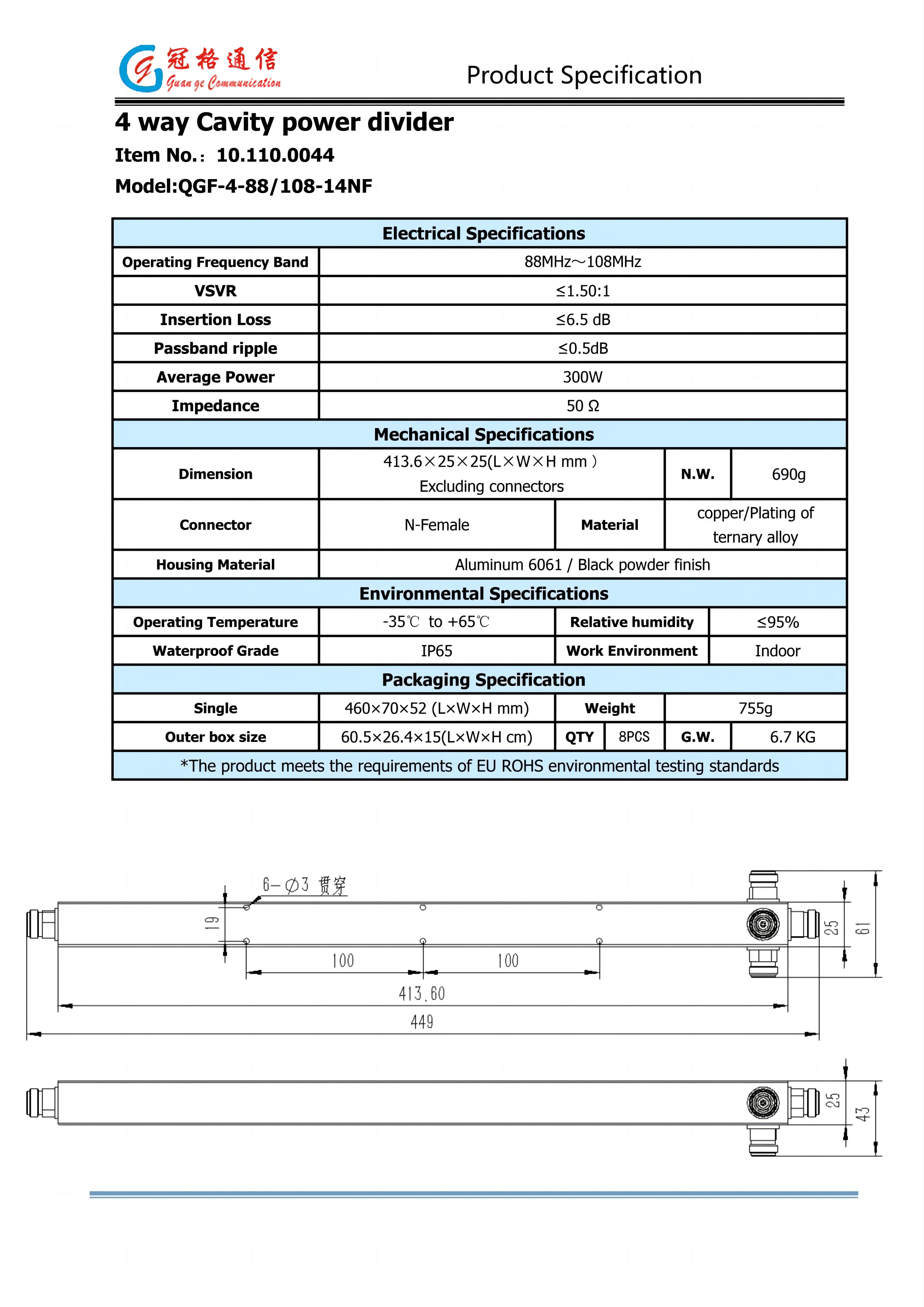

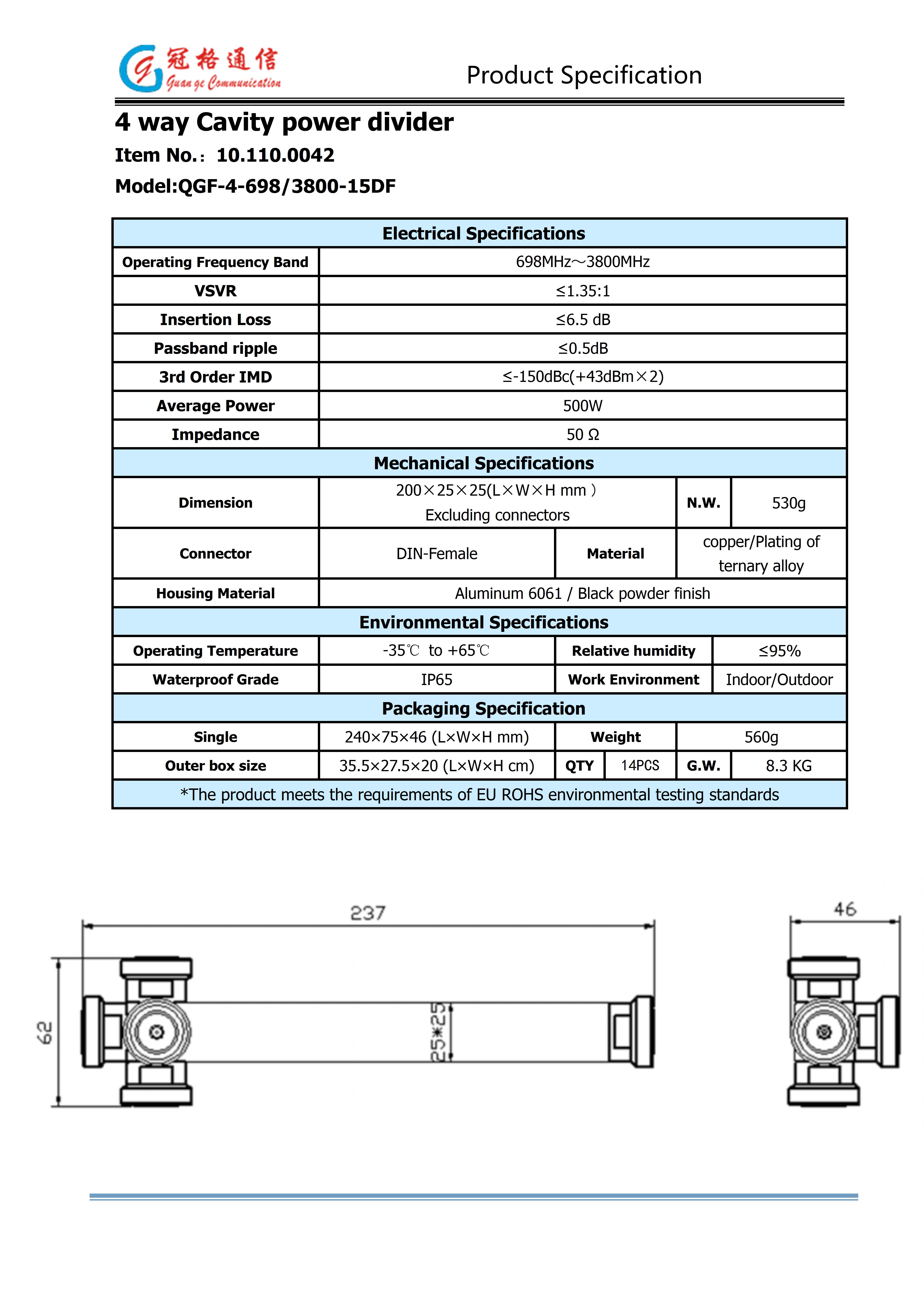

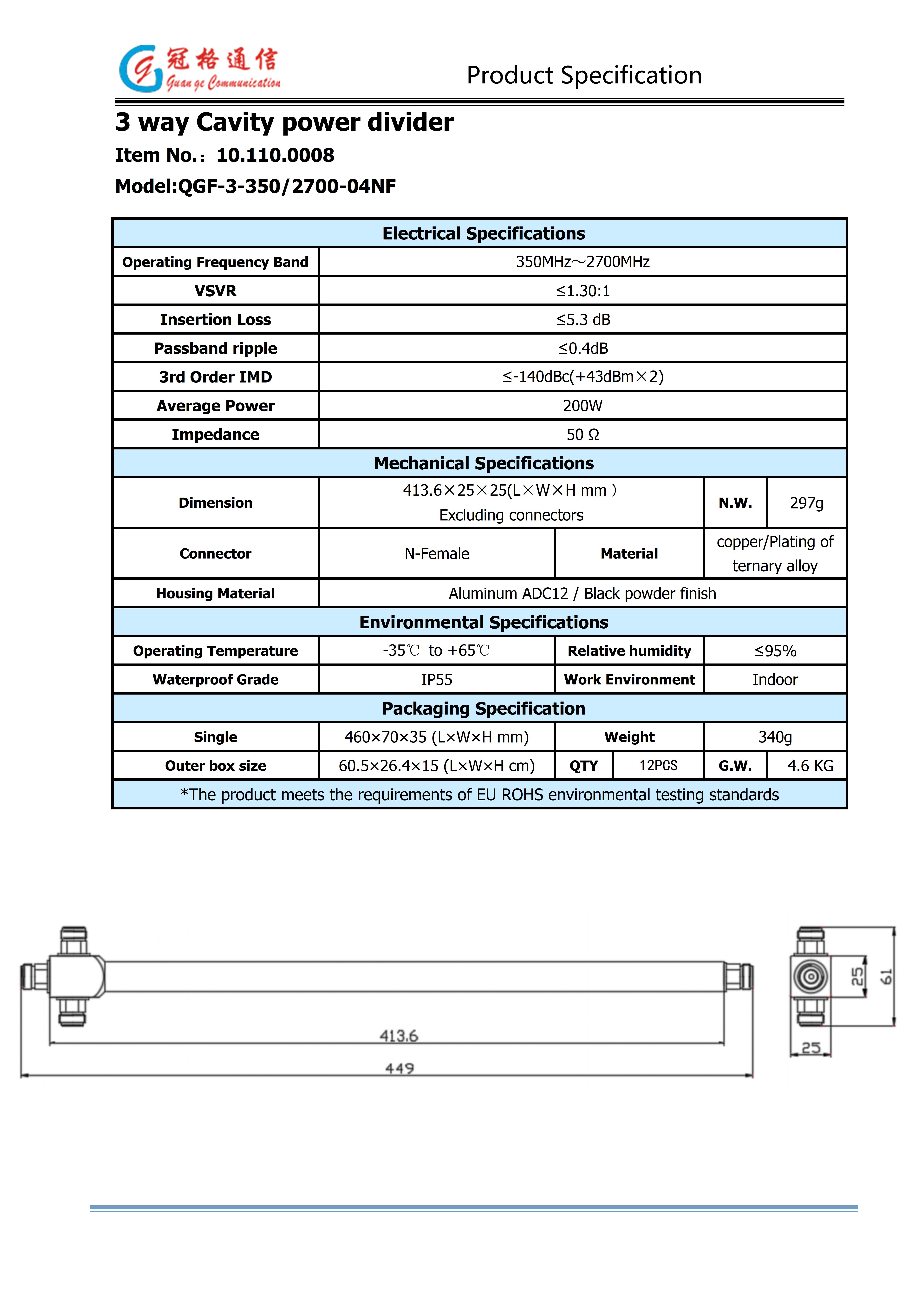

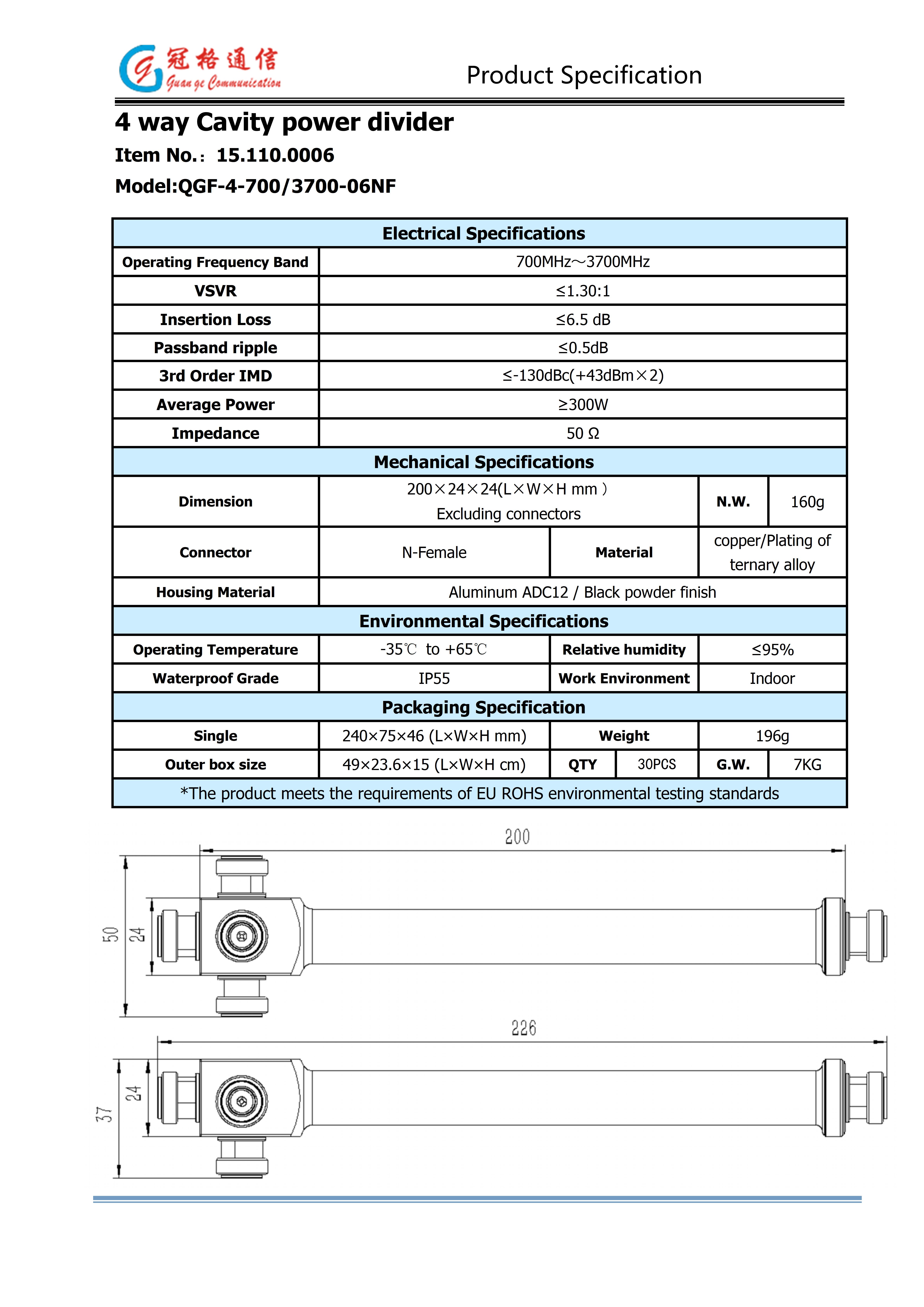

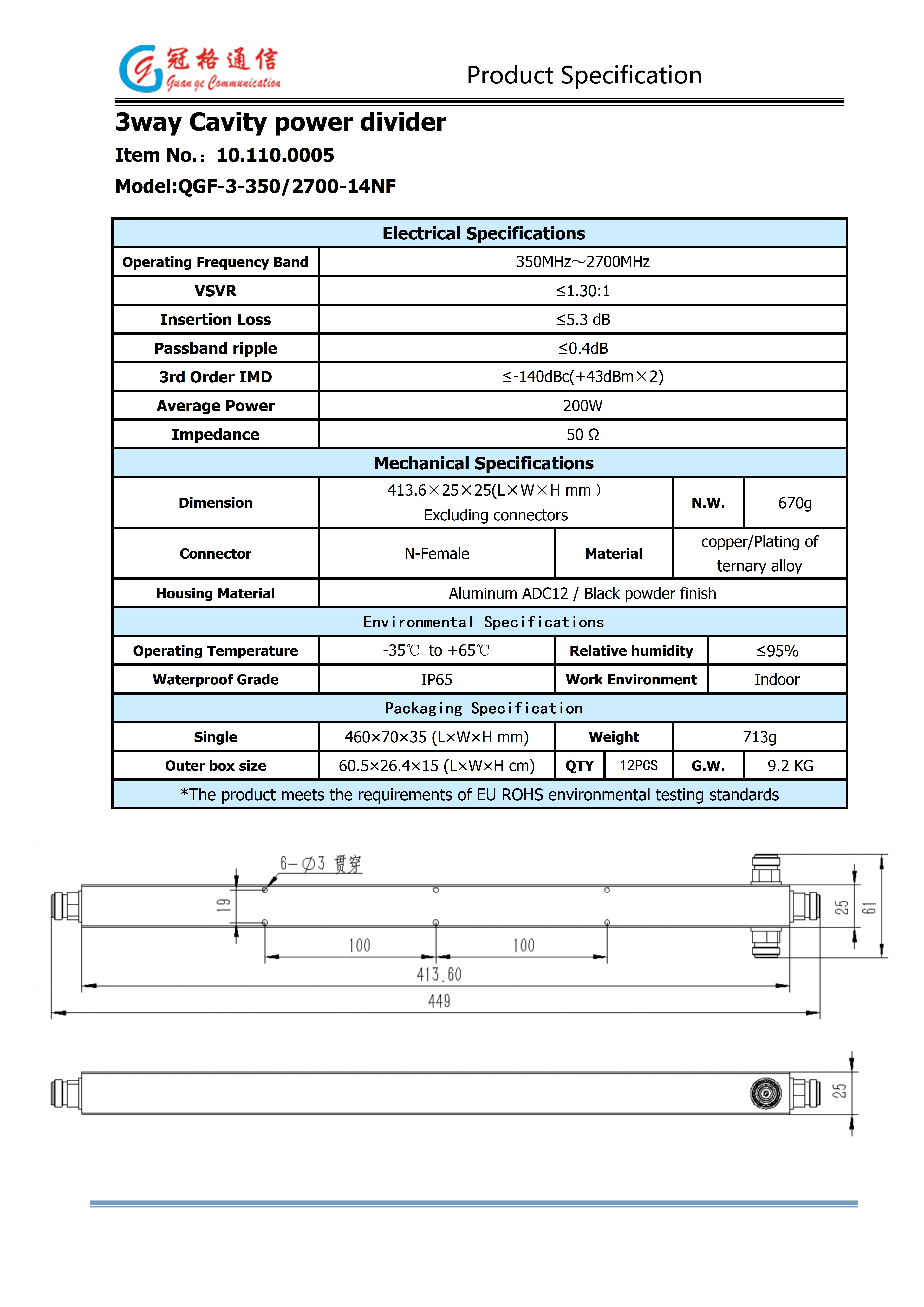

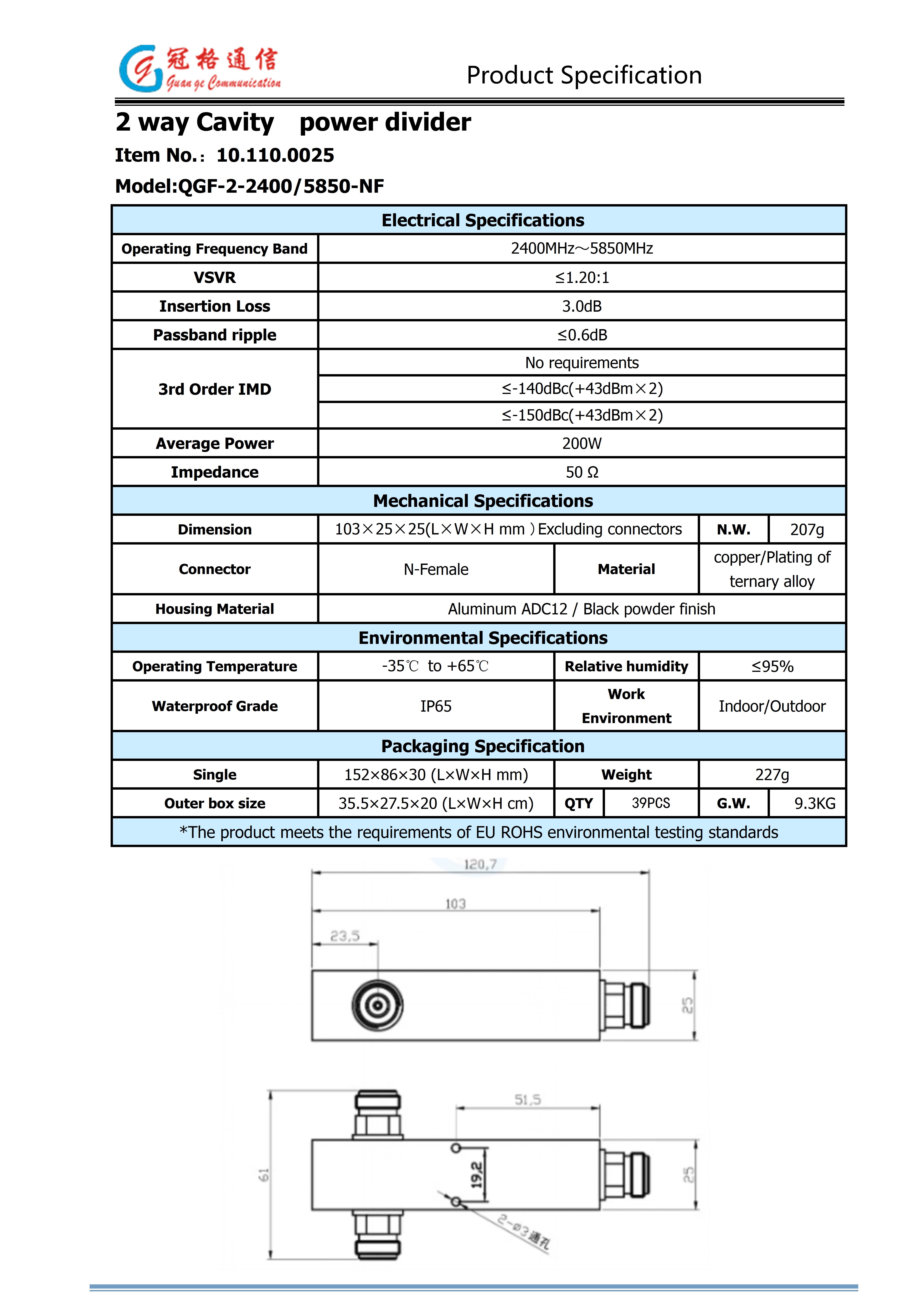

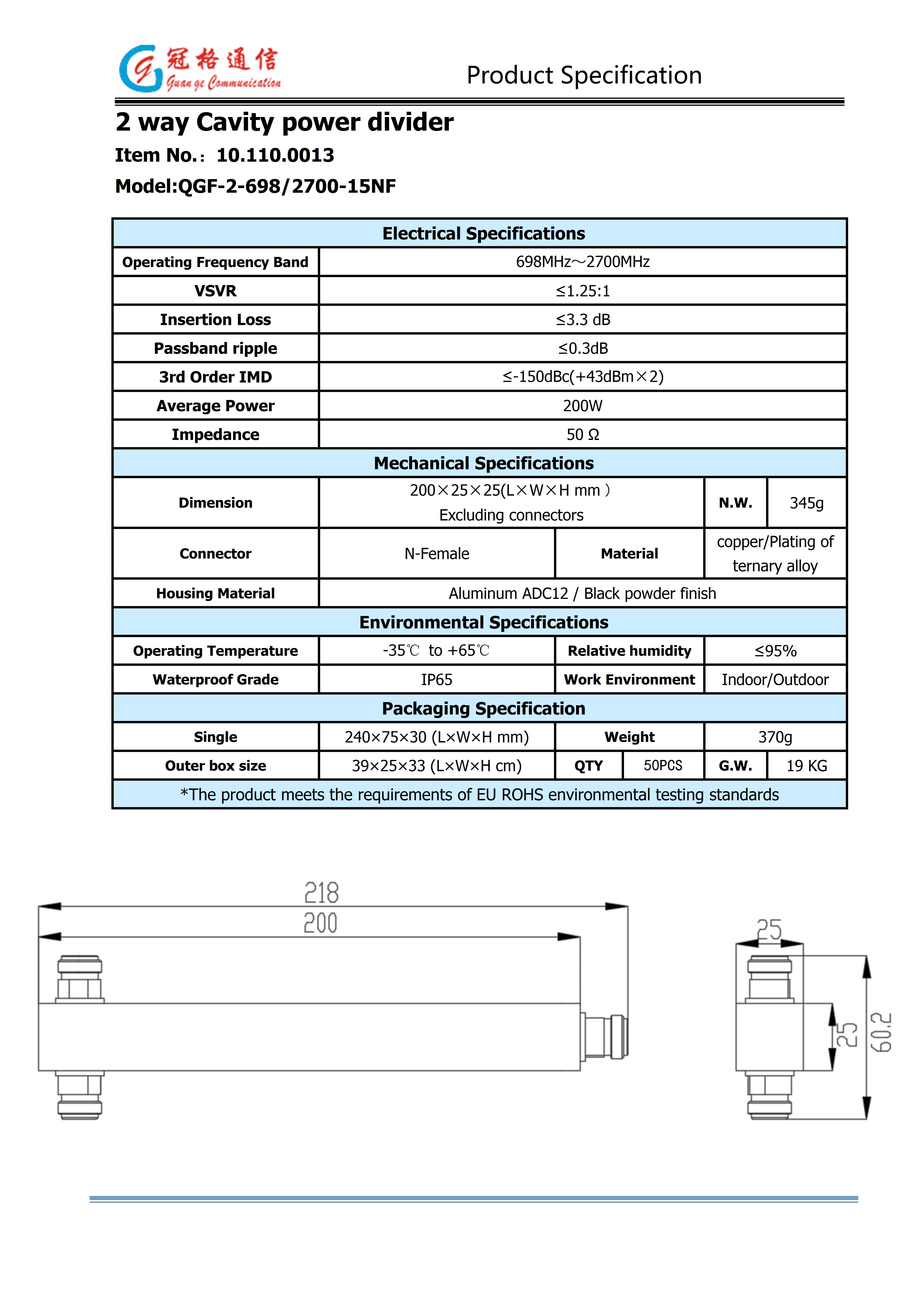

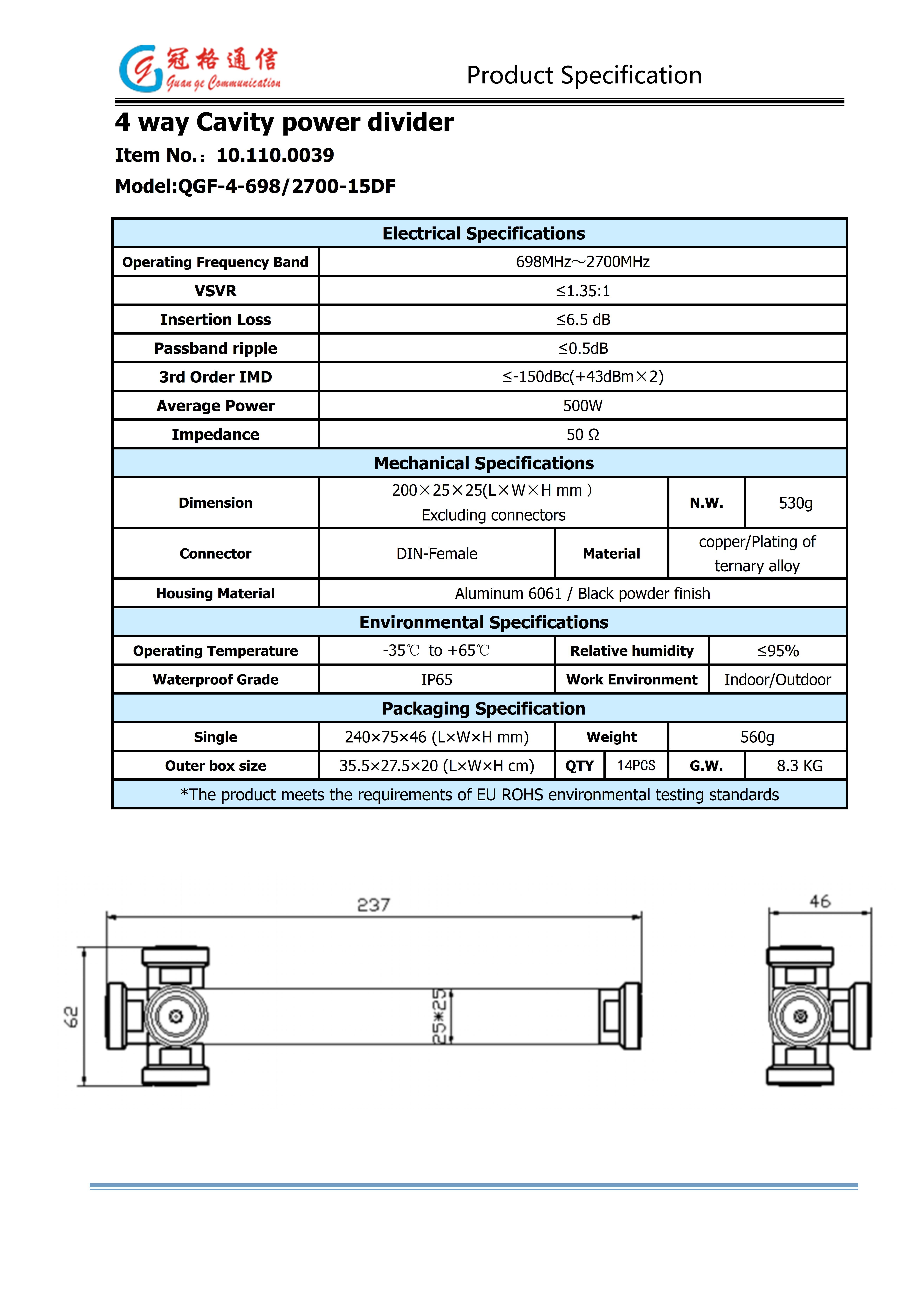

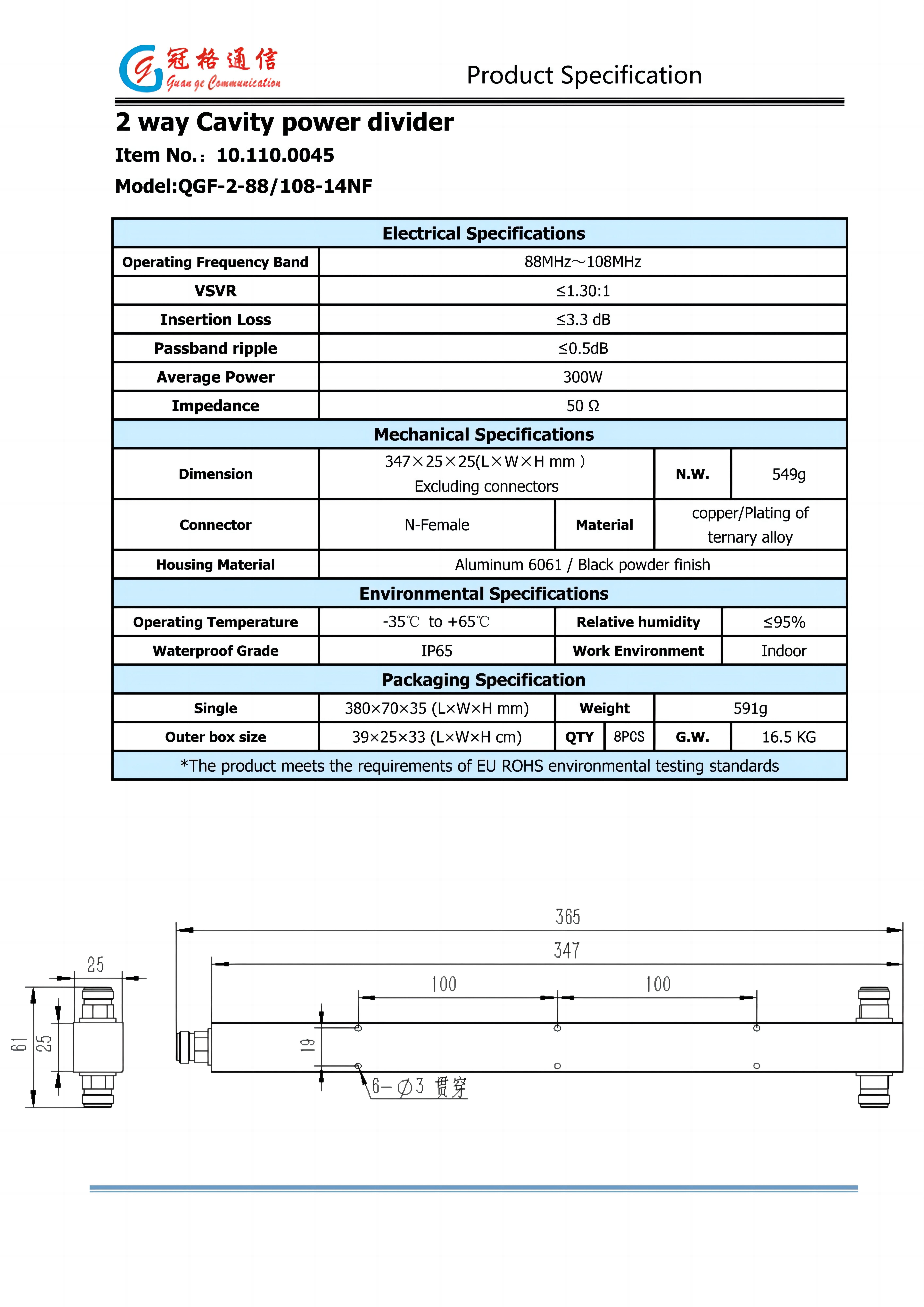

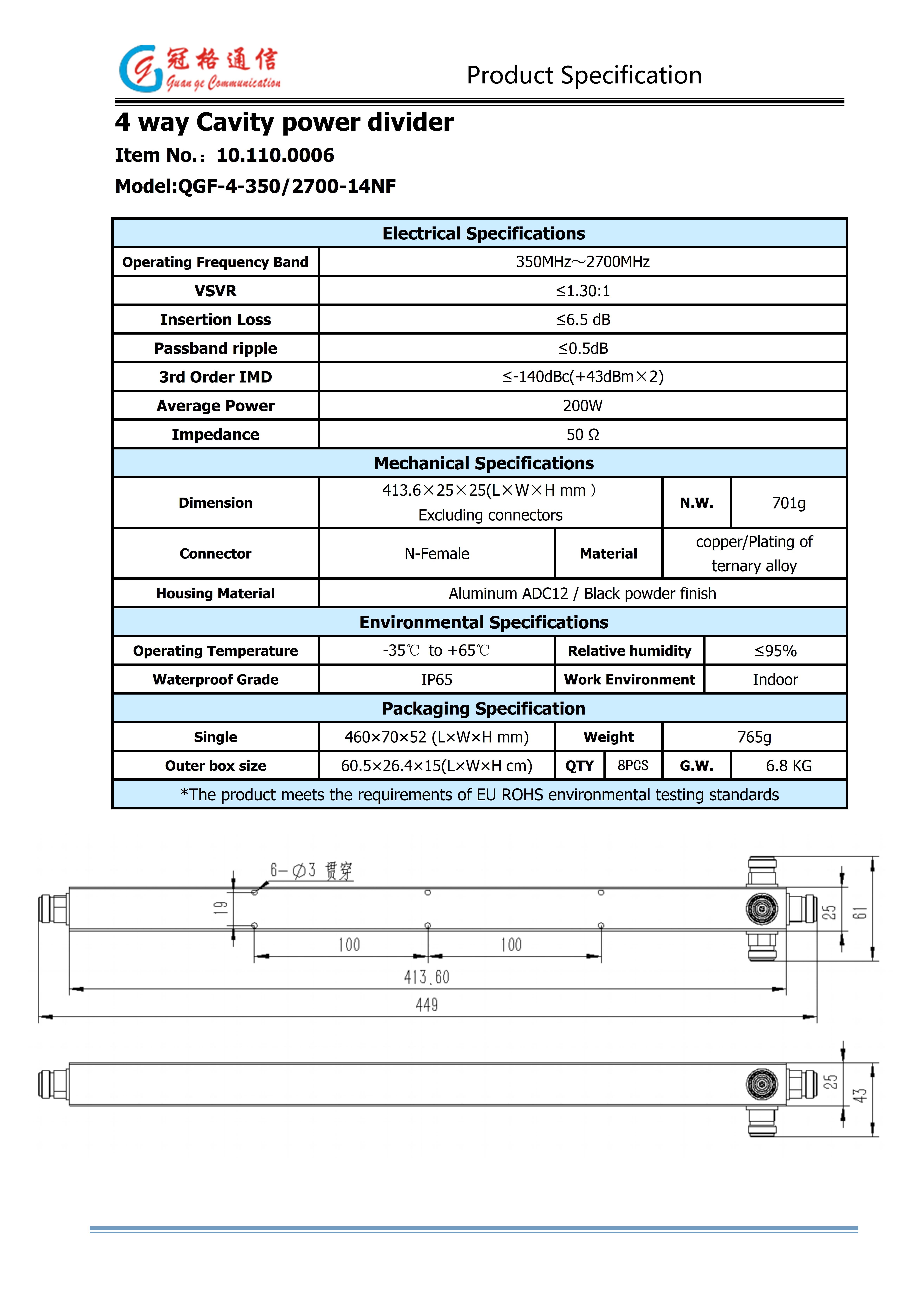

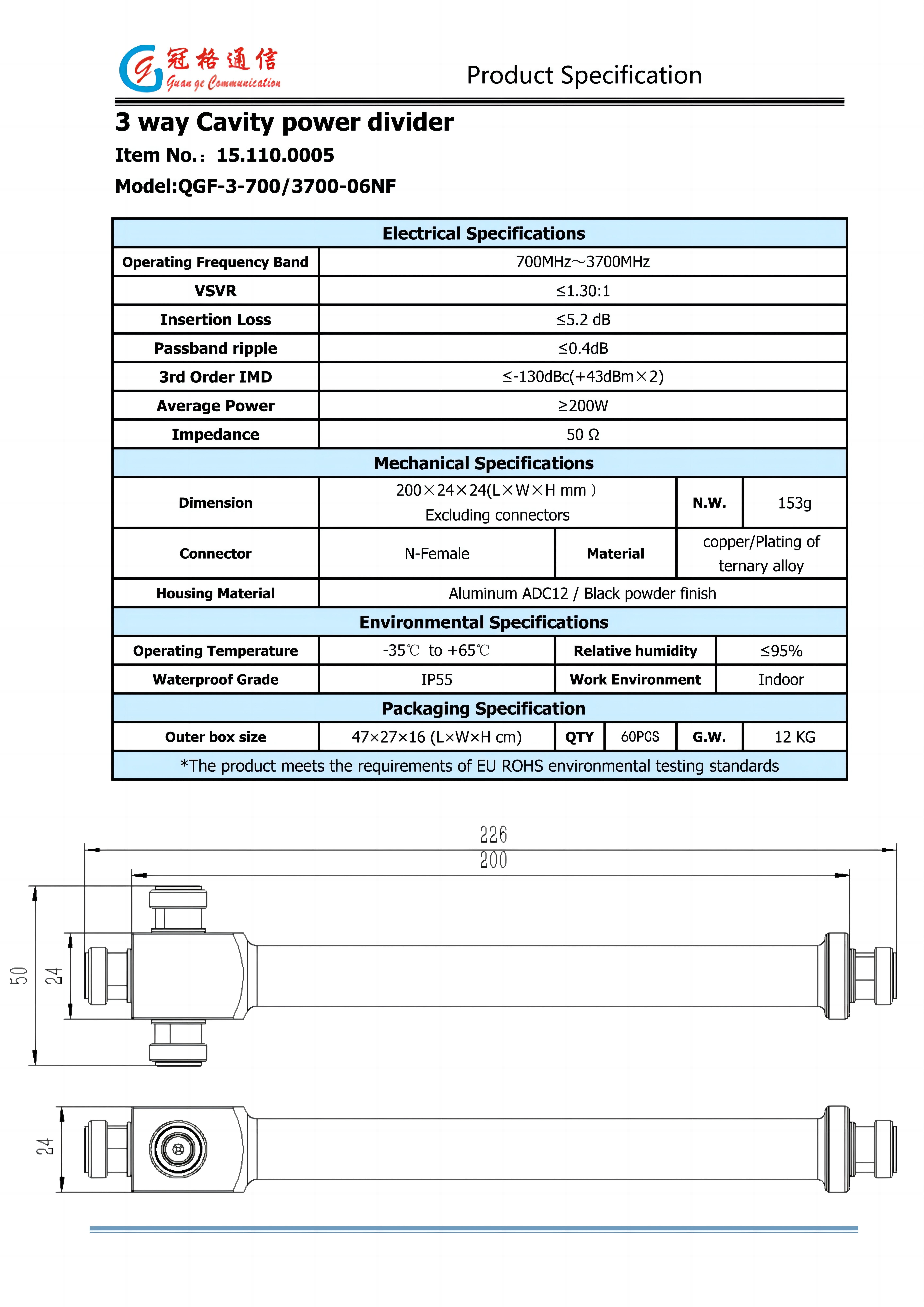

| Product Type | Operating Frequency Band |
Way | VSVR | Insertion Loss | Average Power | Impedance | Connector |

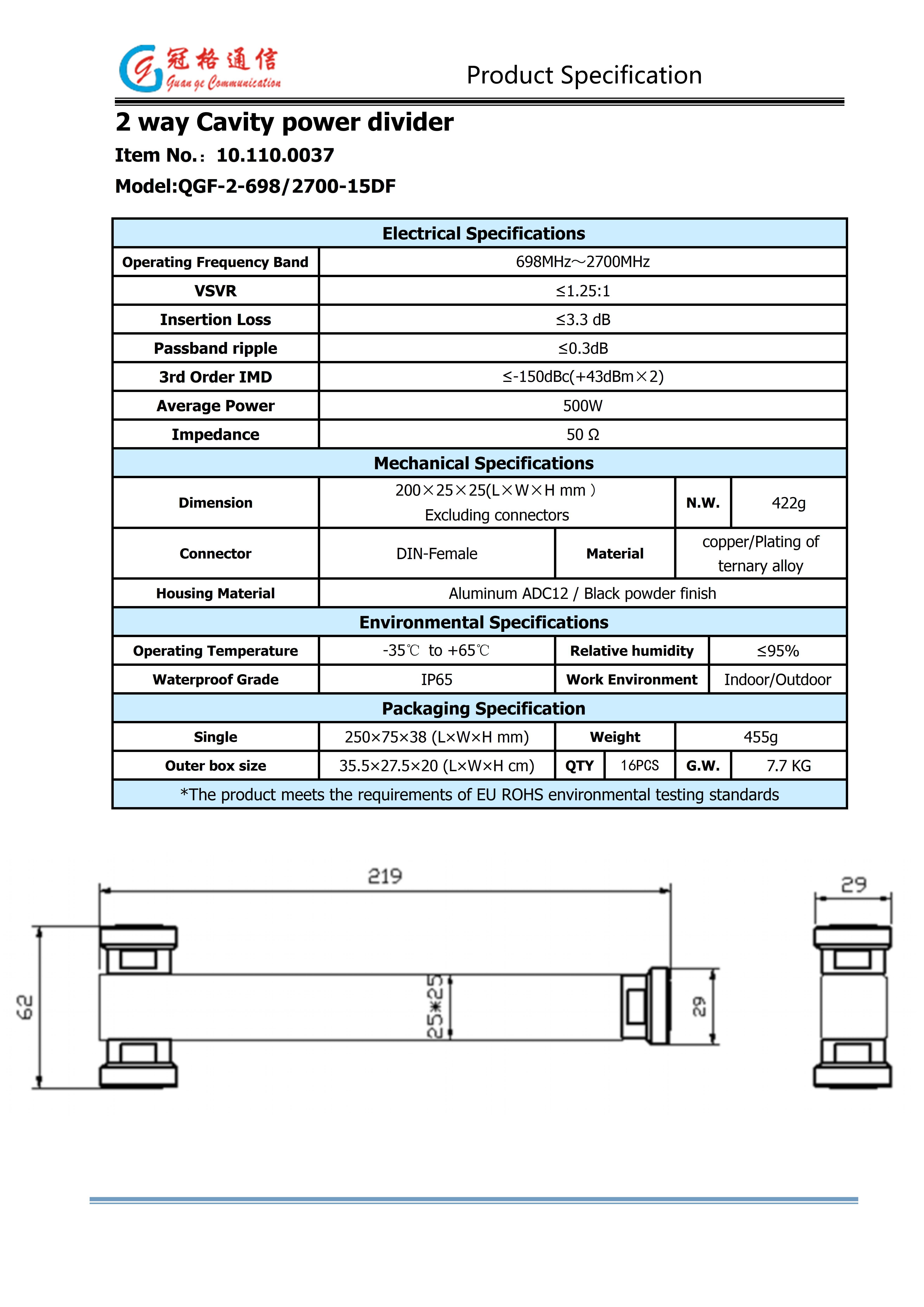

| QGF-2-88/108-14DF | 88MHz-108MHz | 2 | ≤1.30:1 | ≤3.3 dB | 500W | 50Ω | DIN-Female |
| QGF-2-88/108-14NF | 88MHz-108MHz | 2 | ≤1.30:1 | ≤3.3 dB | 300W | 50Ω | N-Female |
| QGF-2-350/520-NF | 350MHz-520MHz | 2 | ≤1.30:1 | ≤0.3 dB | 200W | 50Ω | N-Female |

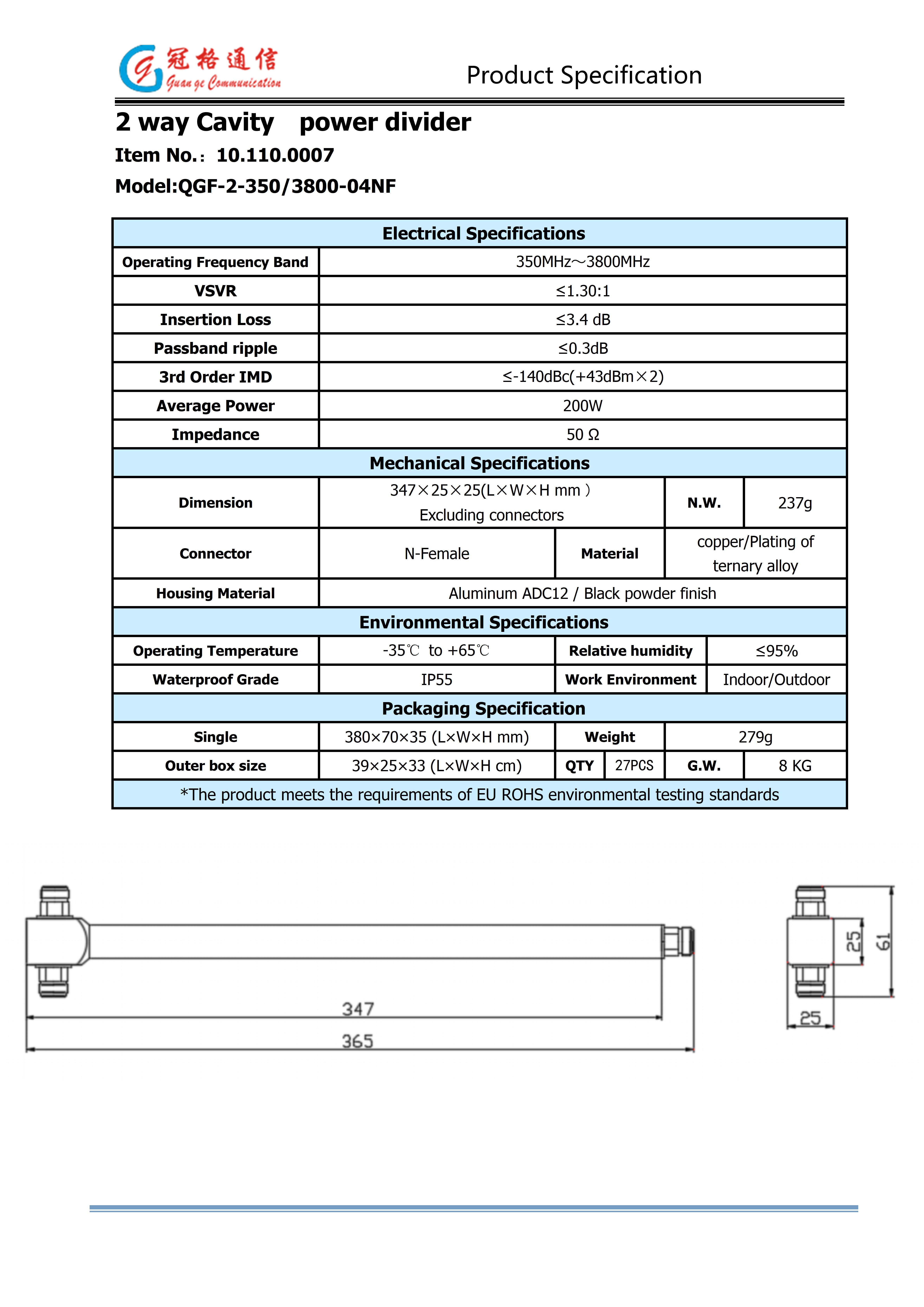

| QGF-2-350/3800-04NF | 350MHz-3800MHz | 2 | ≤1.30:1 | ≤3.4 dB | 200W | 50Ω | N-Female |
| QGF-2-350/3800-14NF | 350MHz-3800MHz | 2 | ≤1.30:1 | ≤3.4 dB | 200W | 50Ω | N-Female |
| QGF-2-698/2700-15DF | 698MHz-2700MHz | 2 | ≤1.25:1 | ≤3.3 dB | 200W | 50Ω | DIN-Female |
| QGF-2-698/2700-15NF | 698MHz-2700MHz | 2 | ≤1.25:1 | ≤3.3 dB | 200W | 50Ω | N-Female |
| QGF-2-698/3800-15DF | 698MHz-3800MHz | 2 | ≤1.30:1 | ≤3.3 dB | 200W | 50Ω | DIN-Female |
| QGF-2-698/3800-15NF | 698MHz-3800MHz | 2 | ≤1.30:1 | ≤3.3 dB | 200W | 50Ω | N-Female |

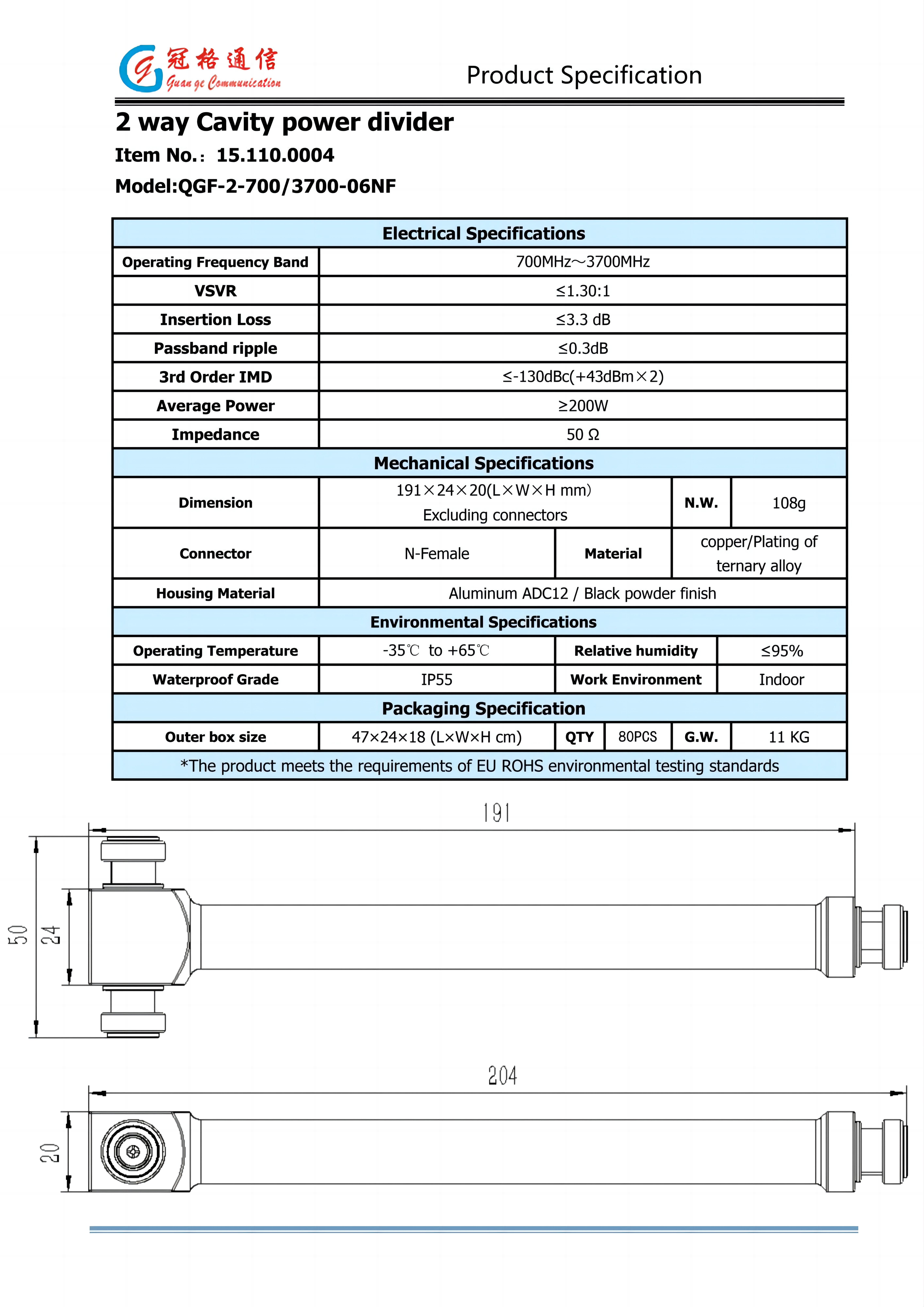

| QGF-2-700/3700-06NF | 700MHz-3700MHz | 2 | ≤1.30:1 | ≤3.3 dB | 200W | 50Ω | N-Female |
| QGF-2-2400/5850-NF | 2400MHz-5850MHz | 2 | ≤1.20:1 | ≤0.6 dB | 200W | 50Ω | N-Female |
| QGF-3-350/520-NF | 350MHz-520MHz | 3 | ≤1.30:1 | ≤0.4 dB | 200W | 50Ω | N-Female |
| QGF-3-350/2700-04NF | 350MHz-2700MHz | 3 | ≤1.30:1 | ≤5.3 dB | 200W | 50Ω | N-Female |
| QGF-3-350/2700-14NF | 350MHz-2700MHz | 3 | ≤1.30:1 | ≤5.3 dB | 200W | 50Ω | N-Female |

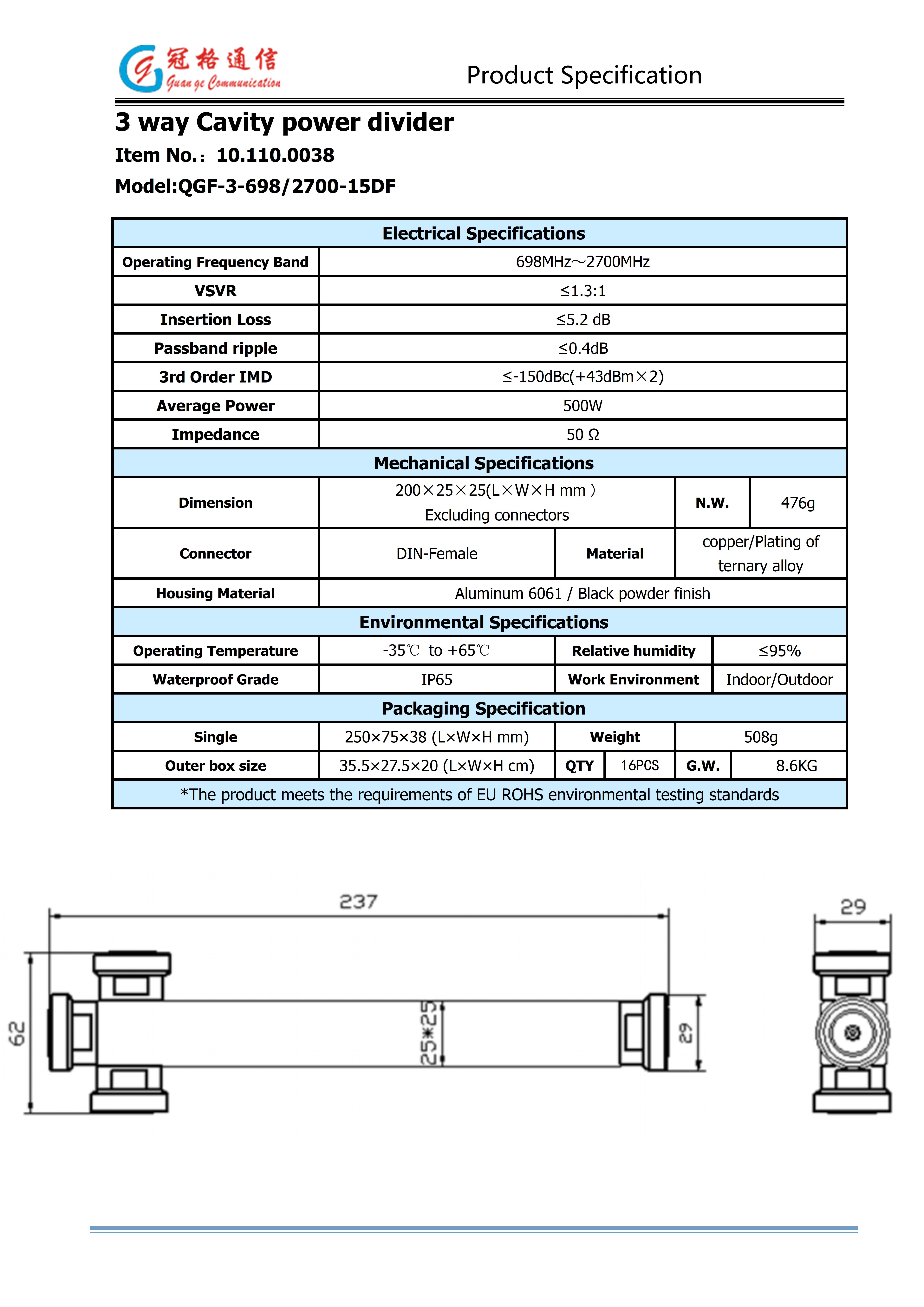

| QGF-3-698/2700-15DF | 698MHz-2700MHz | 3 | ≤1.30:1 | ≤5.2 dB | 200W | 50Ω | DIN-Female |
| QGF-3-698/2700-15NF | 698MHz-2700MHz | 3 | ≤1.30:1 | ≤5.2 dB | 200W | 50Ω | N-Female |
| QGF-3-698/3800-15DF | 698MHz-3800MHz | 3 | ≤1.30:1 | ≤5.2 dB | 200W | 50Ω | DIN-Female |

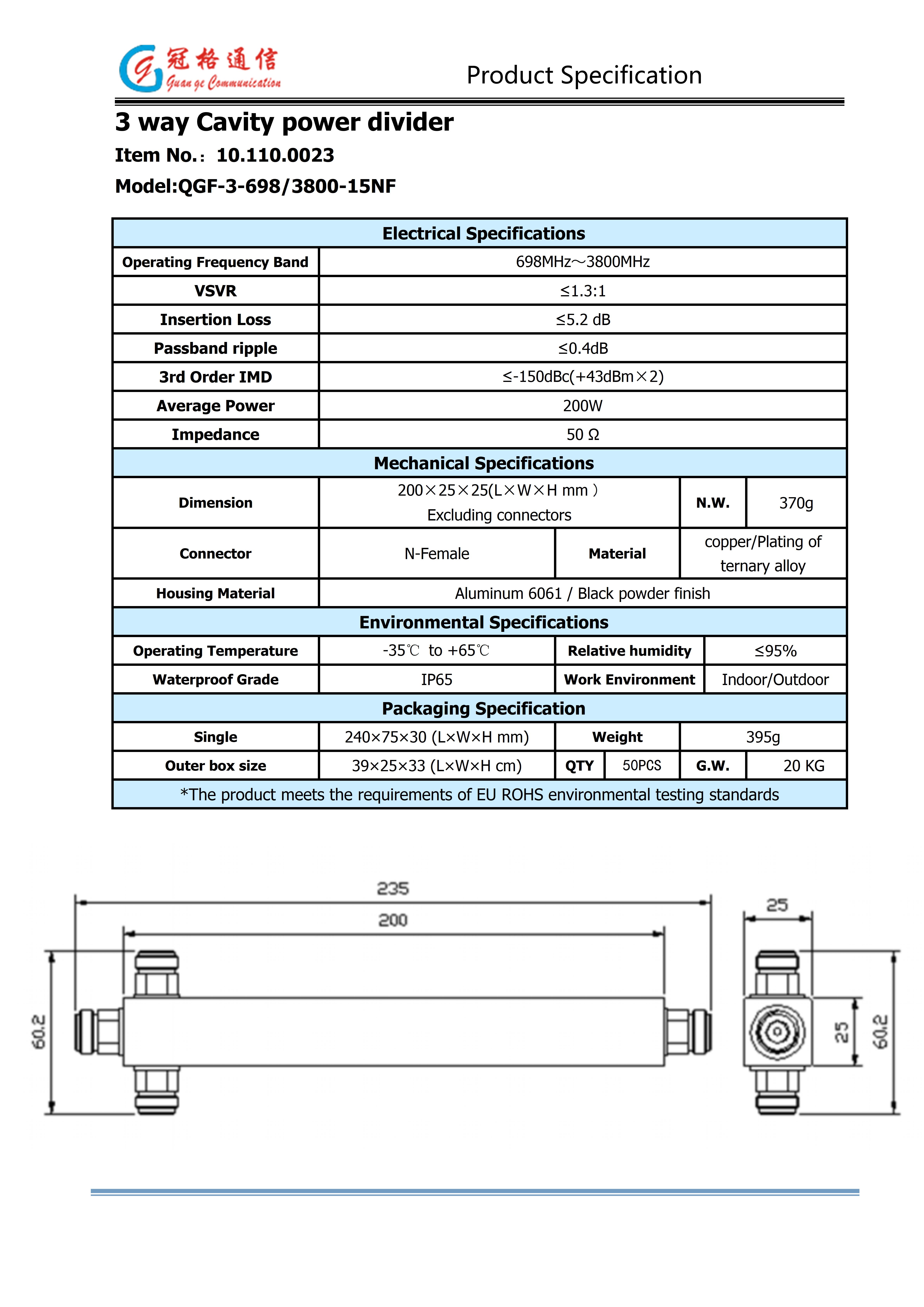

| QGF-3-698/3800-15NF | 698MHz-3800MHz | 3 | ≤1.30:1 | ≤5.2 dB | 200W | 50Ω | N-Female |
| QGF-3-700/3700-06NF | 700MHz-3700MHz | 3 | ≤1.30:1 | ≤5.2 dB | 200W | 50Ω | N-Female |

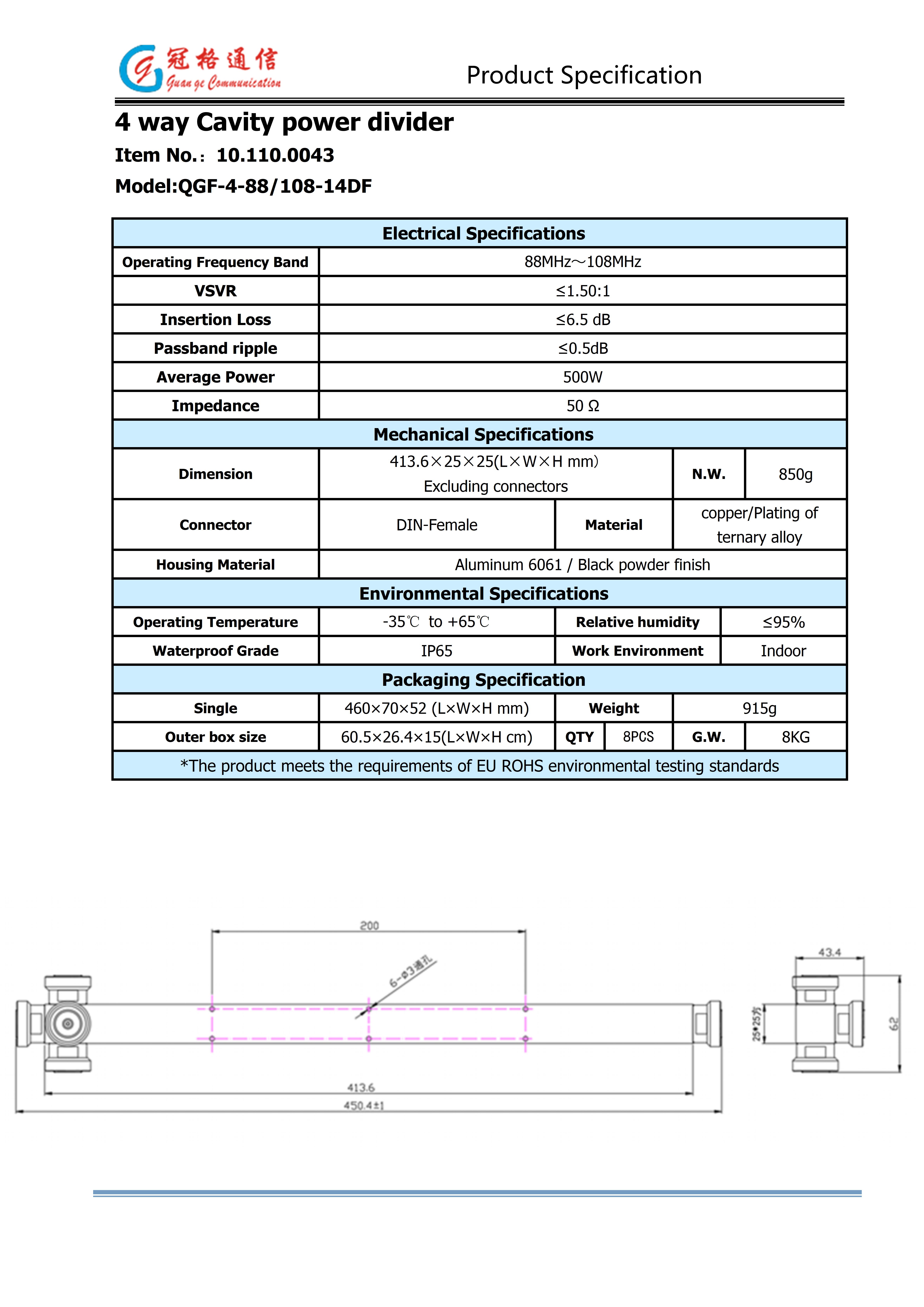

| QGF-4-88/108-14DF | 88MHz-108MHz | 4 | ≤1.50:1 | ≤6.5 dB | 500W | 50Ω | DIN-Female |
| QGF-4-88/108-14NF | 88MHz-108MHz | 4 | ≤1.50:1 | ≤6.5 dB | 300W | 50Ω | N-Female |
| QGF-4-350/520-NF | 350MHz-520MHz | 4 | ≤1.30:1 | ≤0.5 dB | 200W | 50Ω | N-Female |

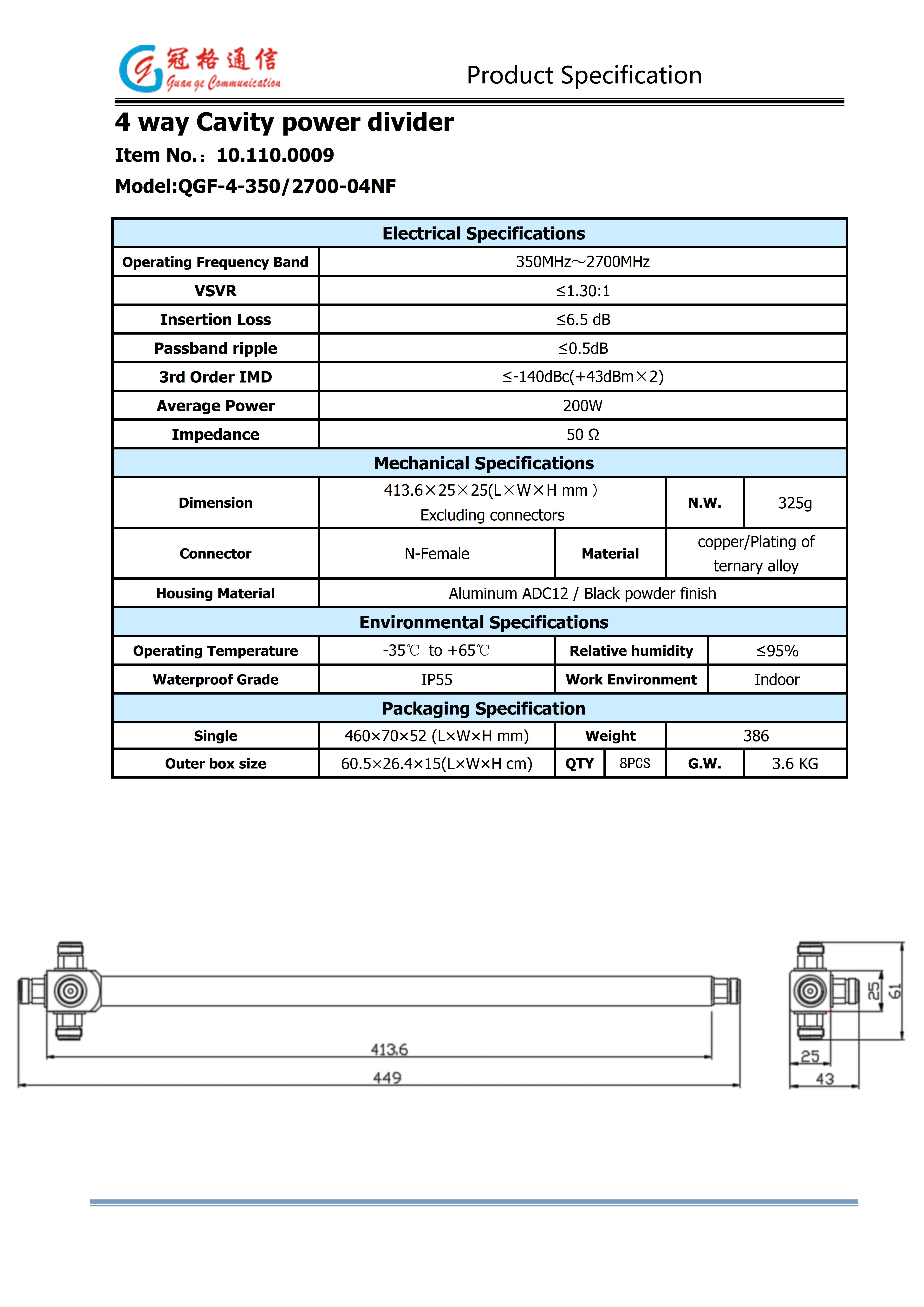

| QGF-4-350/2700-04NF | 350MHz-2700MHz | 4 | ≤1.30:1 | ≤6.5 dB | 200W | 50Ω | N-Female |
| QGF-4-350/2700-14NF | 350MHz-2700MHz | 4 | ≤1.30:1 | ≤6.5 dB | 200W | 50Ω | N-Female |
| QGF-4-698/2700-15DF | 698MHz-2700MHz | 4 | ≤1.35:1 | ≤6.5 dB | 200W | 50Ω | DIN-Female |
| QGF-4-698/2700-15NF | 698MHz-2700MHz | 4 | ≤1.30:1 | ≤6.5 dB | 200W | 50Ω | N-Female |
| QGF-4-698/3800-15DF | 698MHz-3800MHz | 4 | ≤1.30:1 | ≤6.5 dB | 200W | 50Ω | DIN-Female |

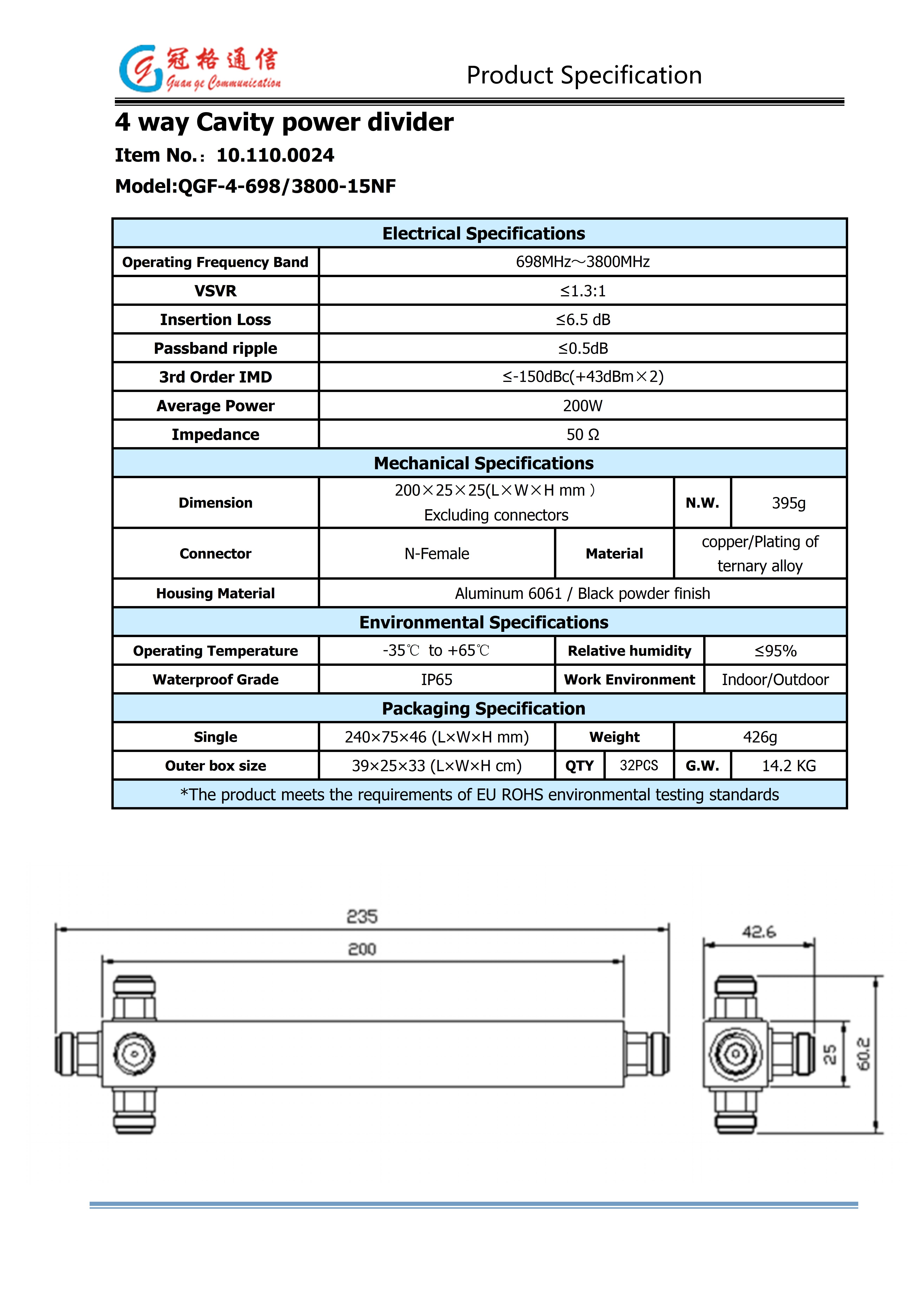

| QGF-4-698/3800-15NF | 698MHz-3800MHz | 4 | ≤1.30:1 | ≤6.5 dB | 200W | 50Ω | N-Female |
| QGF-4-700/3700-06NF | 700MHz-3700MHz | 4 | ≤1.30:1 | ≤6.5 dB | 200W | 50Ω | N-Female |
